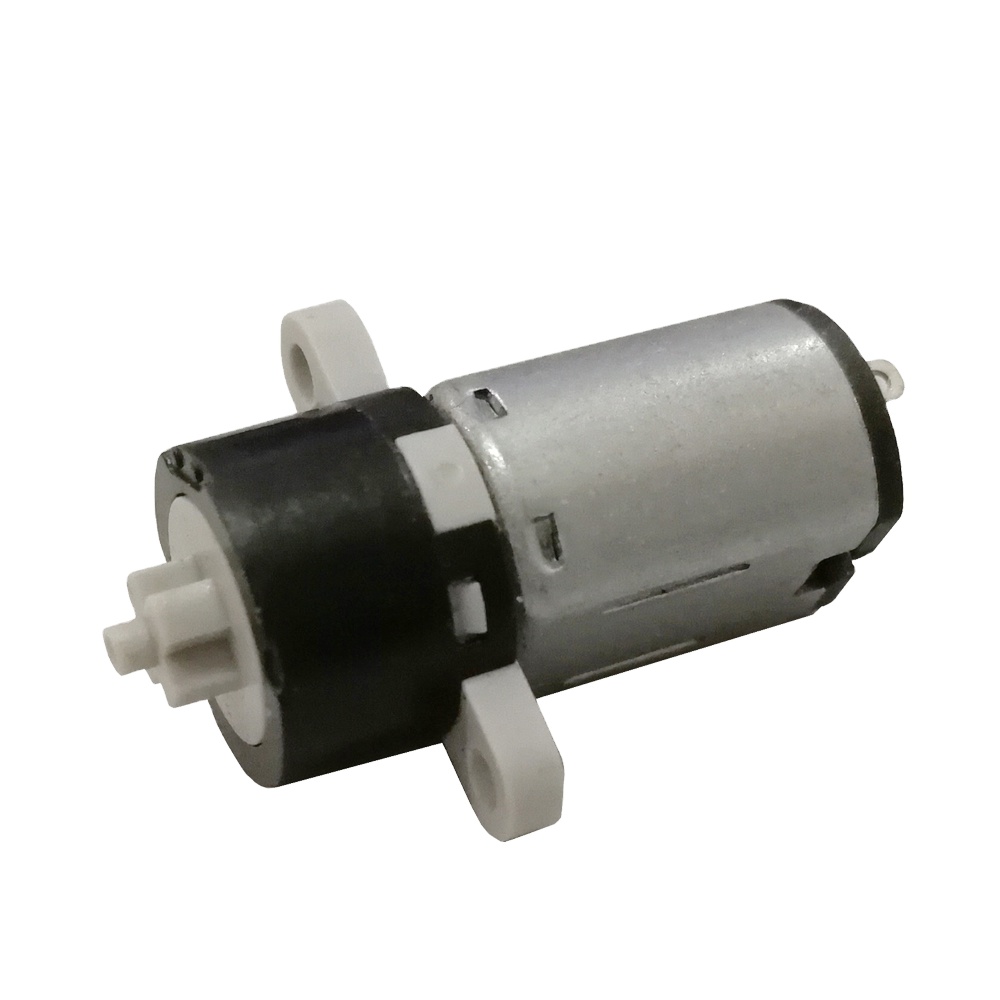

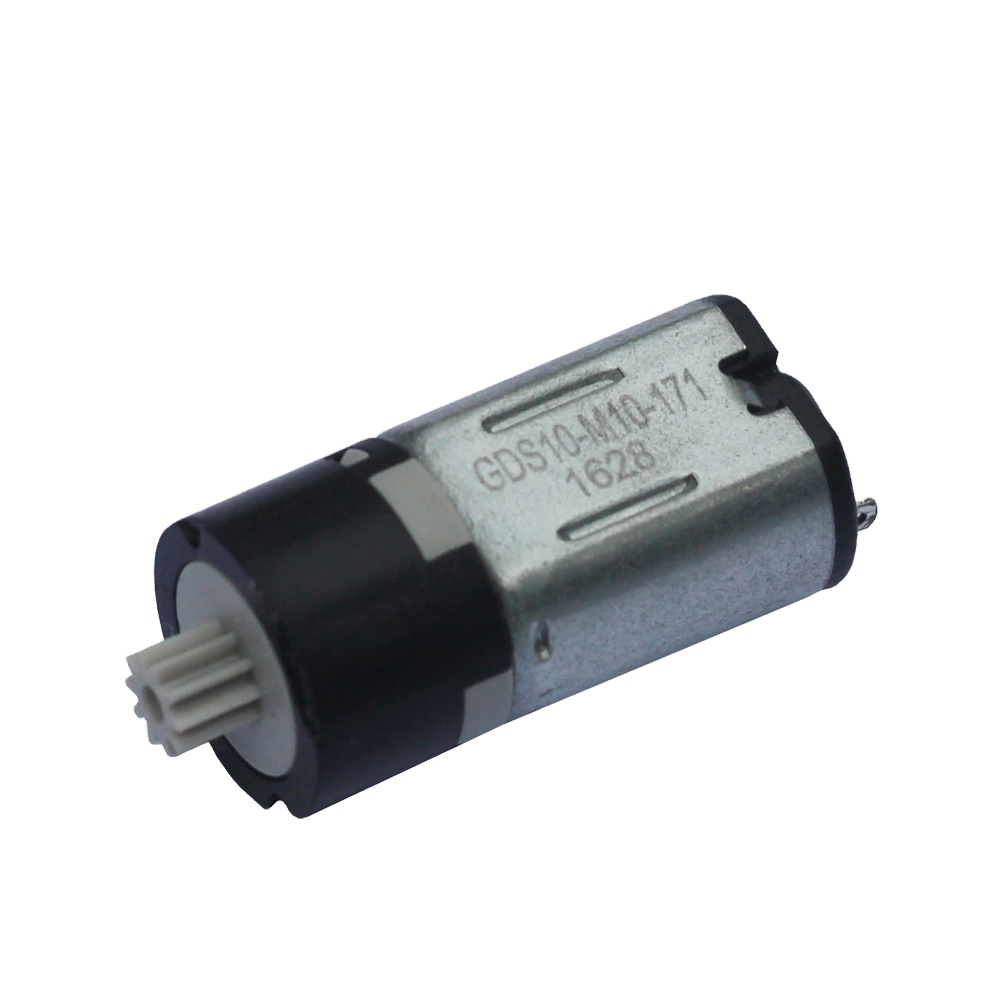

1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1 / 4
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor

1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor

Send Inquiry

Product Description

Product Description
Model Number DH-M1012GA171 Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification ROHS, ISO Type Gear Motor
Torque 165 G.cm Construction Permanent Magnet
Commutation Brush Protect Feature Drip-proof
Speed(RPM) 40 RPM Continuous Current(A) 0.12A
Output Power 0.2 W Voltage(V) 1.5 v
Efficiency IE 1 Weight 8g
No Load Speed 45 rpm Max Efficiency 68.3%
Packaging & Shipping
Packaging Details 1000PCS/CTN, standard export packing.
Delivery Detail Within 25 days
Technical Specifications & Performance

DC Motor, DC Gear Motor, DC Brushless Motor

  • 10mm diameter plastic gearbox
  • Voltage: 1.5v - 24v
  • Speed: 30-50rpm, Torque: 10-40g.cm
  • Quiet operation and long lifespan
  • ROHS Compliant

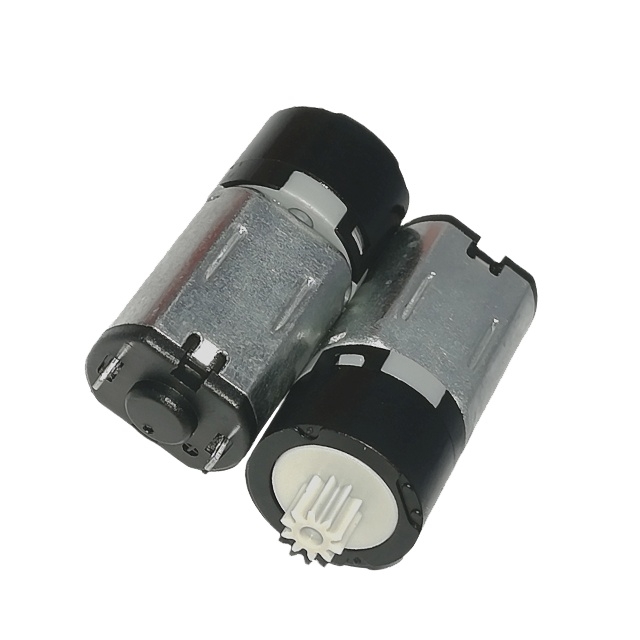

Gear Motor View 1

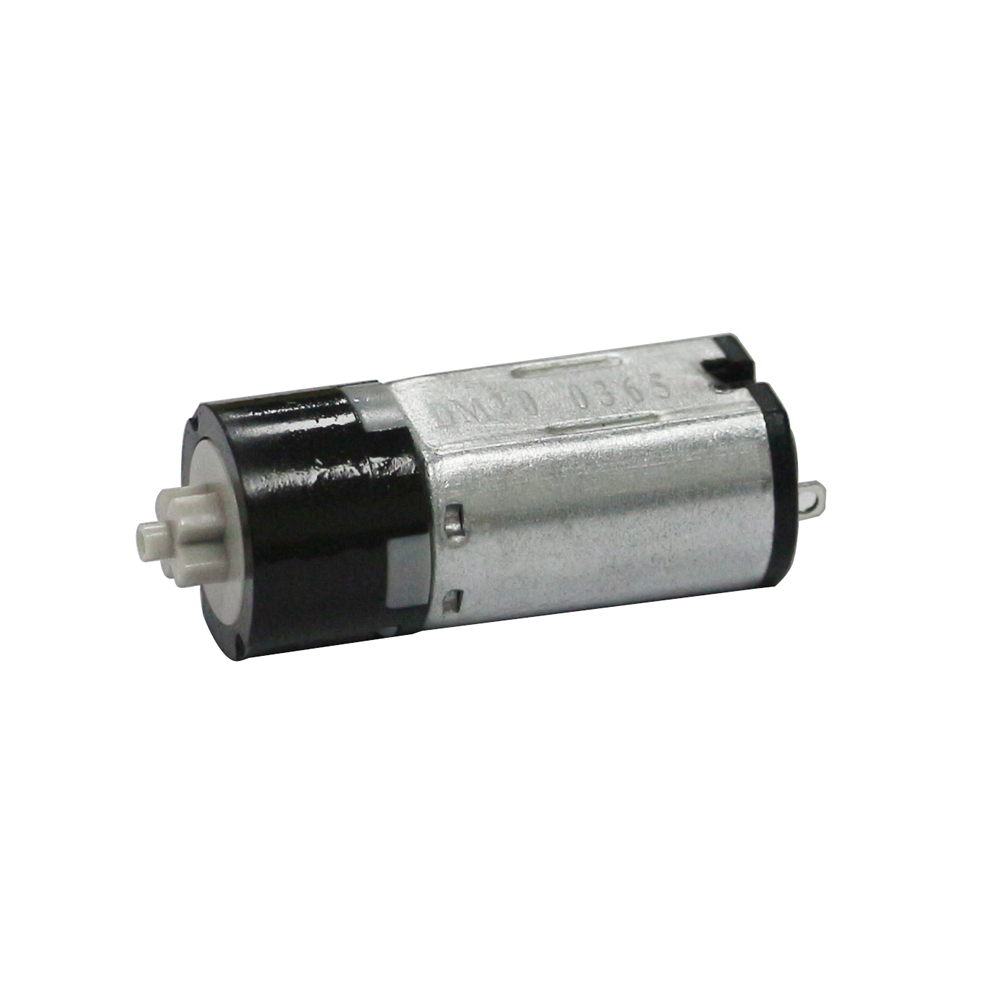

Gear Motor View 2

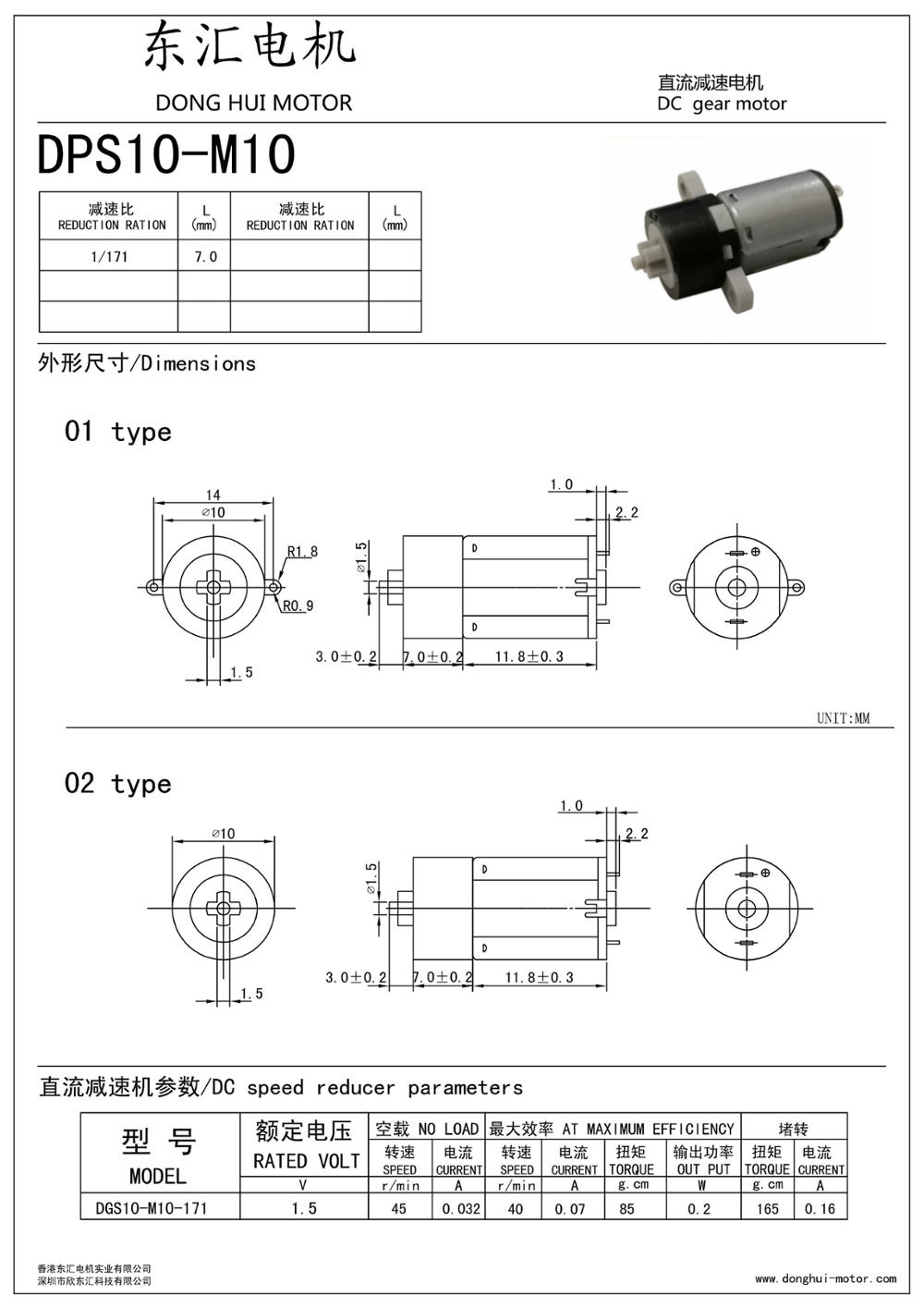

Technical Drawing

Note: Above data is for reference only. Specifications such as voltage, speed, torque, and shaft can be customized.

Operating Environment & Applications
Applications Audio and visual products, high-end toys, personal health care products, security equipment, massager, robot, mascara, camera.
Environment Operating Temperature: -10~+60°C
Humidity Range: 15~90%RH
Product Gallery

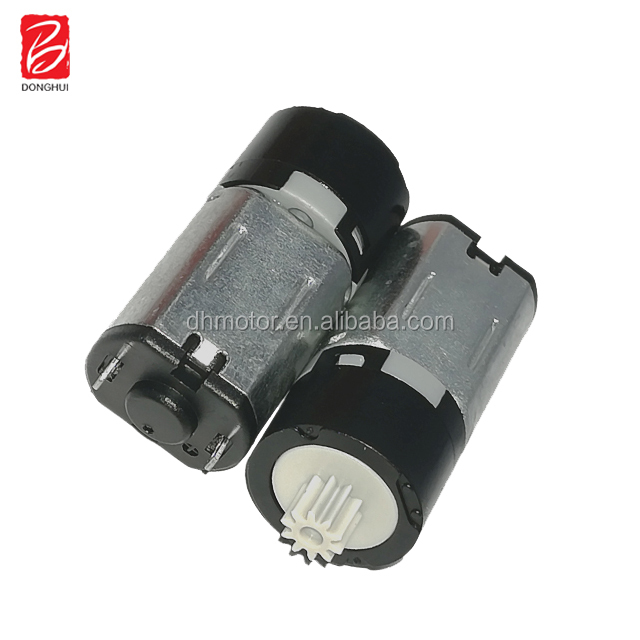

1.5v 10mm mini dc motor

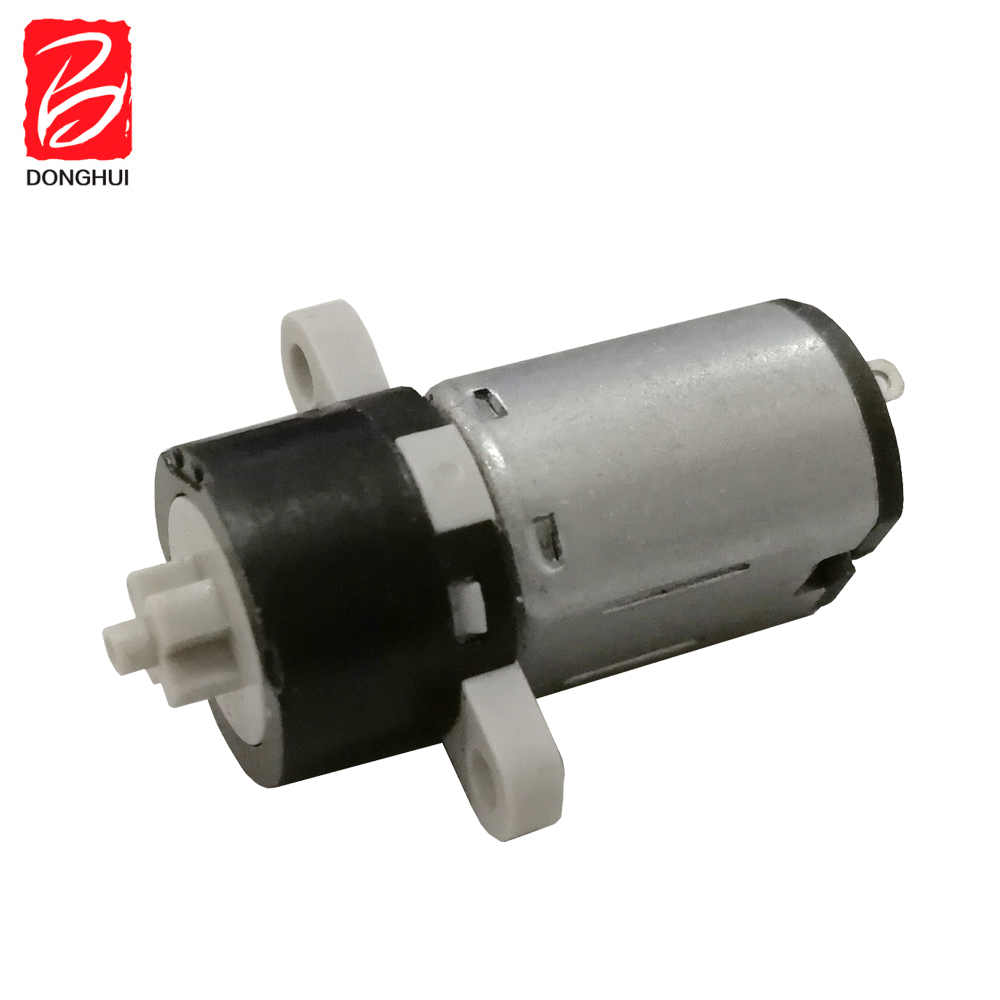

1.5v 10mm mini dc motor detail
Manufacturing Expertise
Factory Overview
Production Line
Quality Control

Established in 2003, we are committed to the development and production of micro motors across four major series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. Our products are widely used in consumer electronics, household appliances, office automation, medical equipment, and automotive fields.

  • Product range: Diameter 4mm - 100mm
  • Voltage options: DC 1.5V - 42V (AC Rectify: 110V/220V)
  • Speed range: 1 RPM - 30,000 RPM
  • Stall torque: 1g.cm - 30kg.cm
Frequently Asked Questions (FAQ)
Q1: Can the motor specifications be customized?
Yes, technical data such as voltage, speed, torque, and shaft dimensions can be customized to meet your specific requirements.
Q2: What is the typical lead time for delivery?
Standard delivery is generally within 25 days, depending on the order quantity and customization requirements.
Q3: What are the main applications for the 10mm gear motor?
It is widely used in high-end toys, personal care products (like mascara or massagers), security equipment, and robotics.
Q4: What is the operating temperature range?
The motor is designed to operate efficiently within a temperature range of -10°C to +60°C.
Q5: Is the product environmentally compliant?
Yes, our motors are ROHS and ISO certified, ensuring high quality and environmental safety standards.
Q6: What is the weight and size of this mini motor?
The motor is extremely compact with a 10mm diameter gearbox and weighs approximately 8g, making it ideal for precision instruments.
