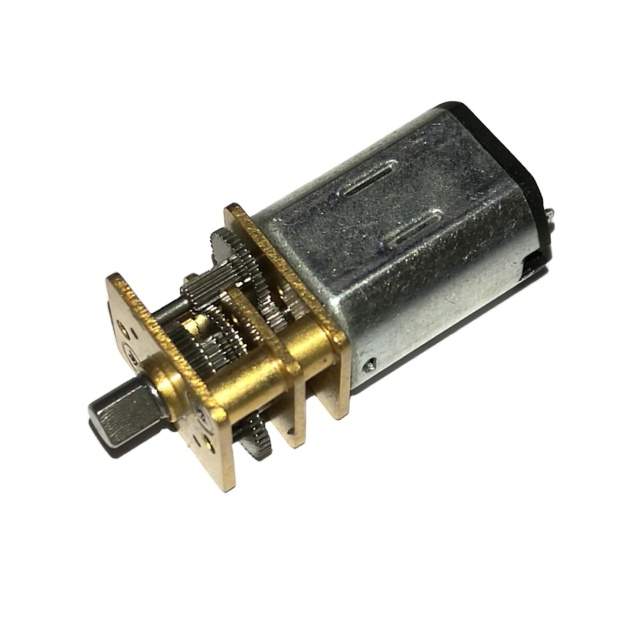

Affordable Customized 12V 6V 75RPM Mini Electric Metal Boat Gear Motor N20 Model DGA12-N20 with Gearwheel for Global B2B Buyers

Permanent Magnet GM12 DC Gear Motor 145RPM 3V 800g.cm

10mm shaft D2.5mm N20 door lock robot micro geared motor

🚀 Stock Offer: This motor is for promotion only with limited quantity.

⚙️ Specifications: Motor voltage, speed, torque, and shaft specifications are fixed and cannot be changed.

📦 MOQ: Minimum order quantity is 5 pcs. Pricing for large orders is negotiable.

🛠️ Customization: If these specifications do not meet your needs, please contact us for custom data at standard pricing.

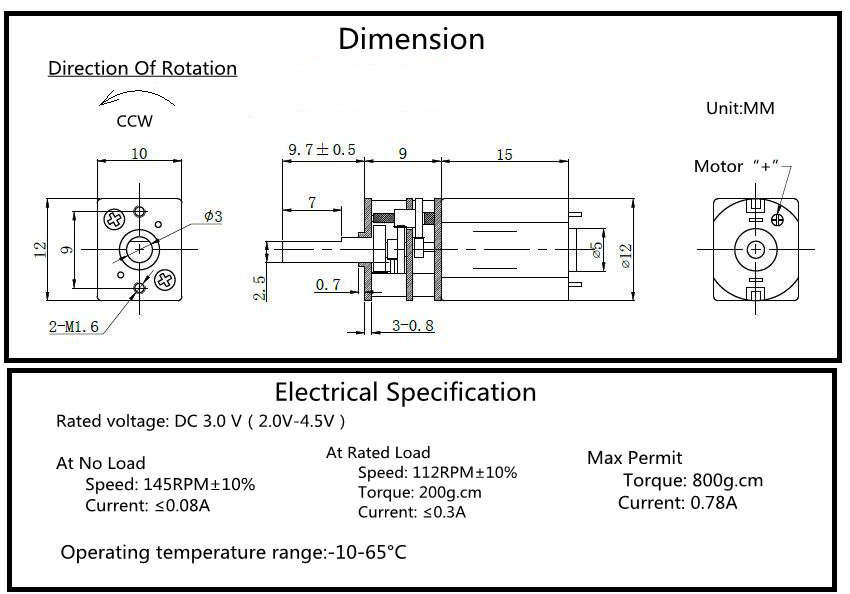

Technical Specification

Item	Micro Gear Motor

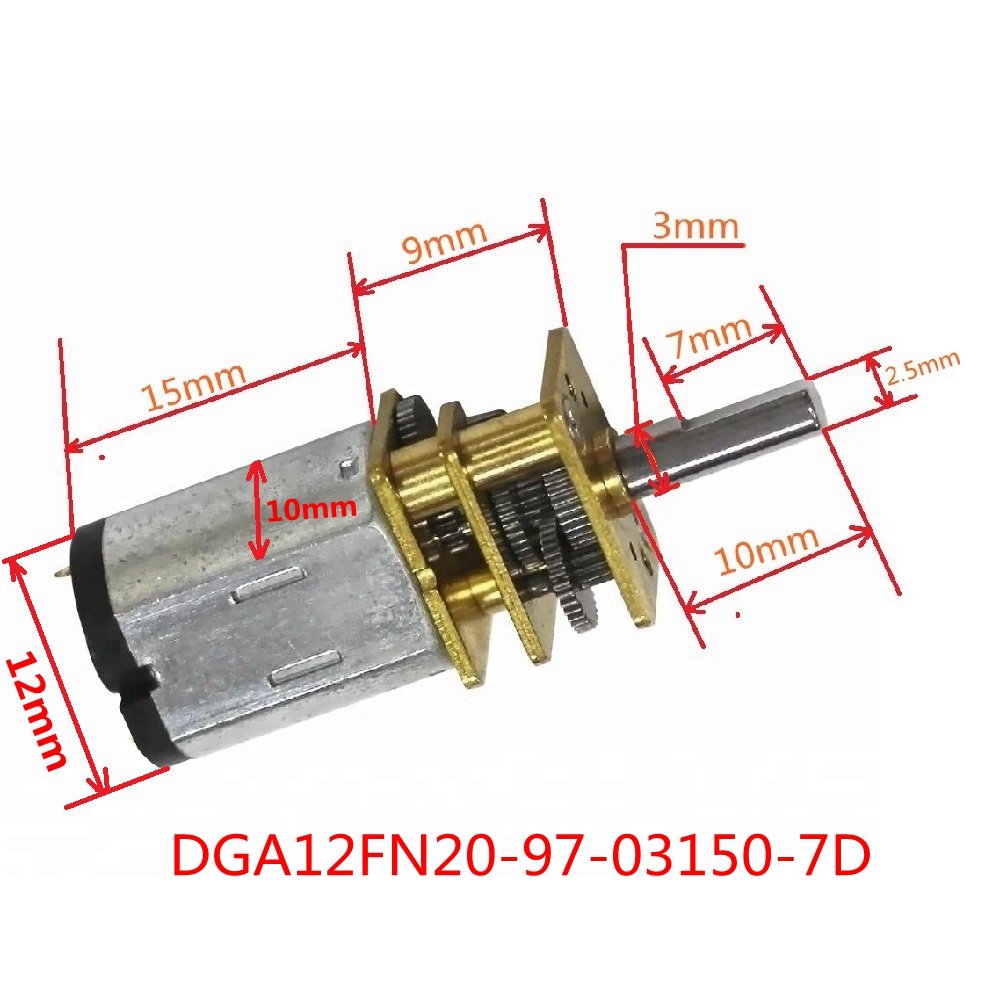

Size	D10mm * 12mm * L24mm
Rated Voltage	DC 3.0 V
Working Voltage Range	DC 2.0 V ~ DC 4.0 V
Unload Speed	145 rpm ± 10%
Unload Current	60mA
Rated Speed	112 rpm ± 10%
Rated Torque	200g.cm
Rated Current	≤320mA
Max Current	≤800mA
Max Torque	≤3500g.cm
Wattage	0.29 watt
Application	Robot, Lock, Toys, Electric power tool

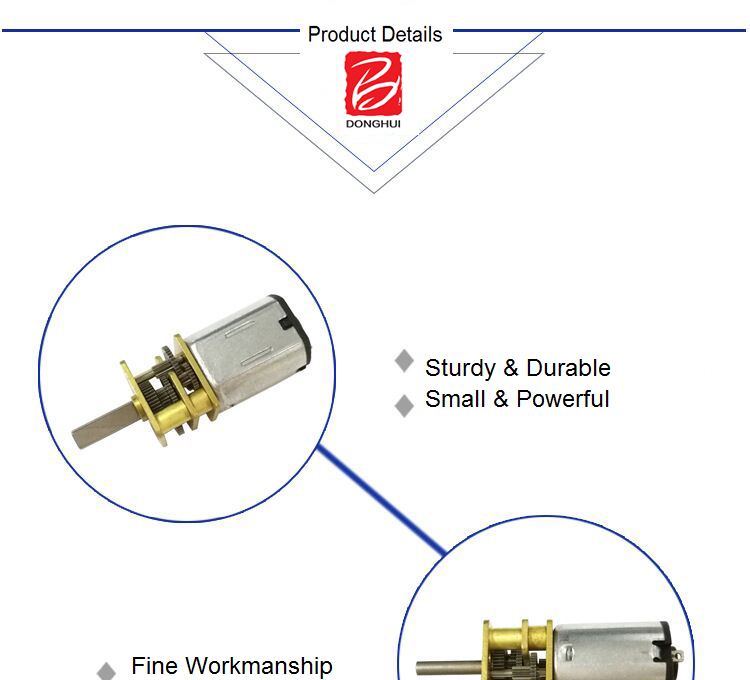

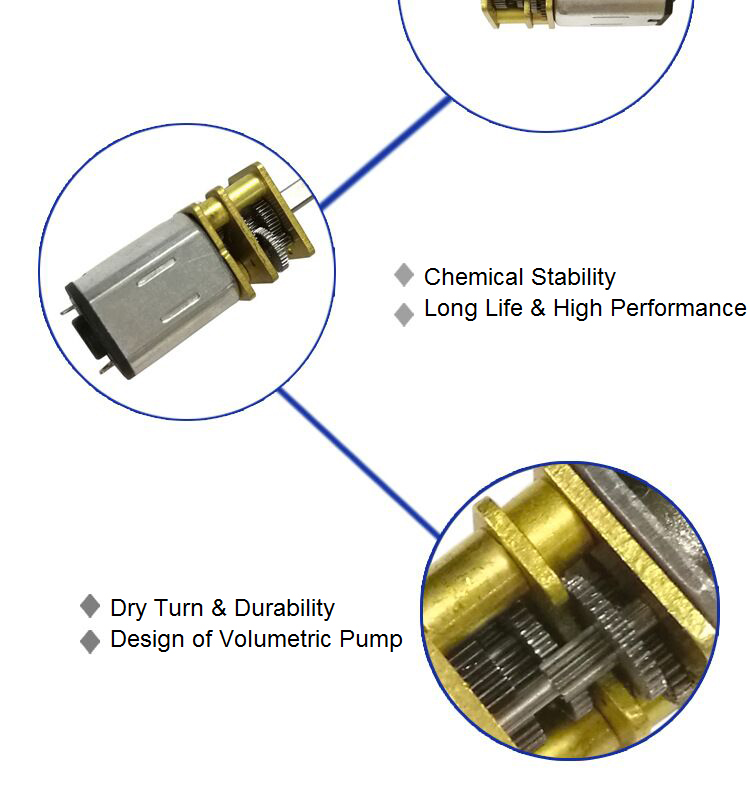

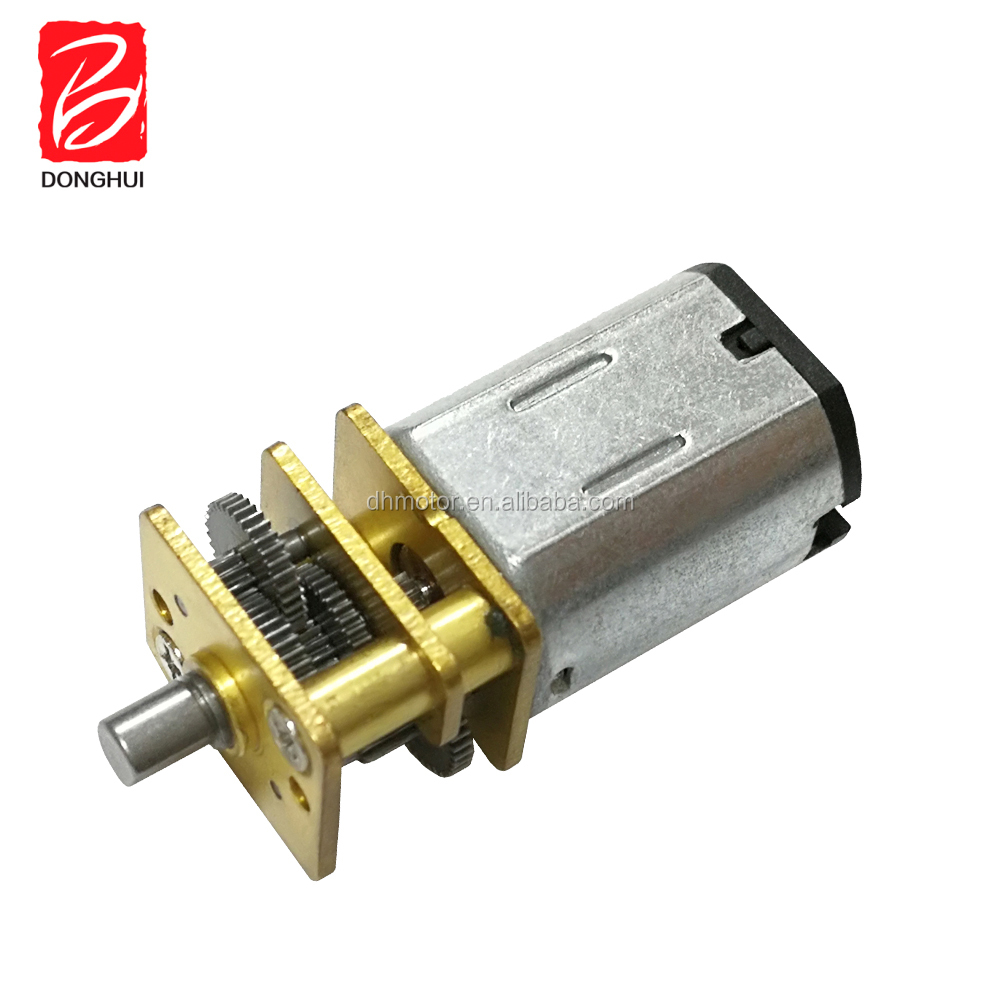

Product Display

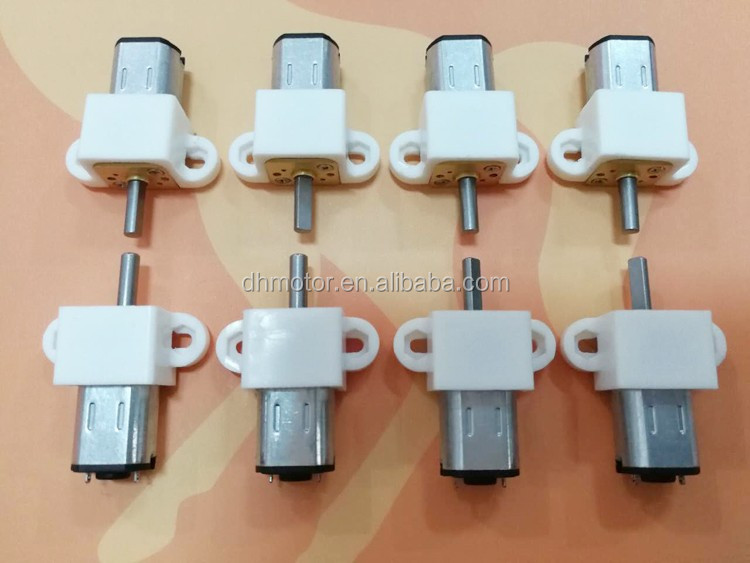

Rated & Specialized Variants

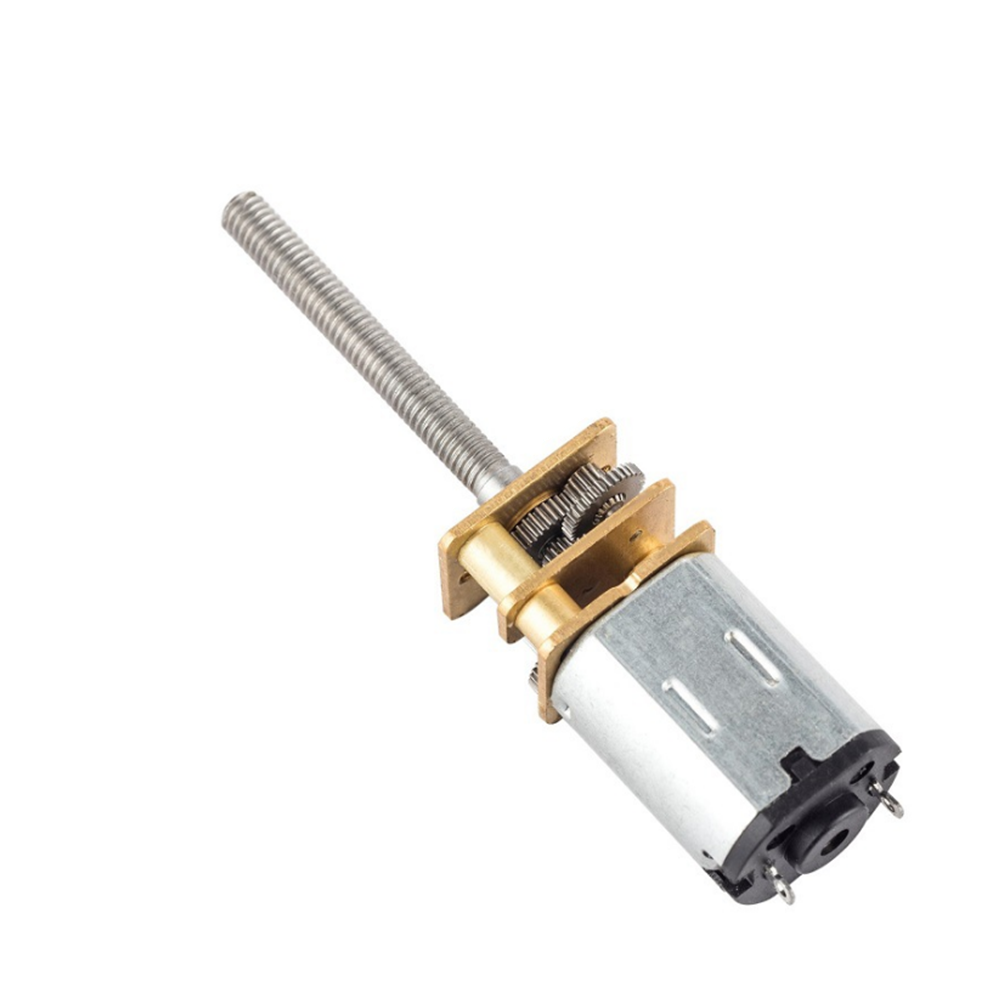

With M3 / M4 screw shaft
Length: 10mm ~ 45mm

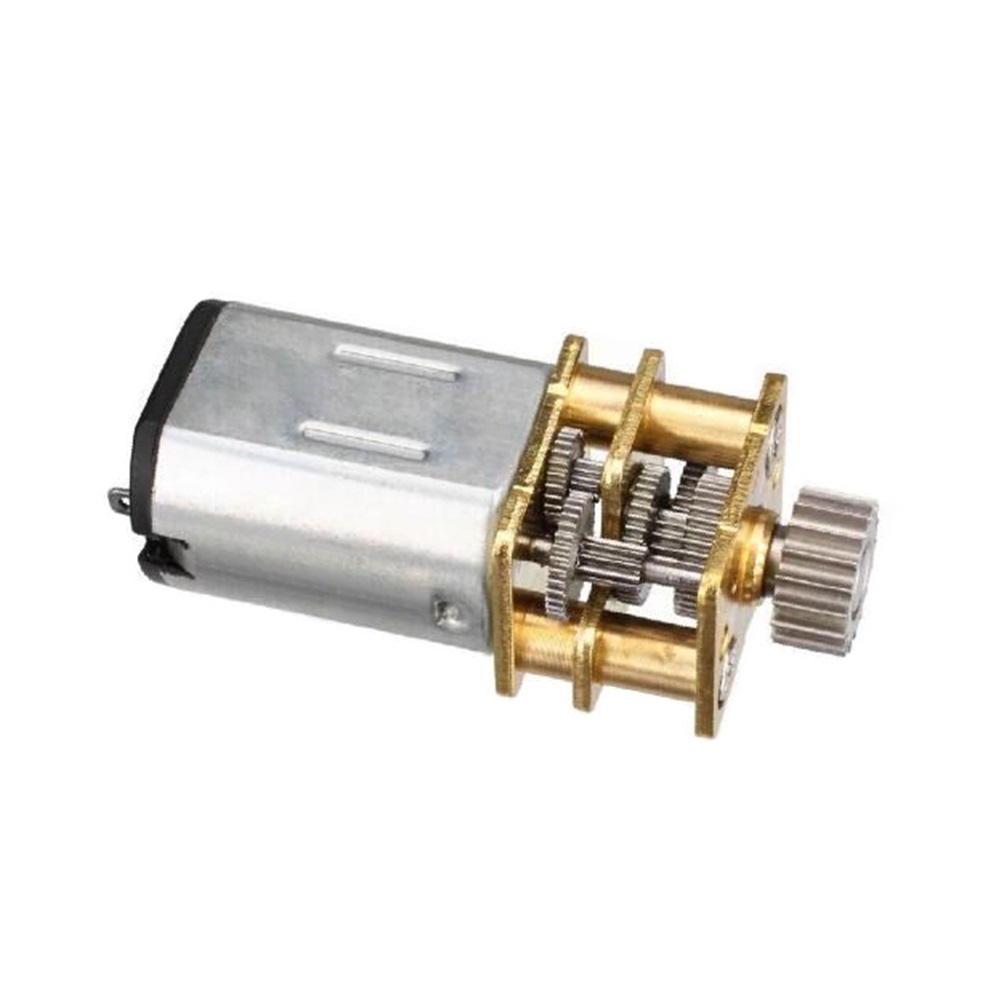

For 3D Pen Printer
Wheel size customized

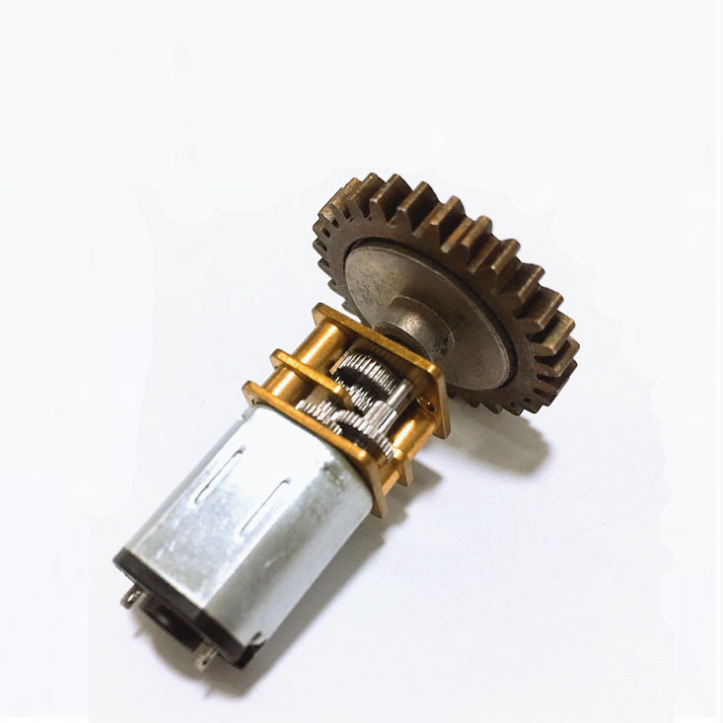

Big metal gear wheel for Door lock

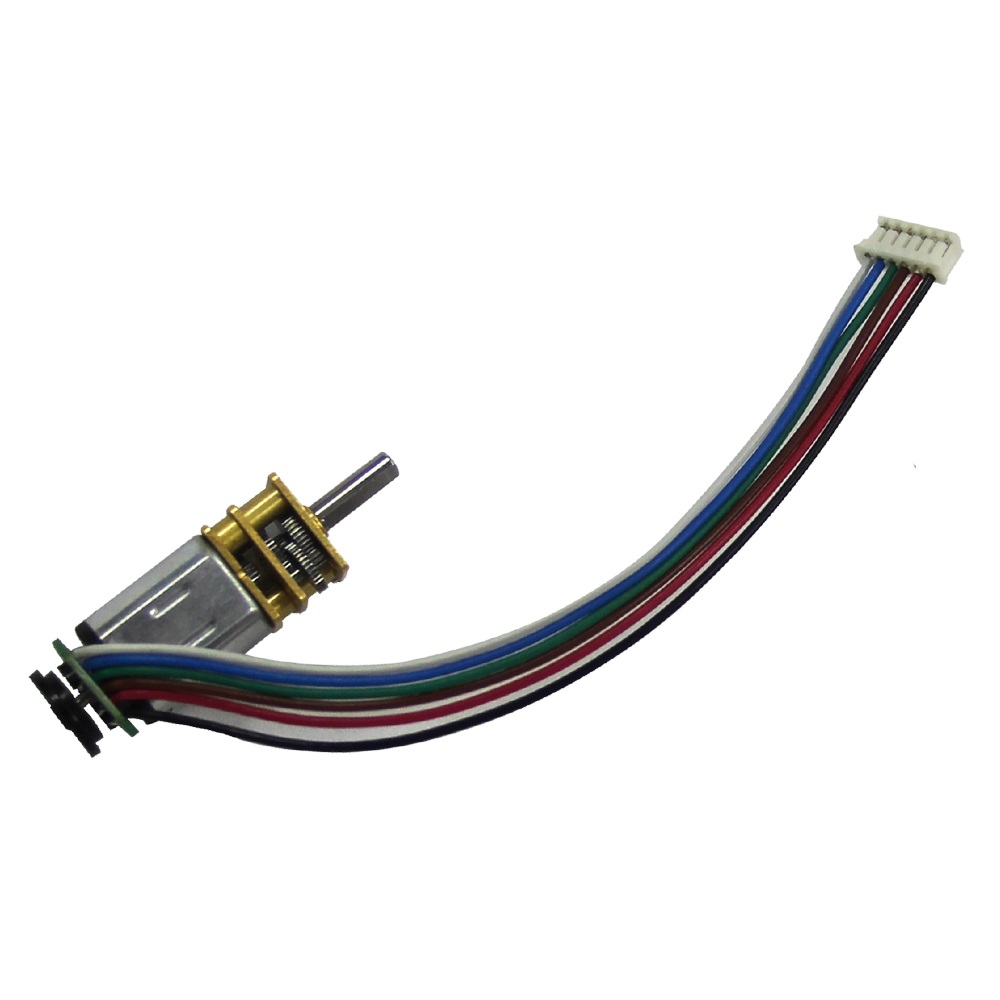

With Encoder for precise instrument

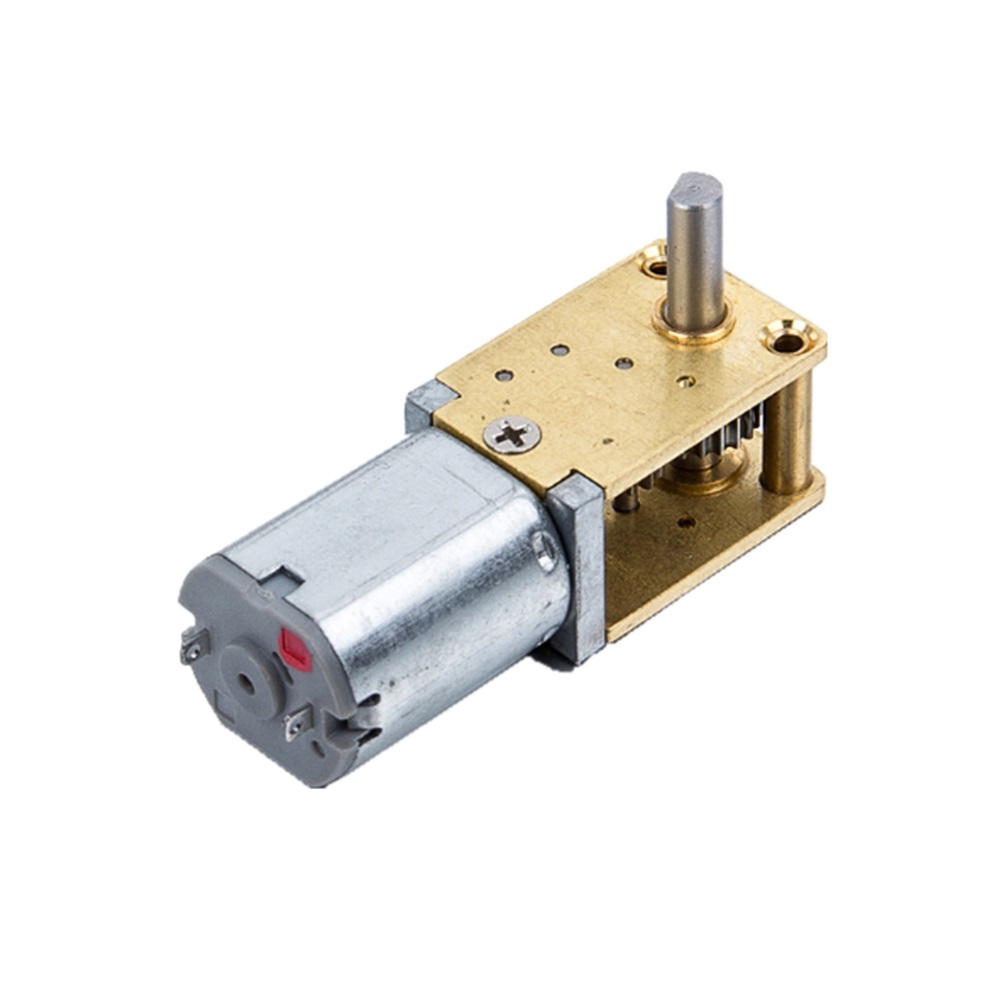

Right Angle for Robot and lock

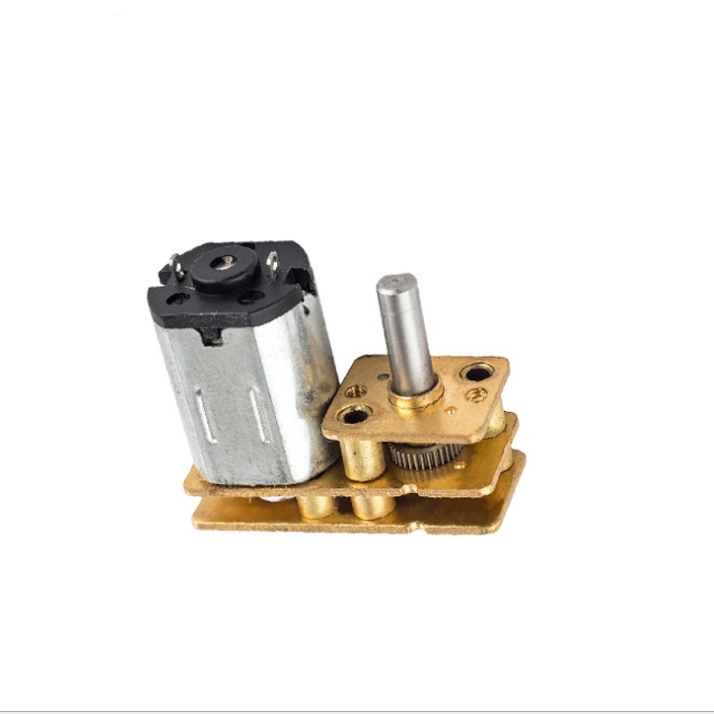

Back output shaft U type for toys

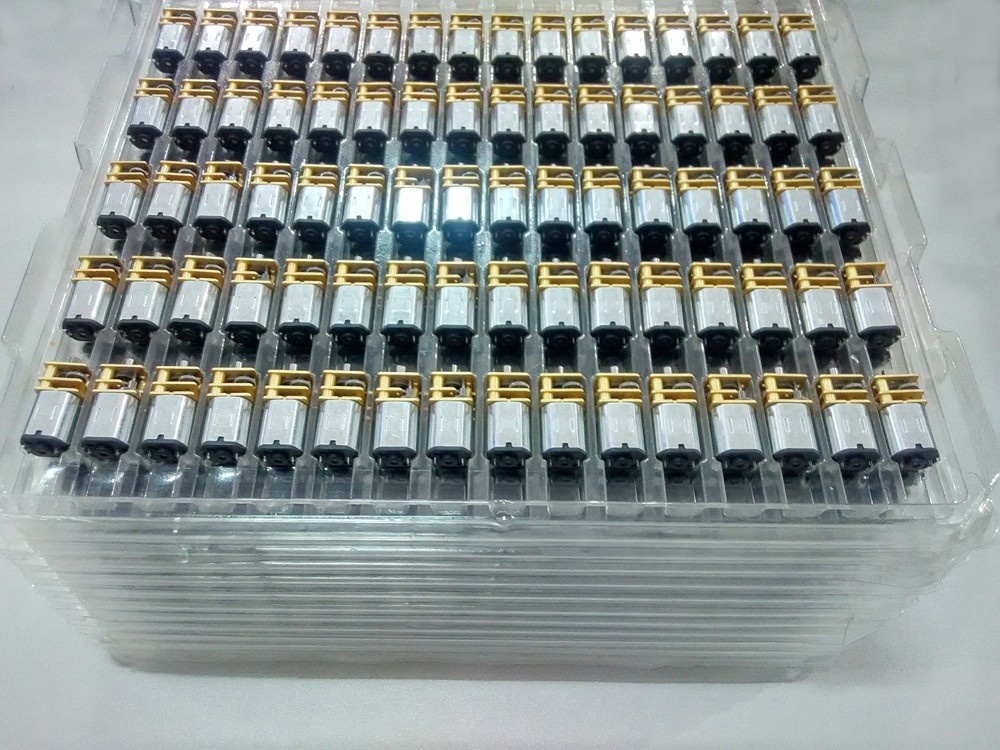

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Manufacturing Capabilities

Professional micro motor manufacturer for 10 years. Our production range includes:

Brush DC Motor: Φ6mm—Φ60mm
Brushless DC Motor: Φ12mm-Φ42mm
Coreless Motor: Φ4mm—Φ45mm
Gear/Planetary Gear Motor: Φ4mm—Φ60mm
Stepper DC Motor: Φ6mm—Φ24mm
Vibration DC Motor: Φ4mm—Φ45mm
Voltage Range: DC 1.5V-220V, AC 110V/220/230/240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Shaft Length: 0.1-150mm
Gearbox Ratio: 1:4 to 1:5000

Frequently Asked Questions

Q1: What are your main products?

We specialize in Diameter 4~60 mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush/Brushless motors, Spur Gear motors, and Vibration motors.

Q2: What is the main usage of the micro DC gear motor?

Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Banking Systems, Vending machines, and electronic power locks.

Q3: Do you accept customization?

Yes. We have a strong design team to provide technical solutions and customize motor data based on your requirements.

Q4: What information is needed for an order?

Please provide the required voltage, speed, torque, and overall dimensions for the motor.

Q5: What if I don't know the technical data?

Please contact our sales team and describe your application requirements; we will recommend the most suitable model for you.

Q6: Are professional packaging services provided?

Yes, we provide professional, environmentally friendly, and efficient packaging to ensure the safety of your goods during transit.

Please feel free to contact us regarding any motor questions!

Product Detail

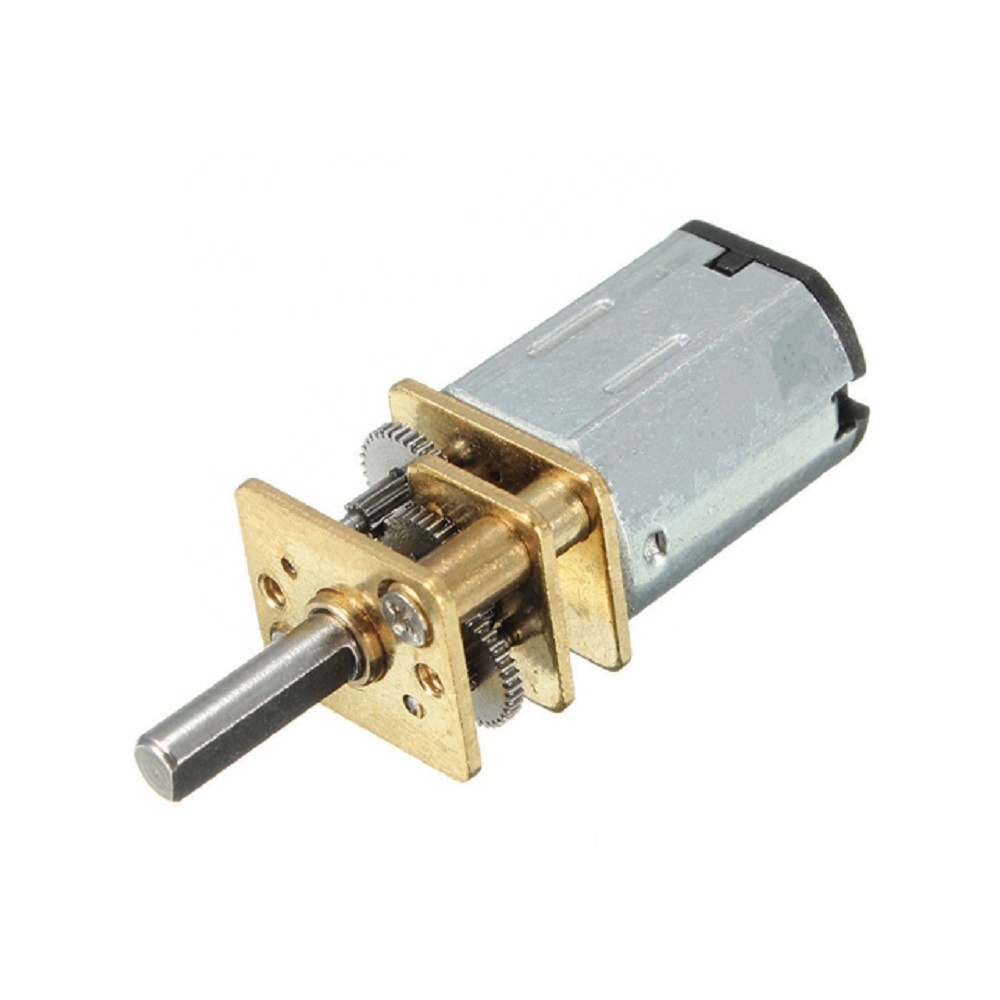

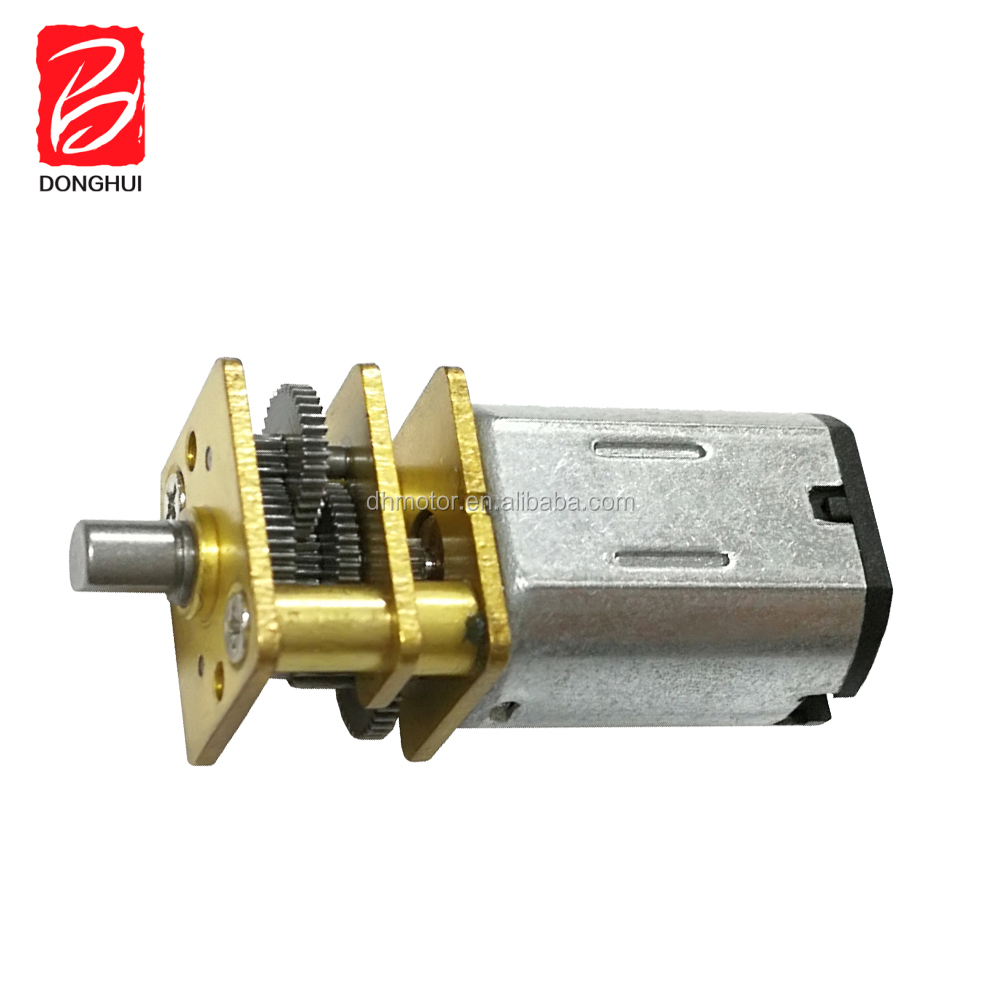

Cheap Price Customized Cheap Price DC 6/12V 75RPM Mini Electric Metal Boat Gear Motor with Gearwheel N20 Motor DGA12-N20
