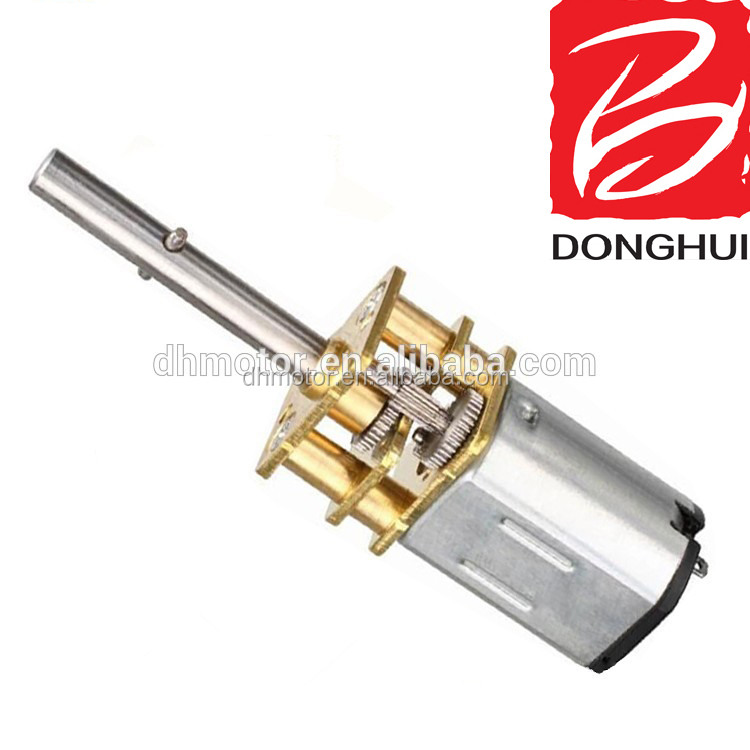

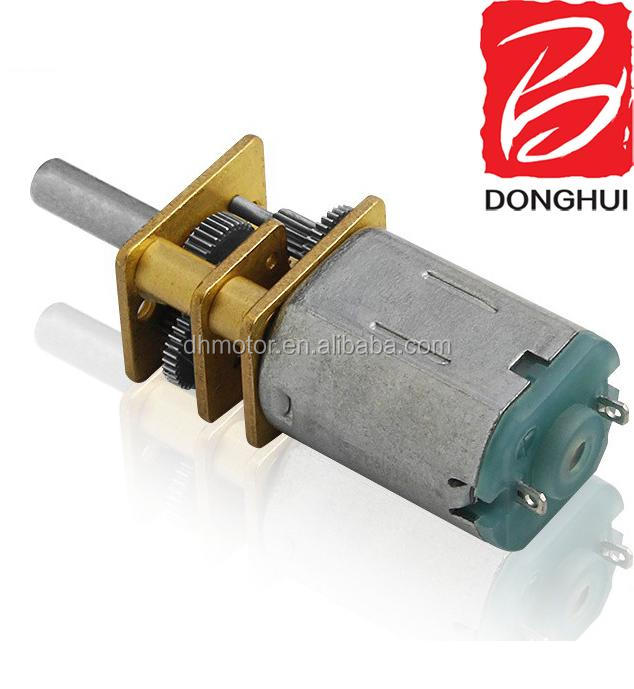

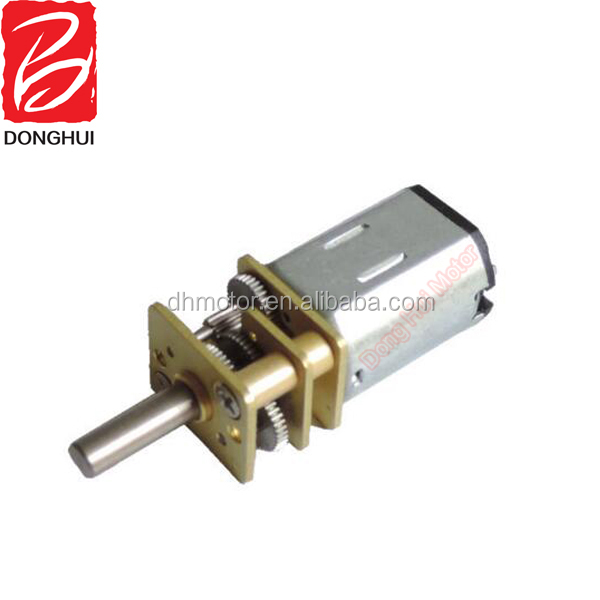

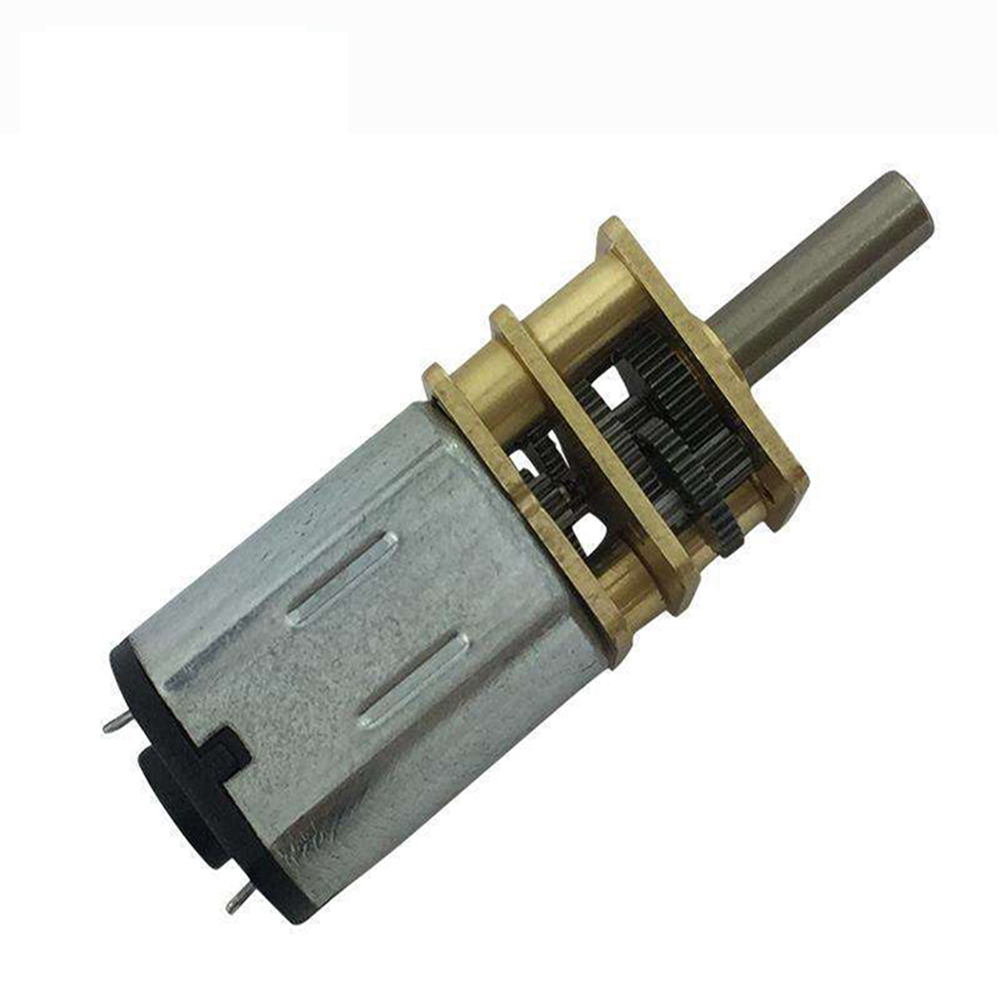

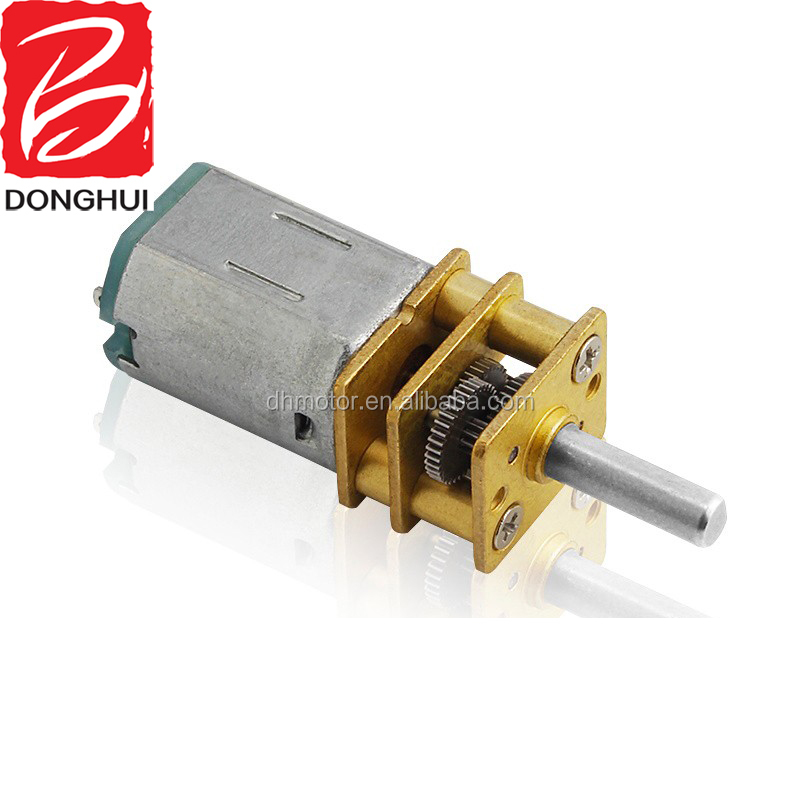

DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch
DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch
DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch
DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch
DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch
1 / 5
DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch
DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch
DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch
DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch
DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch

DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch

Send Inquiry

Product Description

Product Overview & Quick Details
Model Number DGA12-N20 Type Micro Motor / DC Gear Motor
Voltage (V) 6V (Range: 1.5-12V) Speed (RPM) 56 RPM (No-load: 71 RPM)
Torque 300 G.cm Output Power 0.3 W
Construction Permanent Magnet Commutation Brush (Metal)
Efficiency 68.3% (IE 1) Certification ROHS, ISO
Shaft Diameter 2.0mm Protect Feature Drip-proof

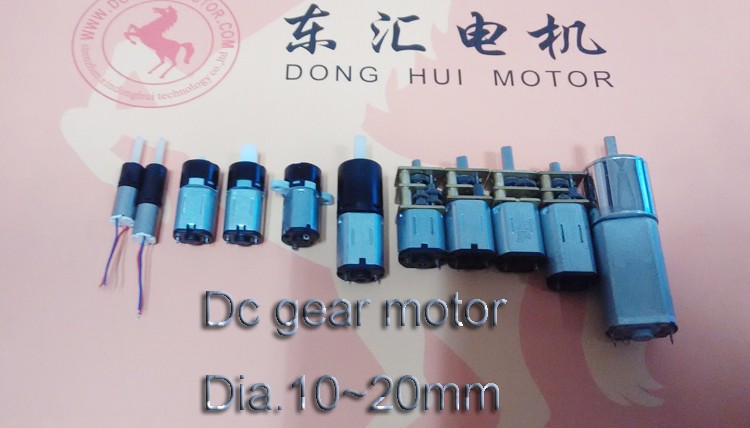

DC Gear Motor for Door Switch

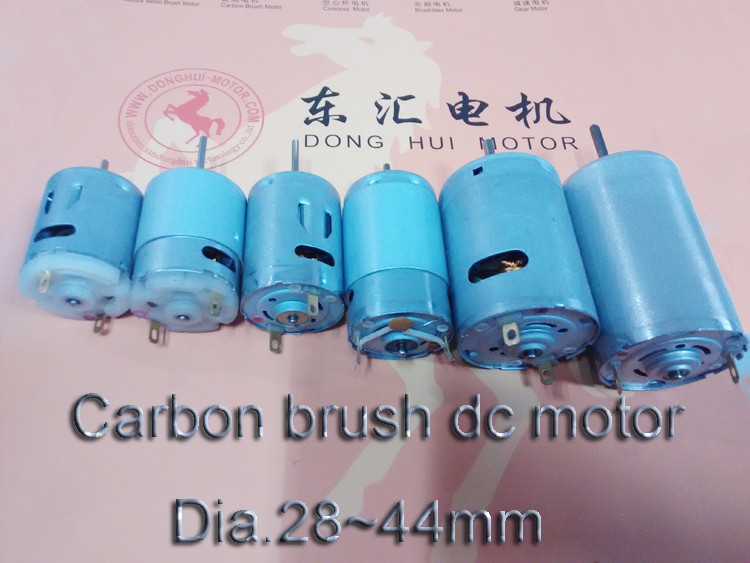

12mm 6V Motor

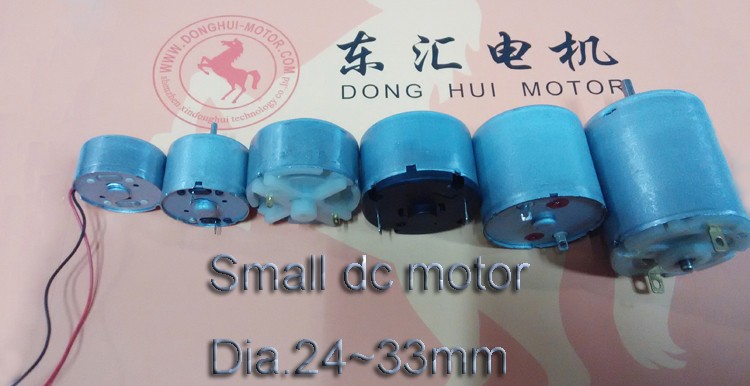

Compact Micro Motor
Technical Specifications

Product Category: Brush DC Motor, DC Gear Motor, DC Brushless Motor

  • ★
    Wide Speed Range: Adjustable from 10 to 2000 RPM based on requirements.
  • ★
    Customizable: Can be equipped with an encoder for precision control.
  • ★
    Multiple Ratios: Reduction ratios available include 1/3, 1/50, 1/100, 1/298, 1/300, 1/1000.
  • ★
    Ultra-Compact: Main dimensions 12.0 * 24.0 * 10.0mm; total length just 24mm.
Main Applications
Smart locks and Intelligent Door Switches
Robotics and Auto Shutter systems
Money detectors and Currency counters
Household appliances and Office equipment
Slot machines and Coin refund devices
Automatic TV racks and Towel dispensers
Technical Drawing 1

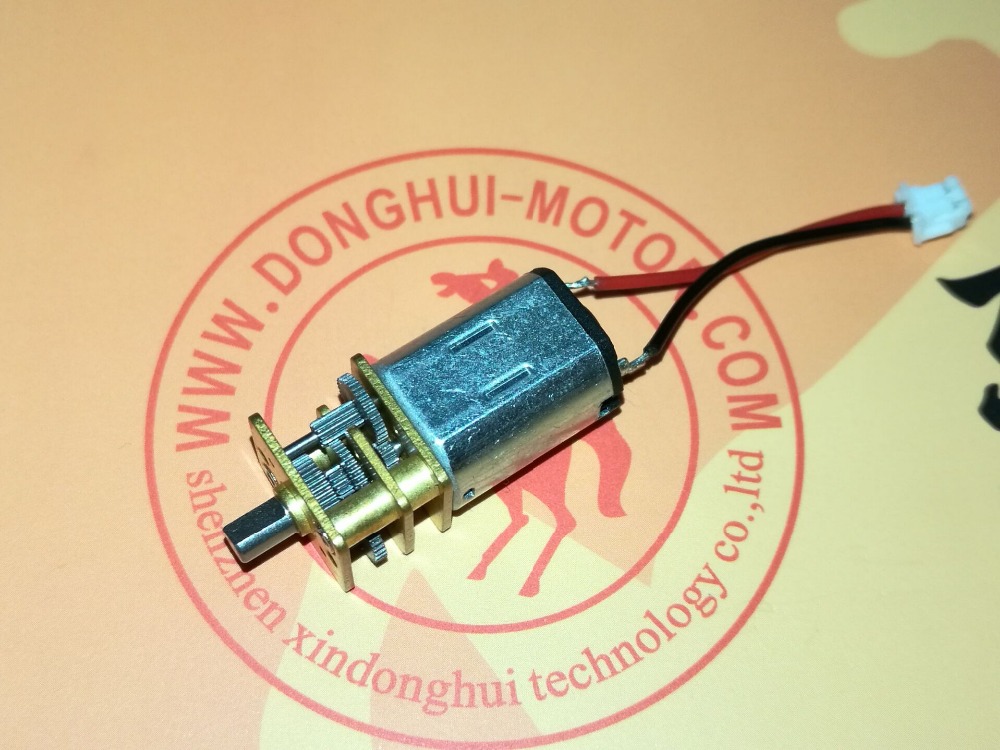

Technical Drawing 2

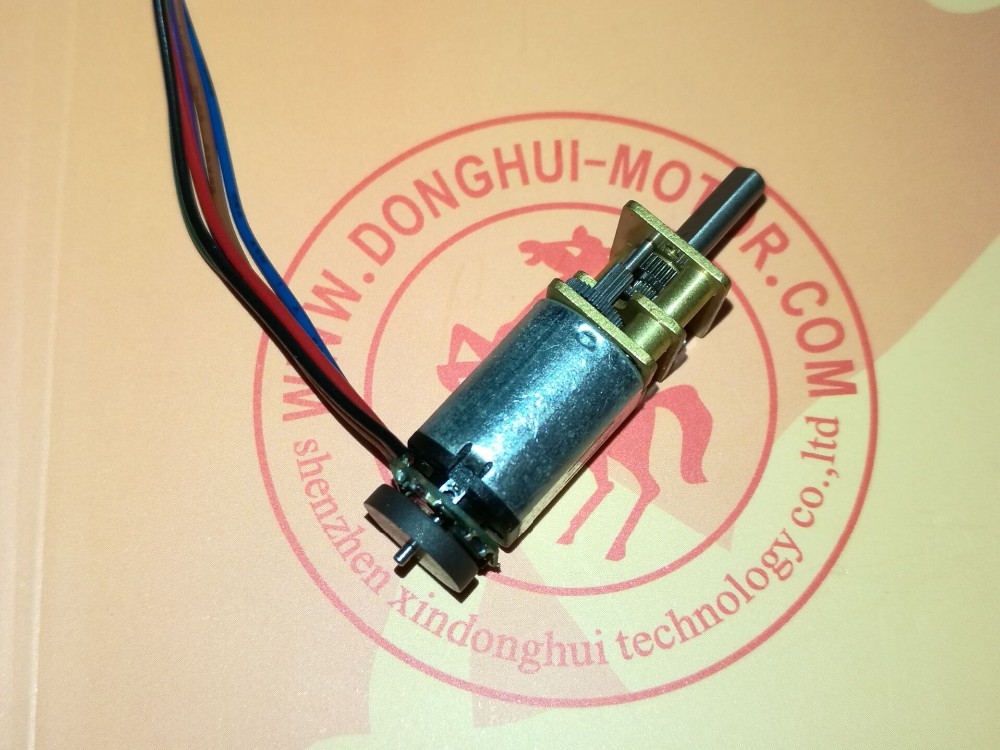

Technical Drawing 3
Packaging & Shipping
Packaging Details 80PCS/TRAY, 1200PCS/CTN, CARTON DIMENSION: 11*9*6.75 INCH
Delivery Lead Time Within 25 days
Product Full View
Professional Micro Motor Development

Committed to the development and production of micro motors since 2003, offering four major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. Our products are widely utilized in consumer electronics, medical equipment, power tools, and automotive fields.

  • Diameter Range: 4mm to 100mm
  • Voltage Range: 1.5V to 42V (AC Rectify options available)
  • Speed Range: 1 RPM to 30,000 RPM
  • Stall Torque: 1g.cm to 30kg.cm
FAQ
1. What is the standard voltage range for the DGA12-N20 motor?
The rated voltage is typically 6V, but the motor can operate within a range of 1.5V to 12V DC.
2. Can this motor be used for smart home devices?
Yes, it is widely used in smart door locks, intelligent switches, automatic shutters, and household appliances.
3. Is it possible to add an encoder to this motor?
Absolutely. This model can be equipped with an encoder for applications requiring speed and position feedback.
4. What are the noise levels like for this micro motor?
The motor is designed for low-noise operation, making it ideal for office equipment and personal care products.
5. What is the typical lead time for an order?
Standard delivery is within 25 days, although samples can often be processed in 15-20 days.
6. Does the motor comply with international environmental standards?
Yes, our motors are ROHS and ISO certified, ensuring compliance with environmental and quality standards.
