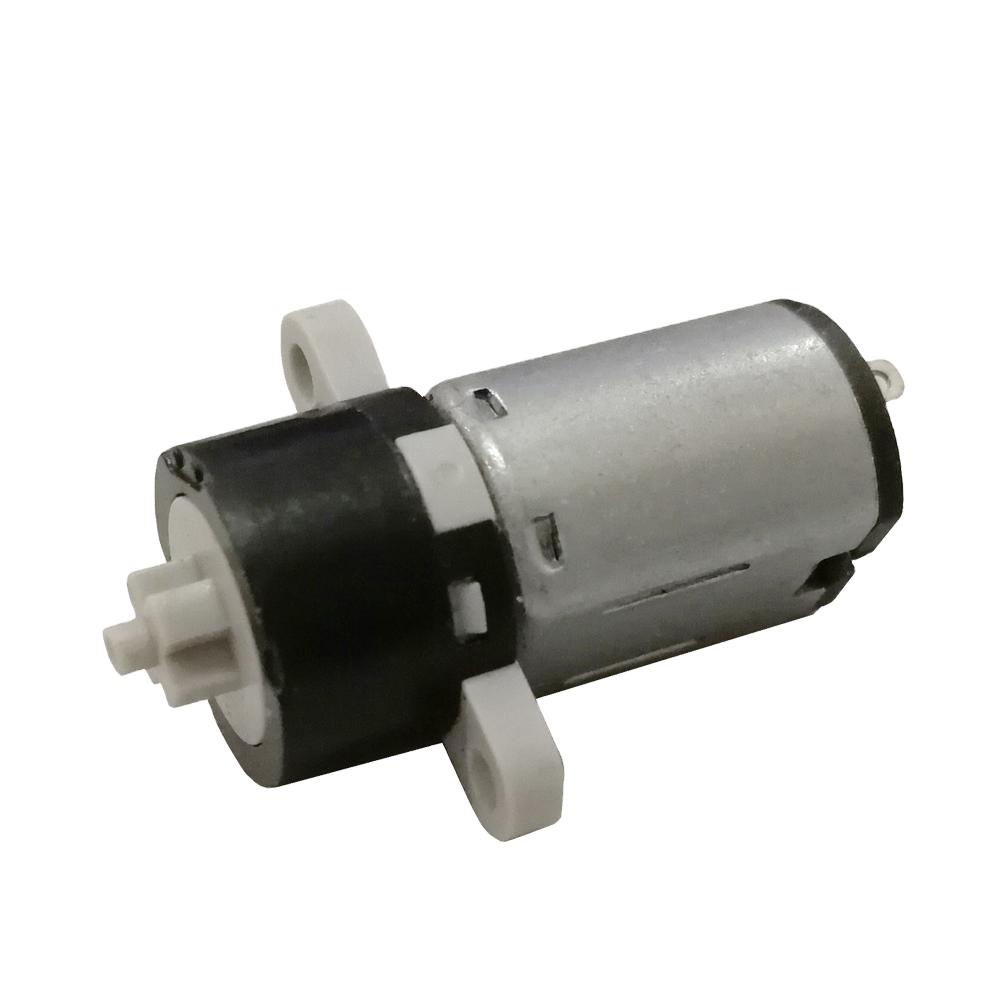

6mm 8mm Small Electric DC Gear Motors 1.5V for Electric Door Lock
Product Specifications
- Rated Voltage: DC 1.5V - 12V
- Speed No Load: 30-60 RPM
- Torque: 10-25 g.cm at Max Efficiency
- Motor Type: Precious Metal-brush motors
- Diameter Options: 6mm, 8mm, 10mm, 12mm
- Weight: Approx 10g
- Output Power: 0.3~1.5W
- Applications: Robot, Home Appliance, Door Lock, etc.
| Parameter |
Details |
| Model |
DC Planetary Gear Motor |
| Diameter |
6mm / 8mm / 10mm |
| Speed Range |
15-1500 RPM |
| Voltage Options |
3V / 3.7V / 4.5V / 6V / 12V |
Customization & Technical Support
Note: We can adjust the performance of voltage, torque, speed, current, power, shaft shape, and length according to your needs. Our engineers will provide detailed drawings and specifications to match your application requirements.
Related Products
Manufacturing & Quality
Engaged in the design, development, production, and sale of precision DC motors and gear motors since 2003. Our products are widely applied to robots, intelligent door locks, medical equipment, and domestic appliances.
- 13 years experience in DC gear motor production.
- High-quality gears and military-grade precision.
- Strong R&D and production capabilities.
- 10 years of export experience to Germany, Japan, and USA.
Frequently Asked Questions
Q1: What are your main motor products?
Answer: We specialize in Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush/Brushless DC motors, Spur Gear motors, Vibration motors, and Micro Planetary Gear motors.
Q2: What is the main usage of these micro DC gear motors?
Answer: Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industries, Banking Systems (vending machines, payment equipment), and automated power door locks.
Q3: Do you accept product customization?
Answer: Yes, we have a strong design team. We can customize the performance and dimensions based on your specific technical requirements.
Q4: What data should I provide for an order?
Answer: Please provide the required voltage, speed, torque, and the overall dimensions required for your application.
Q5: What if I don't know the specific technical data needed?
Answer: Please contact our sales team. We will guide you through the selection process and help define the specs for your project.
Q6: What is the typical power range of these small gear motors?
Answer: Our small-scale DC gear motors typically offer an output power ranging from 0.3W to 1.5W, optimized for high efficiency and durability.
