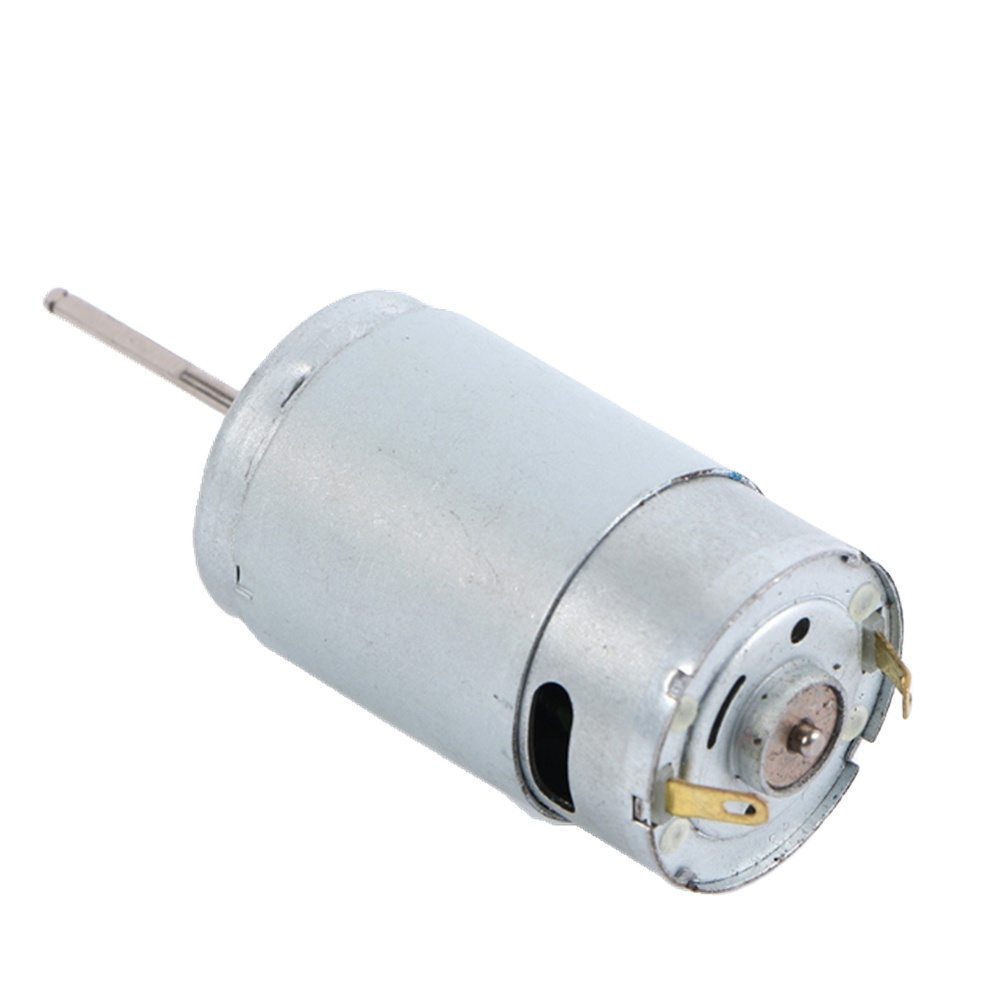

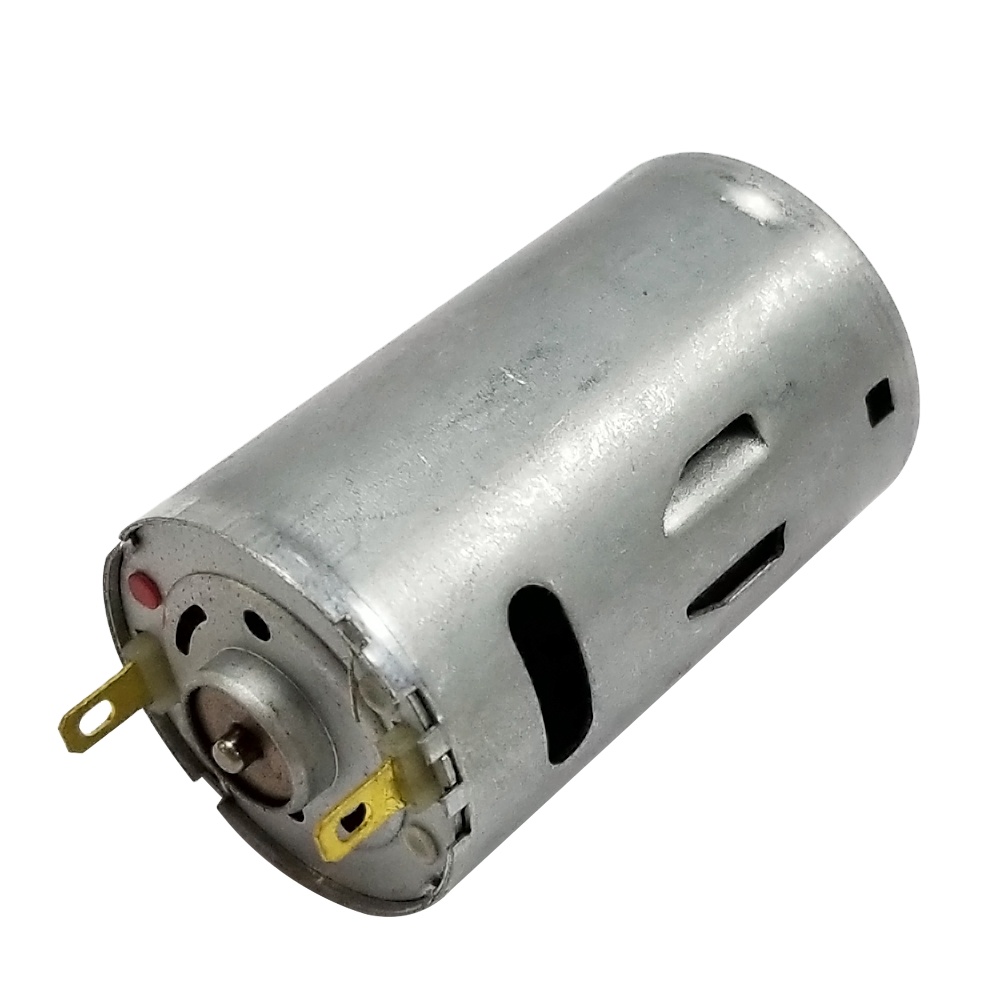

12v Micro Dc Motor RS 390 RS 395 Dc Motor

1 / 5

12v Micro Dc Motor RS 390 RS 395 Dc Motor

Send Inquiry

Product Description

⚙️ Product Description

Model Number	RS-395	Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance	Type	Micro Motor
Certification	ROHS, ISO9001	Torque	310 G.cm	Construction	Permanent Magnet
Commutation	Brush	Protect Feature	drip-proof	Speed(RPM)	3285 rpm
Continuous Current	0.32A	Output Power	2W	Voltage(V)	12v
Efficiency	IE 1	Shaft	2.3MM D-cup shaft	Weight	85g
No Load Speed	4100rpm	Max Efficiency	53.3%	Brush Type	Carbon brushes

Key Specifications

✓

Performance: Low noise, high torque, and long-life operation.

✓

Voltage Range: Flexible operation between 3V-24V.

✓

Dimensions: Diameter 27.7mm, Length 47mm with a 2.3mm shaft.

✓

Power Output: Efficient output ranging from approximately 1W to 35W.

✓

Rotation: Supports both CW (Clockwise) and CCW (Counter-Clockwise).

✓

Customization: Motor specifications and shaft length can be tailor-made.

📦 Packaging & Shipping

Packaging Detail	International standard packaging and customized client options.
Delivery Detail	Efficient fulfillment in less than 30 days.

🛠️ Product Showcase

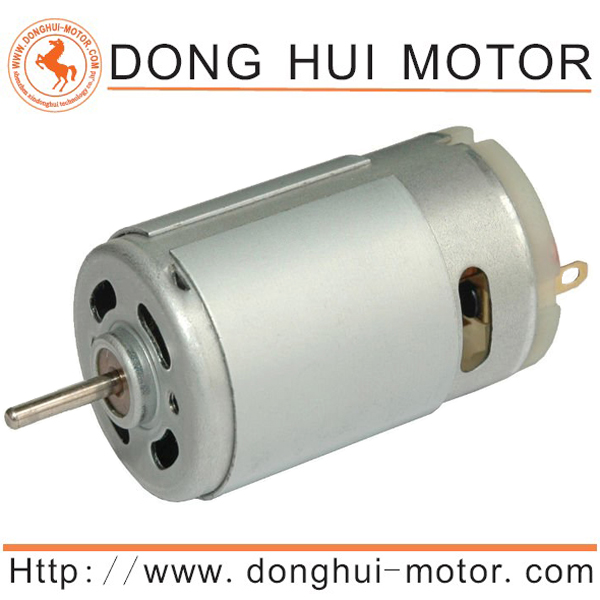

Micro DC Motor RS-390 / RS-395 Series

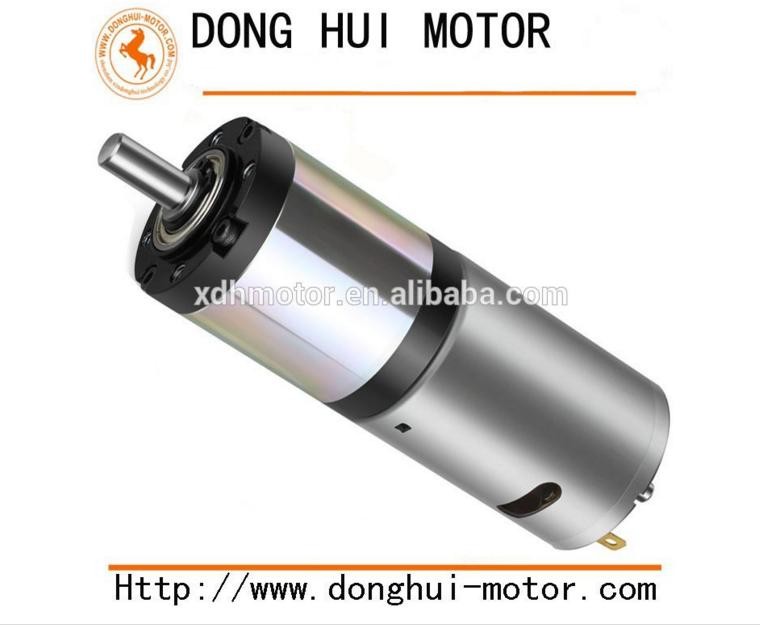

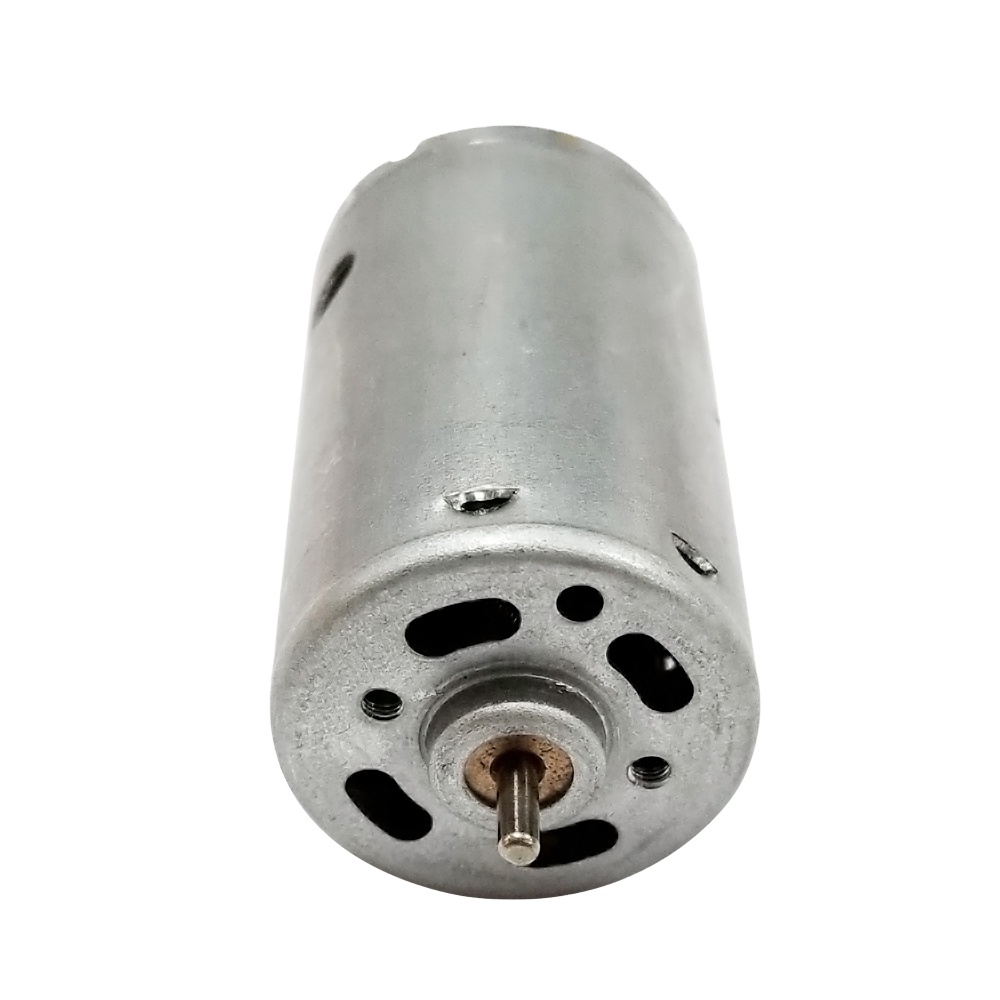

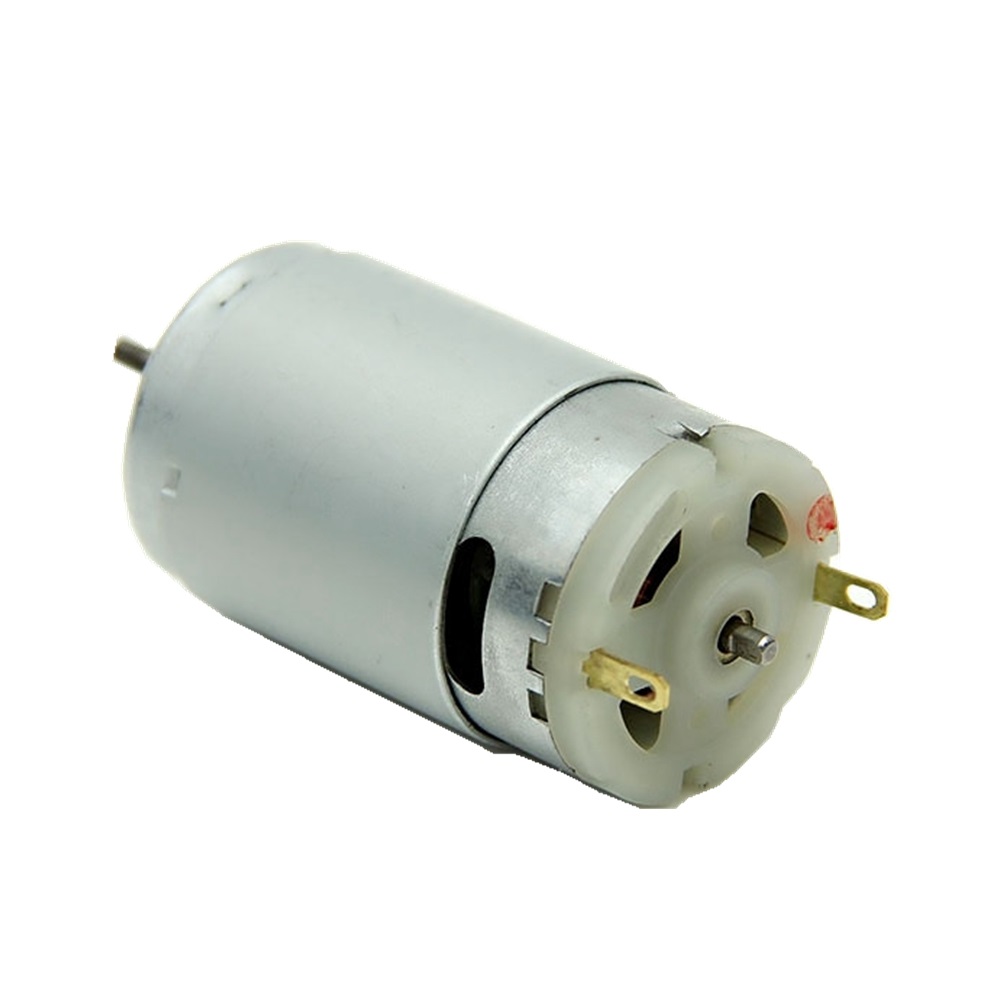

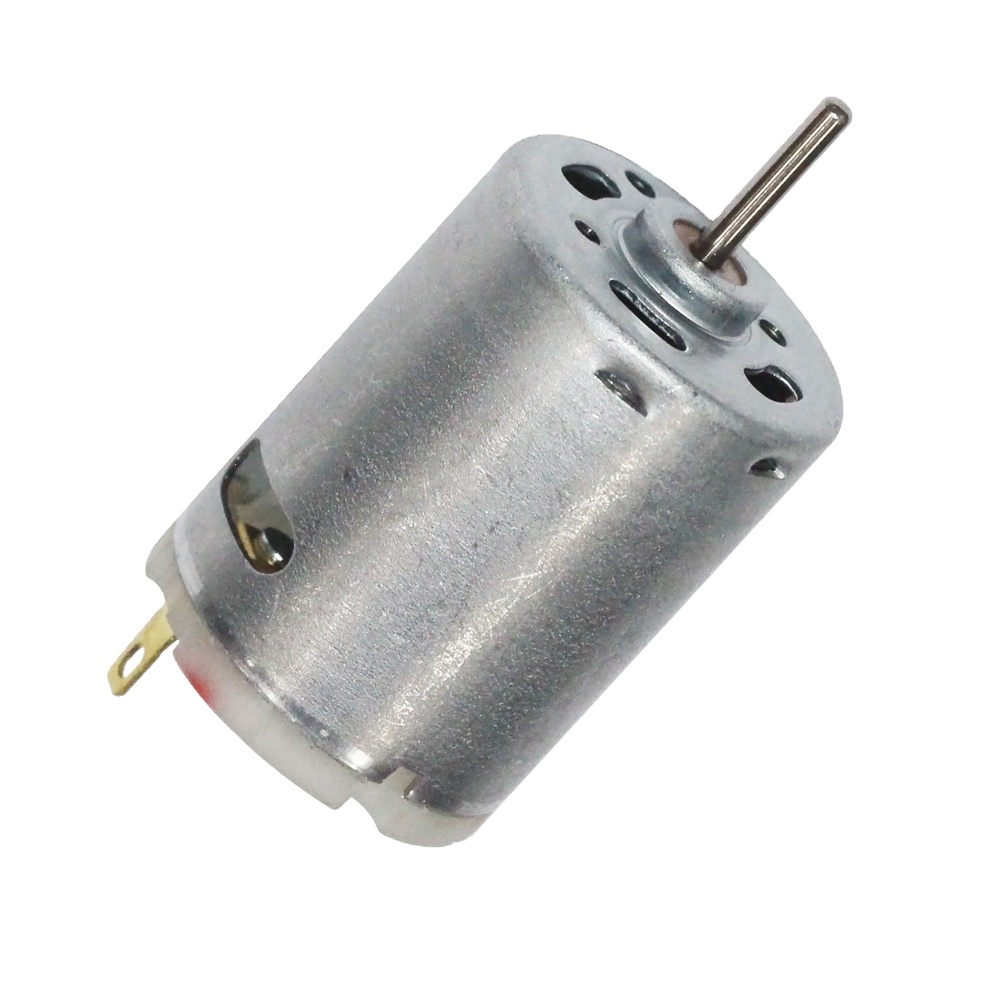

Detailed Motor Views:

📊 Technical Capabilities

Specializing in the development and production of micro motors since 2003, including four major series: Micro DC motors, DC gear motors, coreless motors, and brushless motors.

Product Range Overview

Size Range: Diameter 4mm - 100mm
Voltage Range: DC 1.5V - 42V; AC Rectify 100V-240V
Speed Range: 1 RPM - 30,000 RPM
Stall Torque: 1g.cm - 30kg.cm

Frequently Asked Questions

What is the standard voltage for the RS-395 motor?

The standard rated voltage is 12V DC, but the motor can operate within a range of 3V to 24V depending on your requirements.

Can the shaft specifications be customized?

Yes, the motor specifications and shaft length can be tailor-made according to specific customer requirements.

What are the typical applications for this micro motor?

It is widely used in household appliances like massagers, vibrators, air compressors, vacuum cleaners, and power tools.

Does the motor support bi-directional rotation?

Yes, the RS-395 motor supports both Clockwise (CW) and Counter-Clockwise (CCW) directions.

What certifications do these motors carry?

The motors are certified under CE, ROHS, and ISO9001:2000 standards, ensuring high quality and safety.

What is the average lead time for delivery?

Standard delivery for orders is typically less than 30 days.
