Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30

Product Description

Product Description

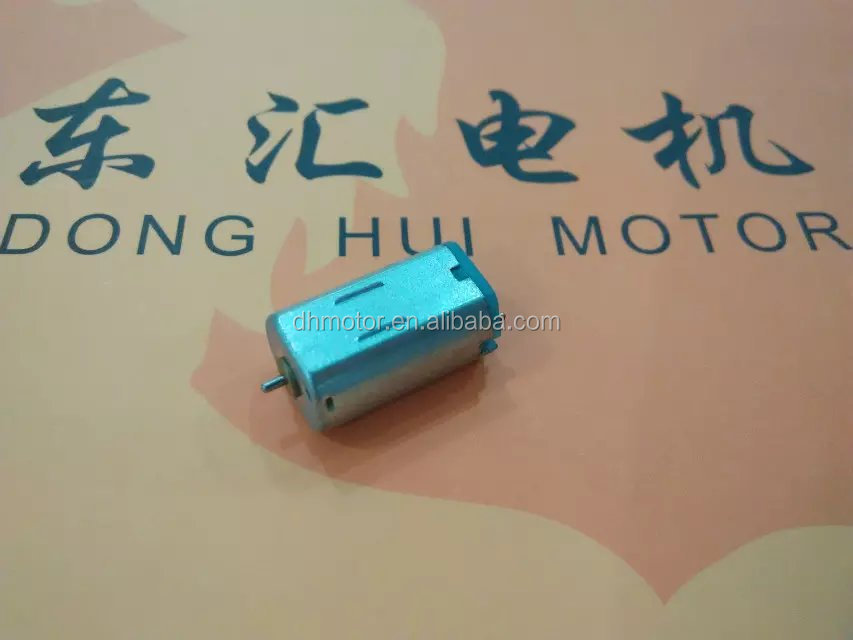

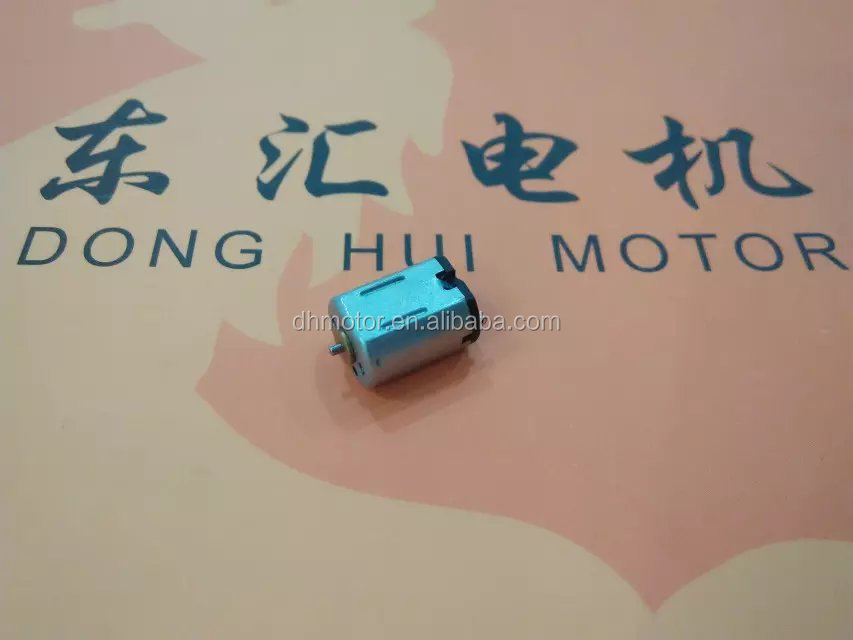

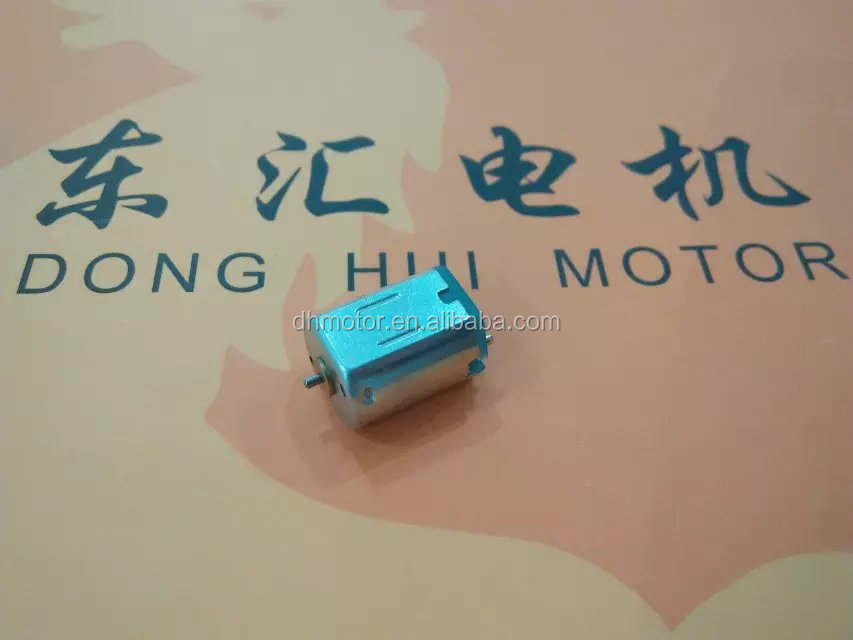

1.2v 3v 6v 7v 9v DC Motor FN20 / FN30
Voltage & Power:
Rated Voltage: DC 1.2-9V
Output power: 0.3~1.5W
Performance:
Speed No load: 3000-15000RPM
Torque: 2.5-20g.cm (At Max Efficiency)
Dimensions:
Diameter: 12 mm
Length: 20.0mm
Shaft: 1.0mm
Build Quality:
Precious Metal-brush motors
Weight: Approx 10g
  • Ideal for Robots, Home Appliances, and Smart Door Locks.
  • Fully Customizable: We can adjust voltage, speed, torque, and shaft performance for free to meet your specific needs.

Model Specifications

Note: Performance parameters including voltage, torque, speed, current, power, and shaft geometry can be tailored. Our engineers will provide detailed drawings and specifications based on your selection.

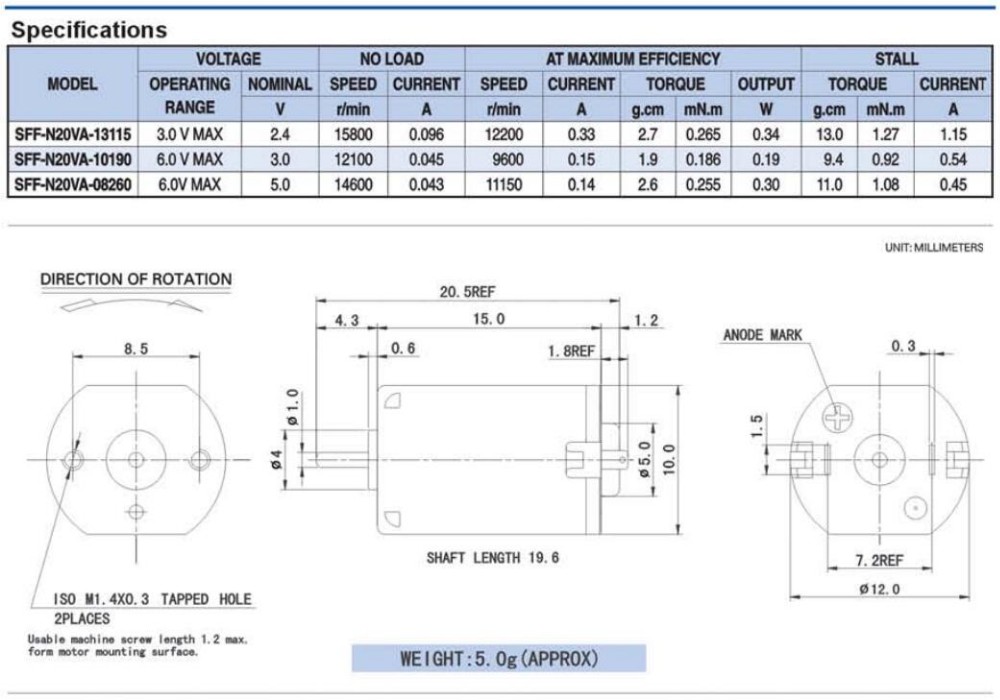

Model No: FF-N20
FF-N20 DC Motor

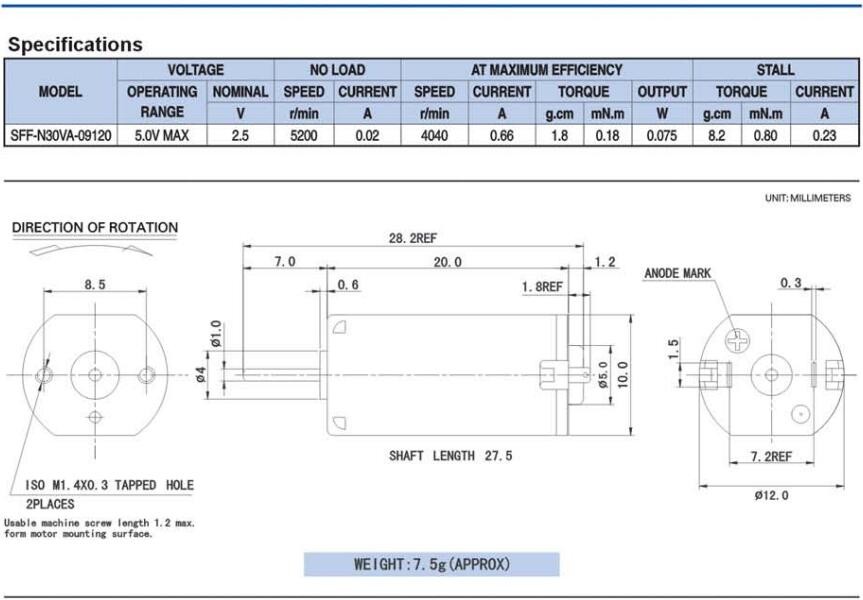

Model No: FF-N30
FF-N30 DC Motor

Related Products

DC Motor Variant 1
DC Motor Variant 2

Manufacturing Excellence

Founded in 2003, our facility is a private high-tech enterprise specializing in the design, development, production, and service of precision DC motors and gear motors. Our products are widely integrated into robotics, intelligent security, medical equipment, and automotive systems.

Factory Overview 1
Factory Overview 2
Core Advantages:
  • Over 13 years of specialized experience in DC motor and gear motor production.
  • Military-grade enterprise quality assurance and precision gearing.
  • Robust R&D capabilities for bespoke industrial solutions.
  • Decade-long export experience serving markets in Germany, Japan, and the USA.

Frequently Asked Questions

What are your main product categories?
We specialize in Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, brushless motors, vibration motors, and spur gear motors.
What are the primary applications for your micro DC gear motors?
Our motors are widely used in home appliances, office equipment, healthcare devices, automation industries, banking systems (ATMs/Vending), and electronic locks.
Do you support product customization?
Yes. We have a strong design team that can customize technical specifications including voltage, torque, and dimensions to solve your specific engineering challenges.
What information is required to place an order?
Please provide the required voltage, speed, torque, and overall physical dimensions for your application.
What if I am unsure about the technical specifications needed?
Please contact our technical sales team. We will guide you through the selection process and help define the parameters required for your project.
How do you ensure product quality?
As a high-tech enterprise with military-grade gear supply chains, we implement rigorous testing protocols and leverage over 13 years of manufacturing expertise.
