Precision Micros
Precision Micros
| Model Number: | DB2430 | Usage: | Fan, Home Appliance |
| Certification: | ROHS | Type: | Micro Motor |
| Torque: | 9.8mNm | Construction: | Permanent Magnet |
| Commutation: | Brushless | Protect Feature: | Drip-proof |
| Speed(RPM): | 9260rpm no load | Continuous Current(A): | 0.2A no load |
| Output Power: | 1W~10W | Voltage(V): | 12V |
| Efficiency: | IE 1 | Rated load speed: | 6000rpm |
| Rated load torque: | 9.8mNm | Rated load current: | 0.62A |
| Starting torque: | 38.2mnm | Starting current: | 1.8A |
| The length of the motor: | 30.8±0.3mm | Shaft dia: | 2.0mm |
| Shaft length: | Can be customized | Application: | Air pump |
| Packaging Detail: | 1.Export standard packing; 2.Our factory standard packing; 3.Packaging can be customized according to customer's request. |
| Delivery Detail: | 15 days for samples, 25-30 DAYS for batch. |
dc motor, dc gear motor, dc brushless motor, OEM and provide motor product design
24mm 2430 motor 12v bldc electric fan motor, long life 12v bldc motor for fan
24mm 24v 12v dc bldc motor

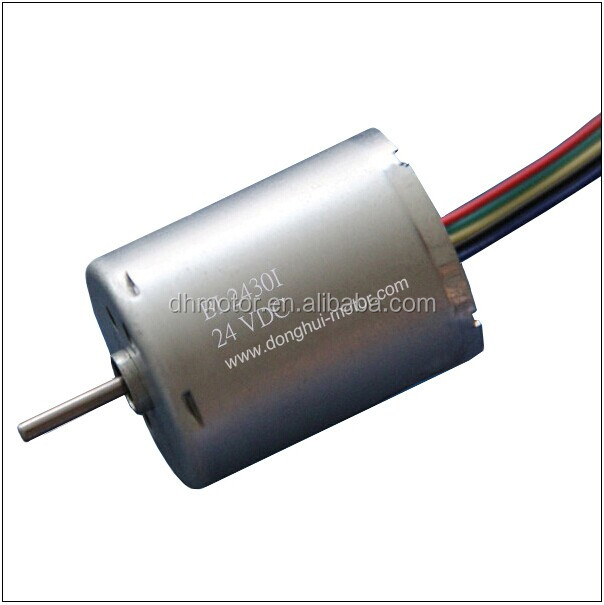

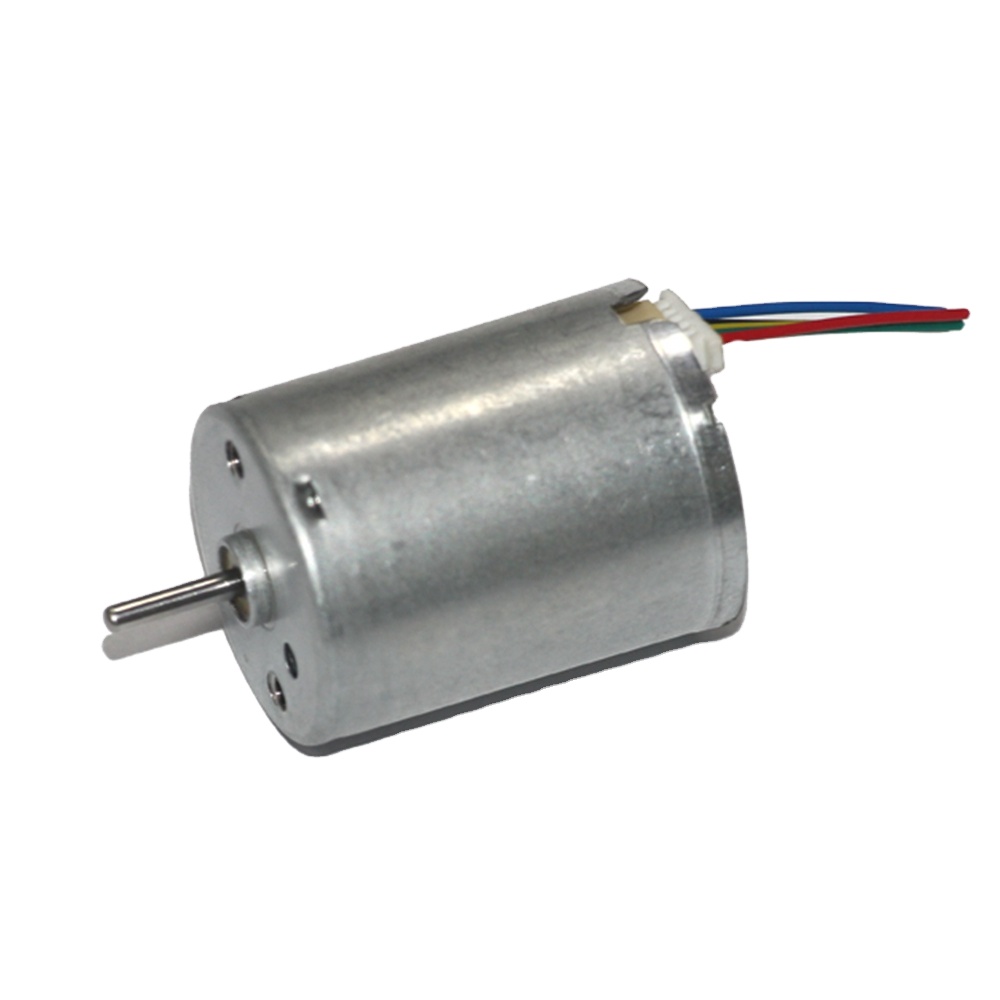

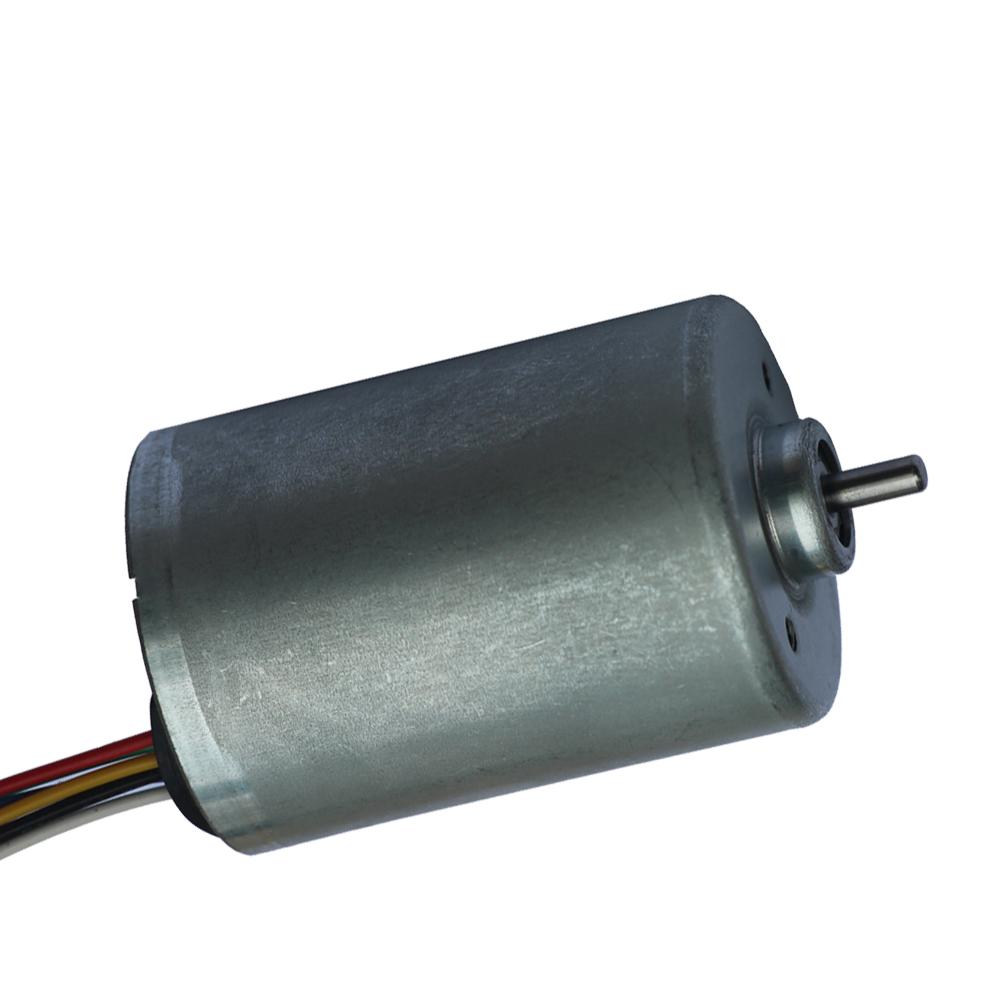

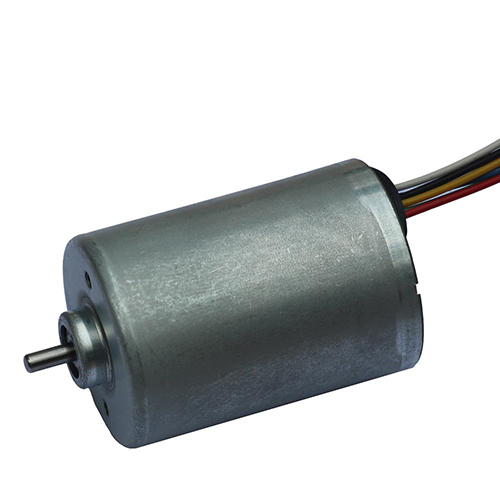

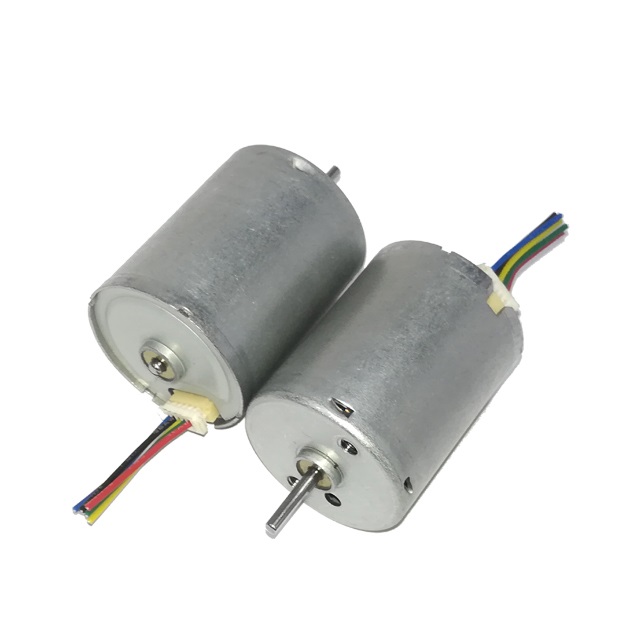

MOTOR PHOTOS:
MOTOR SPECS:

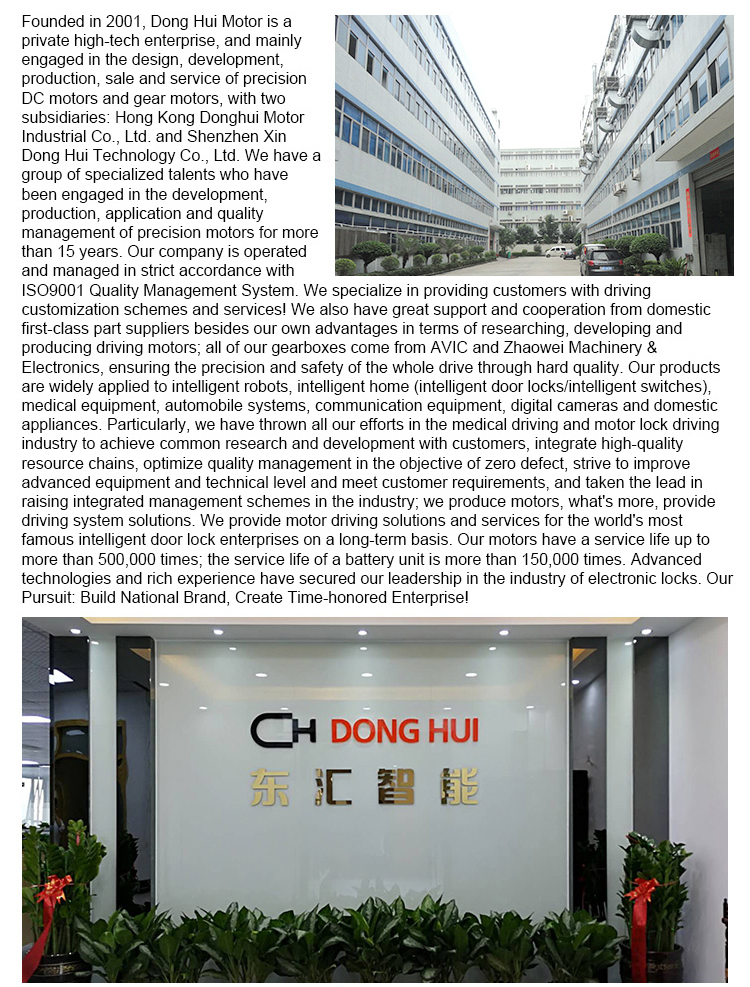

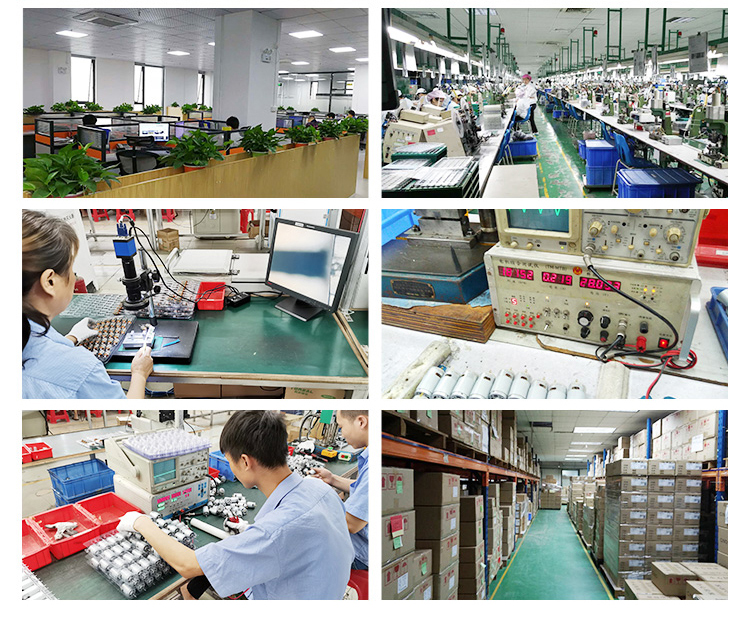

Established in 2003, we have been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields.
The DB2430 is ideally suited for fans, home appliances, and air pumps due to its long life and low noise characteristics.
Yes, it features stepless speed regulation and signal functions, allowing for precise control in various applications.
The motor is designed with locked rotor protection and a drip-proof feature to ensure stable operation under different conditions.
Yes, while the standard shaft diameter is 2.0mm, the shaft length can be fully customized according to customer requirements.
Samples typically take about 15 days, while batch production orders generally require 25-30 days.
Our motors are compliant with ROHS standards, ensuring they meet environmental and safety requirements.
