Precision Micros
Precision Micros
| Model | B3650M-S01 | B3650M-S02 | B3650M-S03 | |
|---|---|---|---|---|
| Voltage(V) | Operating Range | 8-26 | 8-26 | 8-26 |
| Rated | 12 | 24 | 24 | |
| No Load | Speed (rpm) | 5300 | 8589 | 4327 |
| Current (A) | 0.46 | 0.25 | 0.18 | |
| Rated Load | Torque (mNm) | 23.5 | 40 | 45 |
| Speed (rpm) | 4600 | 6925 | 3714 | |
| Current (A) | 1.53 | 1.524 | 1.01 | |
| Output P. (W) | 11.35 | 29 | 17.49 | |
| Stall | Torque (mNm) | 77.8 | 206.5 | 316.8 |
| Current (A) | 2.5 | 6.8 | 2.5 | |
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Range | Rated | Speed | Curr. | Torque | Speed | Curr. | Power | Torque | Curr. | |
| B3626M-S01 | 8-26 | 9 | 2720 | 0.12 | 13.73 | 985 | 0.57 | 1.42 | 21.51 | 2.5 |
| B3626M-S02 | 8-26 | 12 | 4460 | 0.18 | 10.79 | 3750 | 0.57 | 4.23 | 66.74 | 2.5 |
| B3630M-S02 | 8-26 | 12 | 5200 | 0.27 | 14.72 | 4260 | 0.9 | 6.56 | 81.3 | 2.5 |
| B3640M-S03 | 8-26 | 24 | 6140 | 0.26 | 23.5 | 5190 | 0.85 | 12.8 | 229.05 | 2.5 |
| B3650M-S01 | 8-26 | 12 | 5300 | 0.46 | 23.5 | 4600 | 1.53 | 11.35 | 77.8 | 2.5 |
| B3650M-S02 | 8-26 | 24 | 8589 | 0.25 | 40 | 6925 | 1.524 | 29 | 206.5 | 6.8 |
| B3657M-S03 | 8-26 | 24 | 6830 | 0.34 | 40.2 | 6134 | 1.48 | 25.8 | 195.0 | 2.5 |

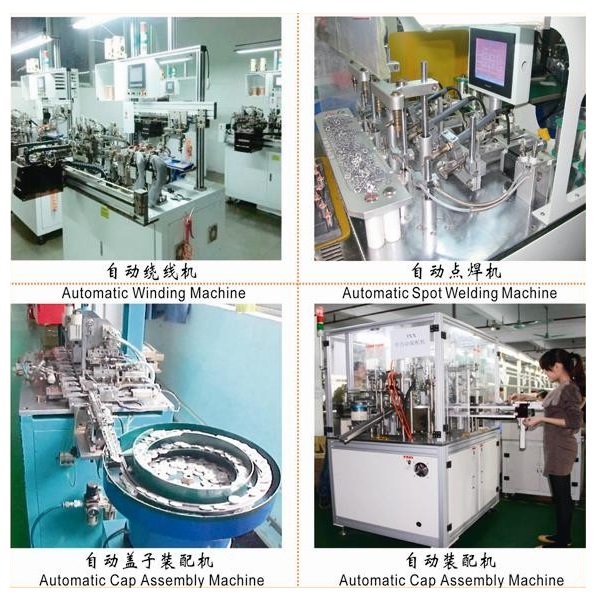

Professional micro motor manufacturer for more than 15 years, specializing in high-performance drive solutions:
