Product Specifications

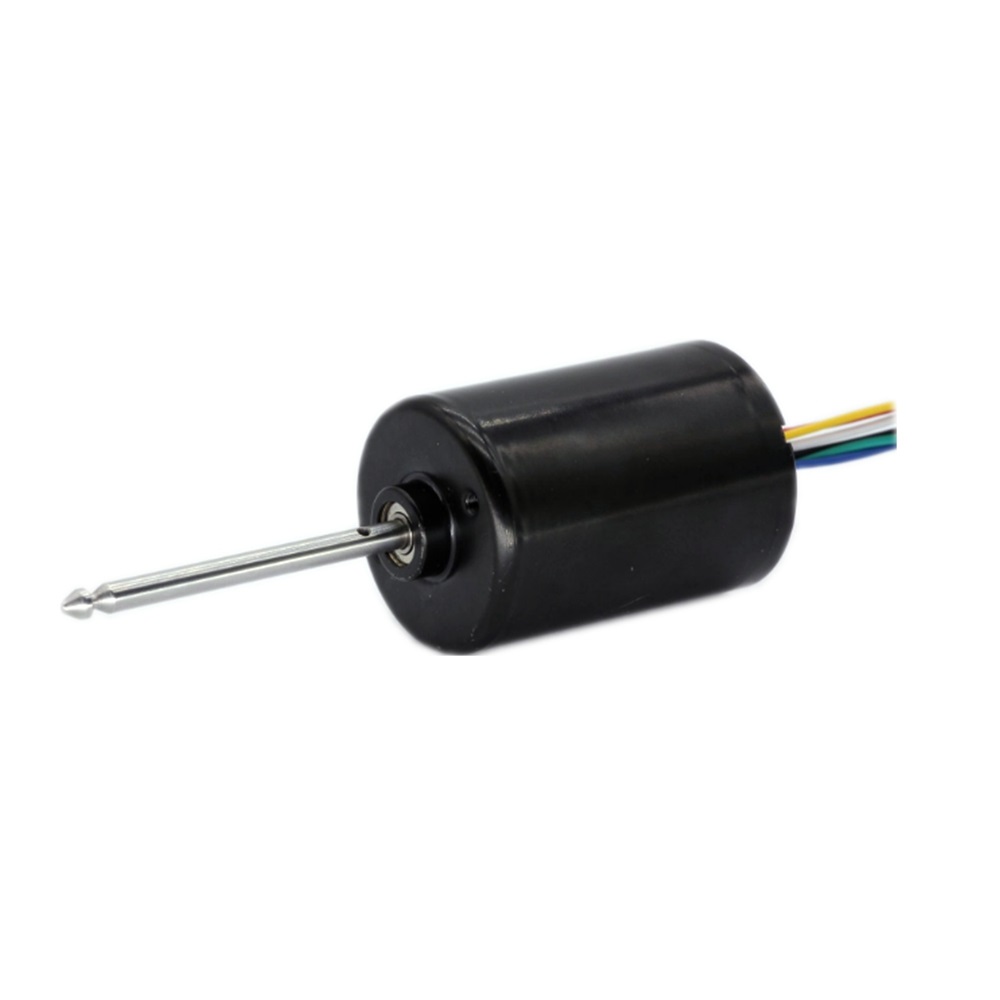

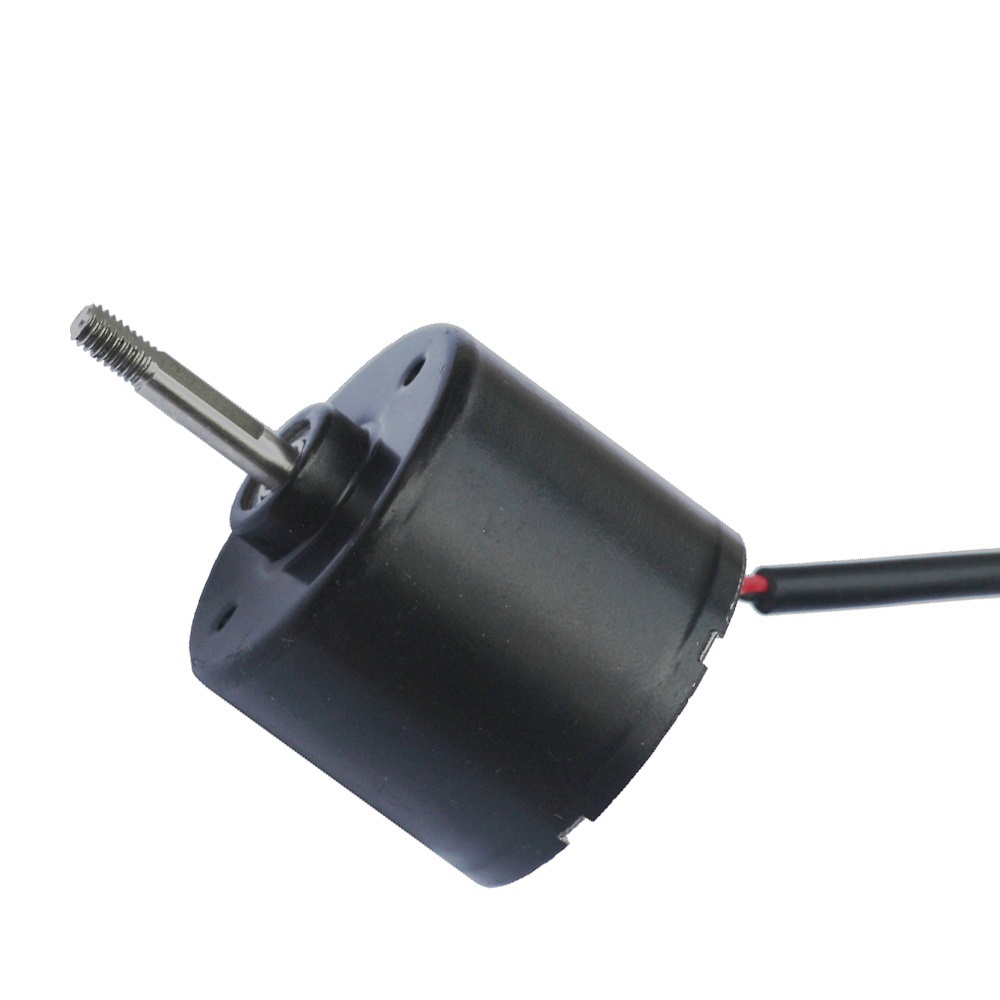

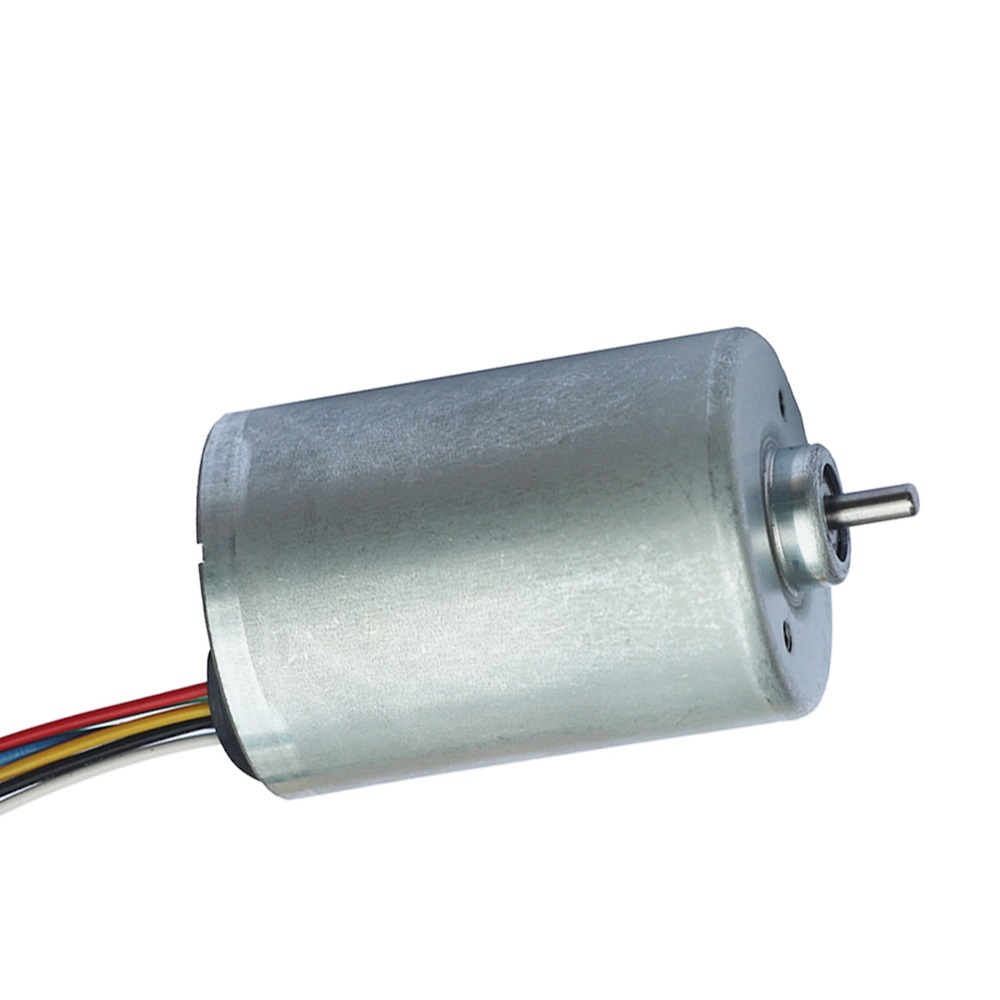

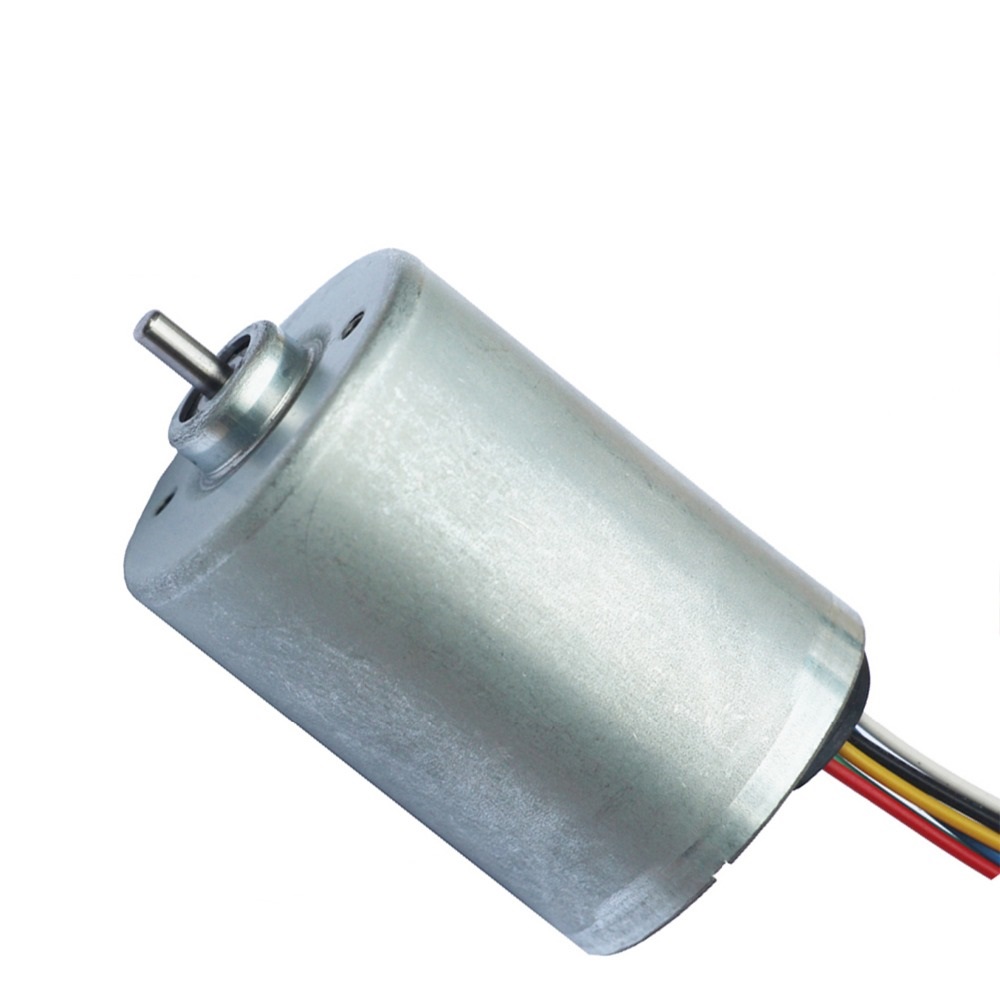

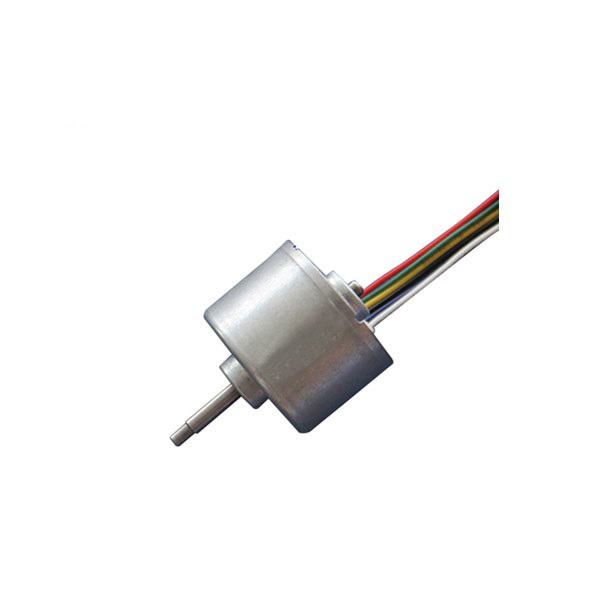

| Item | 36mm brushless motor |
| Size | Diameter 36mm, Length 26mm, 30mm, 40mm, 50mm, 57mm |
| Voltage | 8V~26V |
| Unload Speed | 2000-11000rpm |
| Output torque | ≤3000g.cm |
| Wattage | ≤50watt |
| Driver | Built-in design or Customized |
| Bearing | Ball bearing or normal bearing |
| Lifetime | 3000hours~20000hours |
| Function | Brake, FG, CW/CCW, PWM |
| Protection | Over current protection, Over heating protection |
| Feature | Long Lifetime, Low Noise, High Efficiency, Stable and Reliable |
| Application | Fan, Car Vacuum Cleaner, Food Processor, Pump, Toy and Model, Power tool, Drill |
Product Description
The following motor voltage, speed, torque, shaft length, and shaft type can be customized according to your requirements.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Product Capacity & Capabilities
Brush DC Motor: Φ6mm—Φ60mm
Brushless DC Motor: Φ12mm-Φ42mm
Coreless Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear DC Motor: Φ4mm—Φ60mm
Stepper DC Motor: Φ6mm—Φ24mm
Vibration DC Motor: Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Gearbox Ratio: 1:4 --- 1:5000
Frequently Asked Questions
Q1: What's your main products?
We specialize in Diameter 4~60 mm DC Micro Motors and Gear Motors, including Auto DC motors, Electric motors, Brush/Brushless DC motors, Spur Gear motors, and Vibration motors.
Q2: What's the main usage of the micro DC gear motor?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industries, Banking Systems, automation industries, and electronic tools like power door locks and vending machines.
Q3: Do you accept customization?
Sure. We have a strong design team to provide technical solutions and customize motors to your specific needs.
Q4: What kind of data do I need to provide if I want to order?
Please provide your requirements for voltage, speed, torque, and overall dimensions to help us assist you better.
Q5: What if I don't know the specific motor data?
Please contact our sales team and tell us your application requirements; we will recommend the best fit model for your project.
Q6: Are the packaging services reliable for international shipping?
Yes, we provide professional, environmentally friendly, and efficient packaging to ensure the safety of your goods during transit.
Please feel free to contact us to get a quotation and recommendation!
