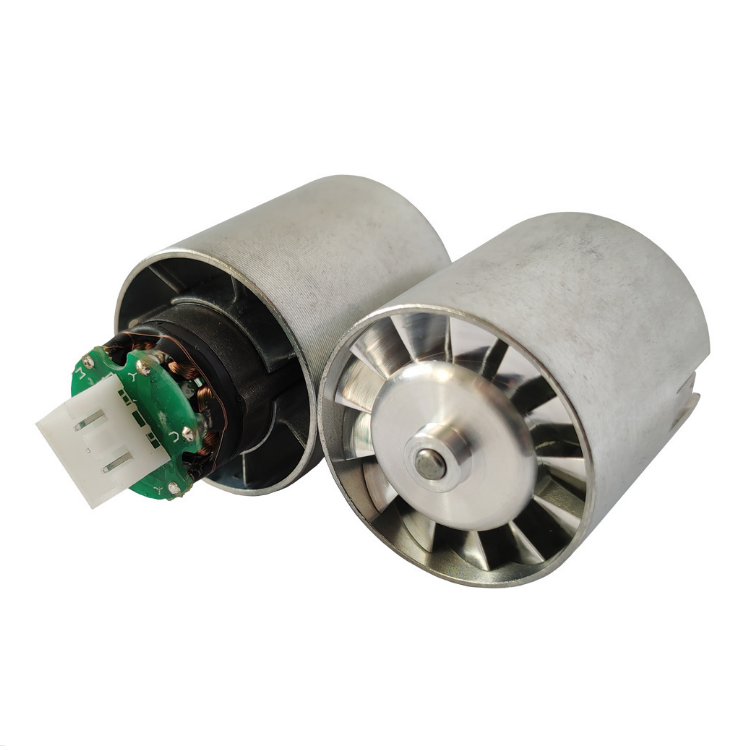

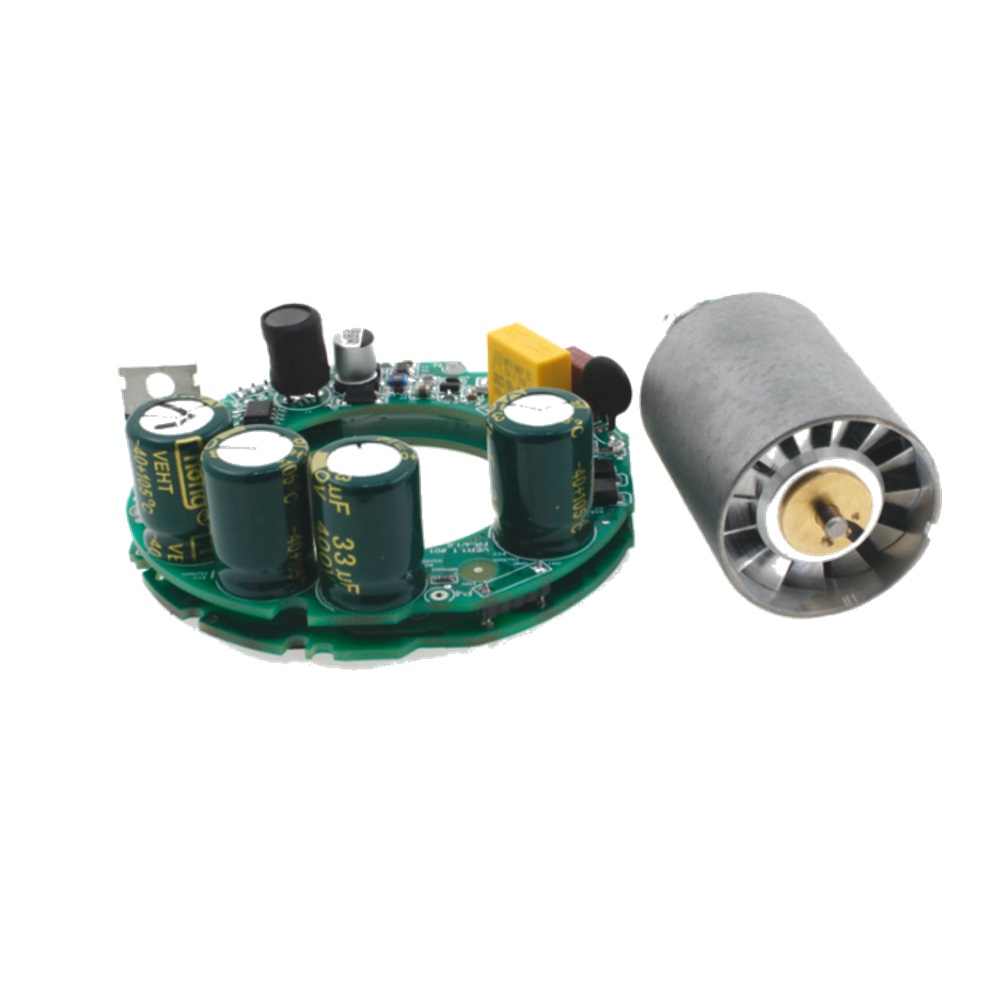

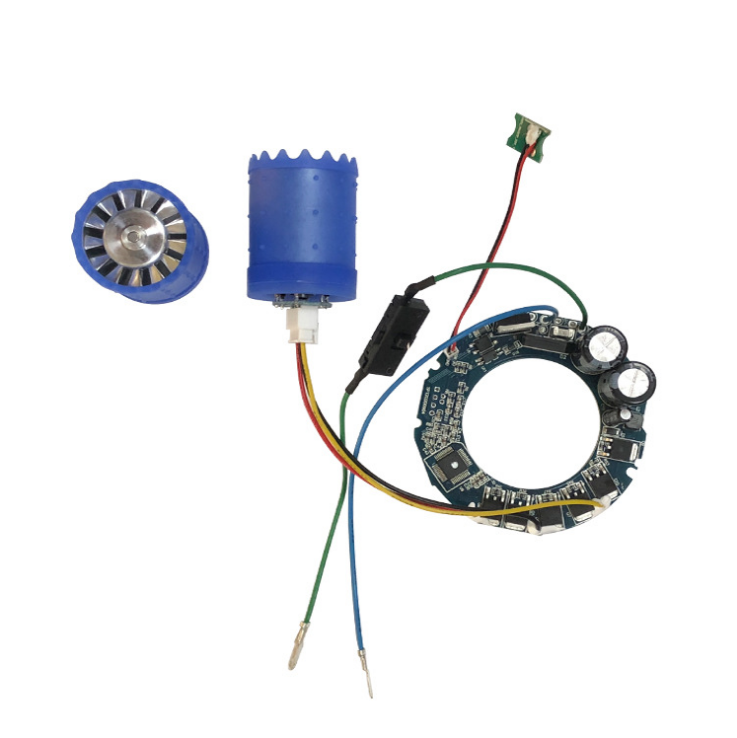

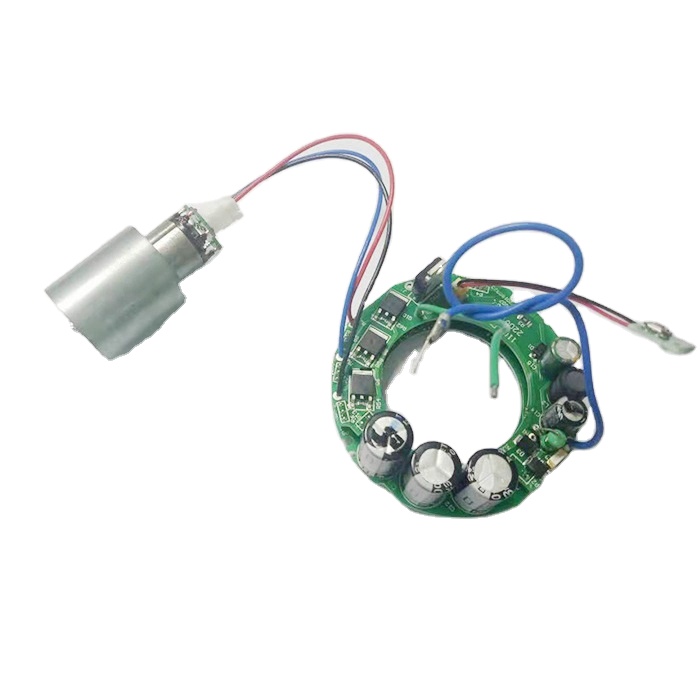

Specification
| Item | 100000rpm electric motor |
| Size | Diameter 29mm, Length 40mm |
| Voltage | 110V 220v 230v Customized (12V 24V 36V 48V) |
| Speed | 100000-110000rpm Closed loop |
| Rated Load | Ø 27 - 13 fan blades |
| Max Wattage | ≤125watt |
| Rated Current | ~0.58A |
| Rated Input Power | ≤80watt |
| Air Velocity | 19.0 m/s REF. |
| Lifetime | More than 1000 hours |
| Protection | Over current protection, Over heating protection |
| Feature | Long Lifetime, Low Noise, High Efficiency, Stable and Reliable |
| Application | Hair dryer |
Product Description
Customization Available: The following motor voltage, speed, torque, shaft length, and shaft type can be fully customized according to your requirements.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Product Capacity
✔ Brush Dc Motor: Φ6mm—Φ60mm
✔ Brushless Dc Motor: Φ12mm-Φ42mm Coreless
✔ Brush/Brushless DC Motor: Φ4mm—Φ45mm
✔ Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
✔ Stepper Dc Motor: Φ6mm—Φ24mm
✔ Vibration Dc Motor: Φ4mm—Φ45mm
✔ Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
✔ Speed Range: 0.1-80,000RPM
✔ Output Torque: 0.01-500Kg.cm
✔ Shaft Length: 0.1-150mm
✔ Gearbox Ratio: 1:4---1:5000
FAQ
Q1: What's your main products?
Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Vibration motor etc.
Q2: What's the main usage of the micro dc gear motor?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industry, Banking Systems, automation industry, vending machines, and electric door locks.
Q3: Do you accept customization?
Sure. As we have a strong design team, any customization requirements will receive our professional technical response.
Q4: What kind of data do I need to provide if I want to order?
Please kindly provide the required voltage, speed, torque, and overall dimensions for your application.
Q5: What if I don't know the specific motor data?
Please contact our sales team and describe your requirement; we will recommend the best fit model for your project.
Q6: Are the products reliable for long-term use?
Yes, our motors feature long lifetime, low noise, and high efficiency, with a lifetime exceeding 1000 hours for specialized models.
Please feel free to contact us to get a quotation and recommendation!
