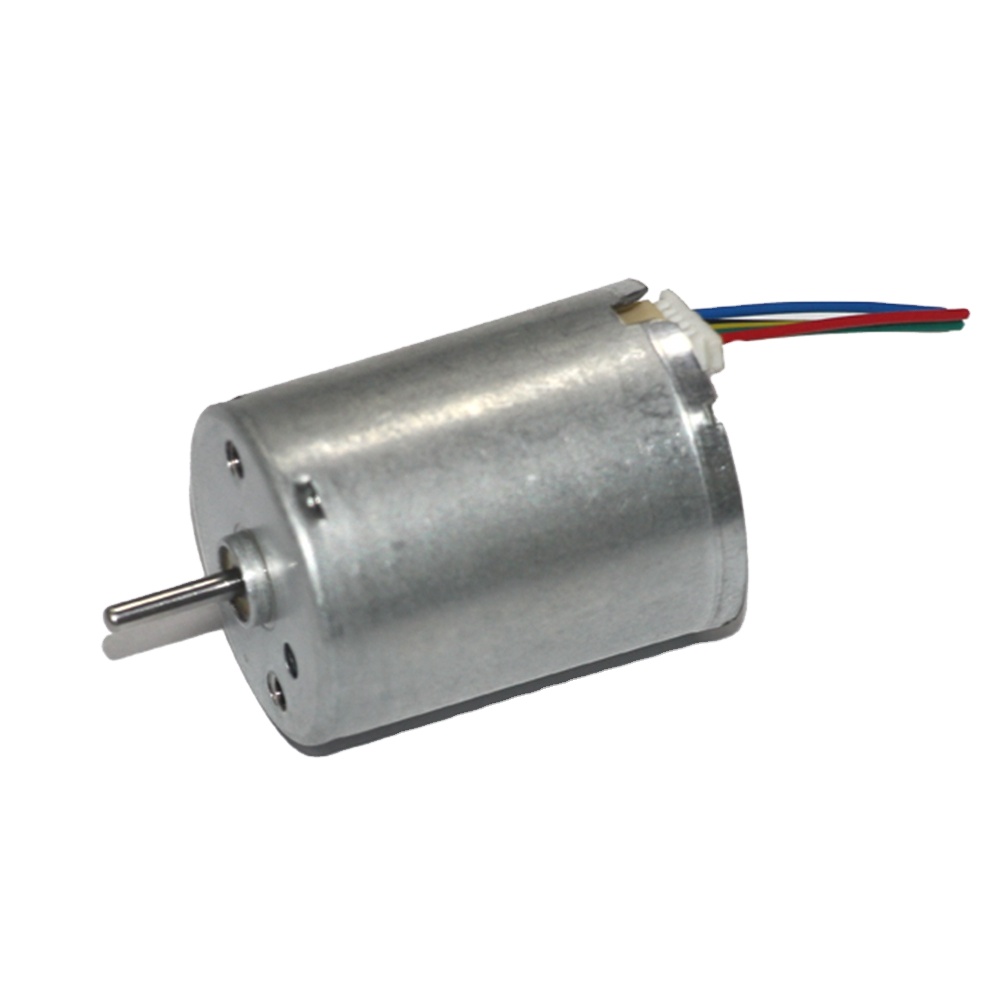

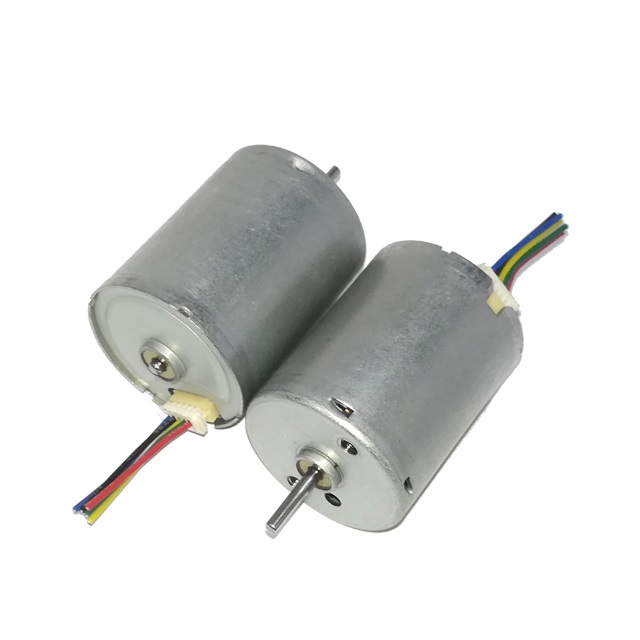

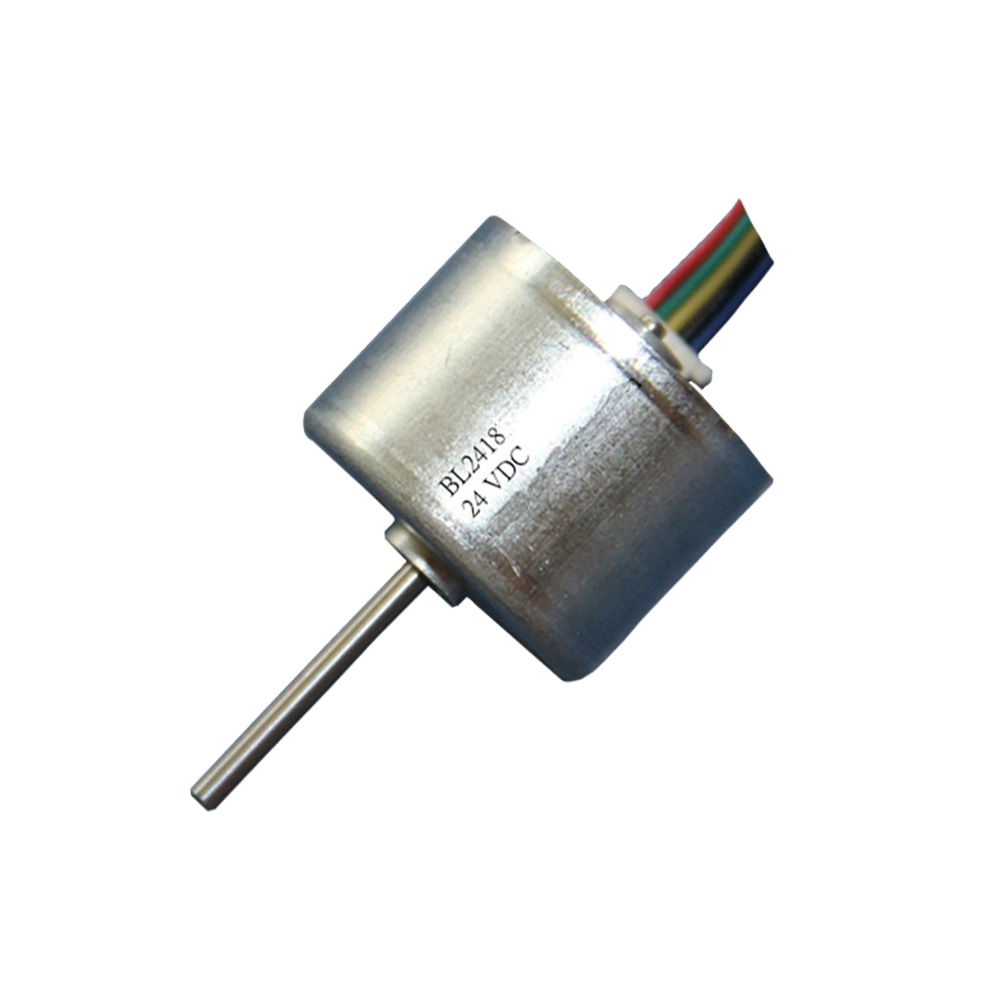

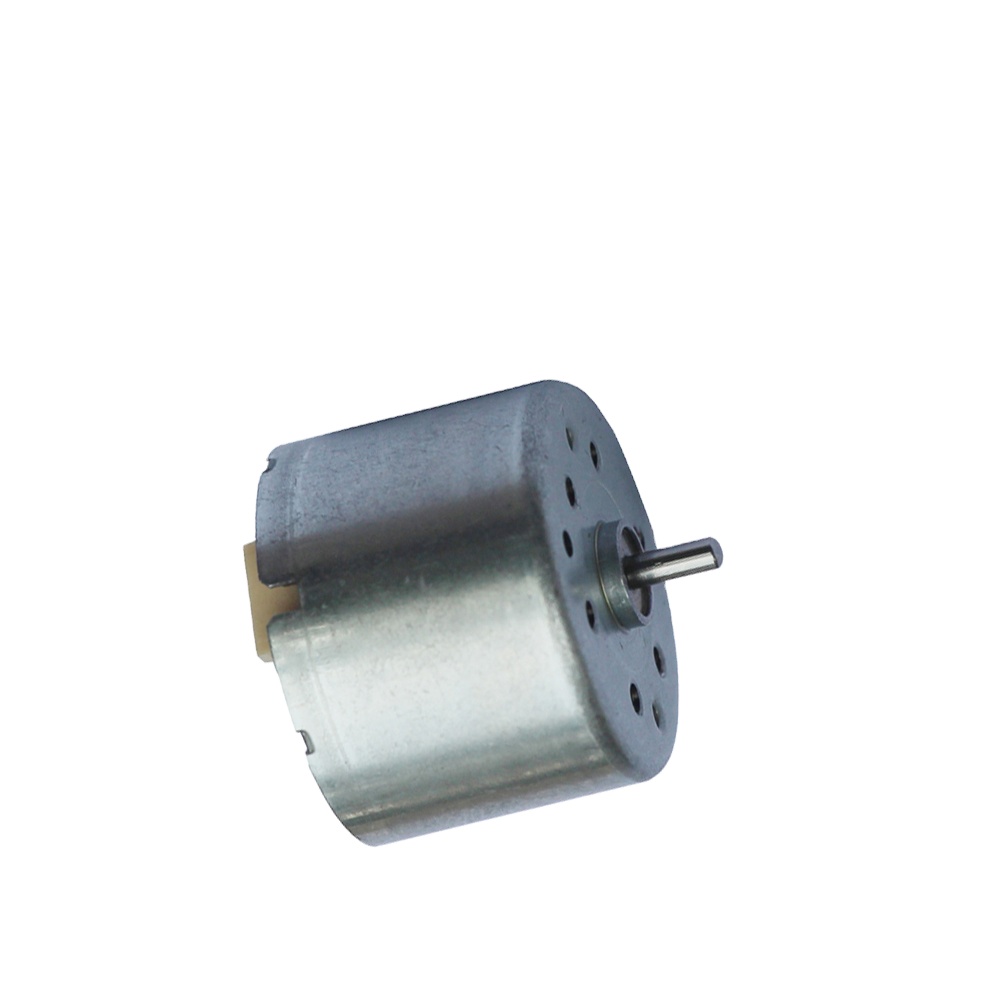

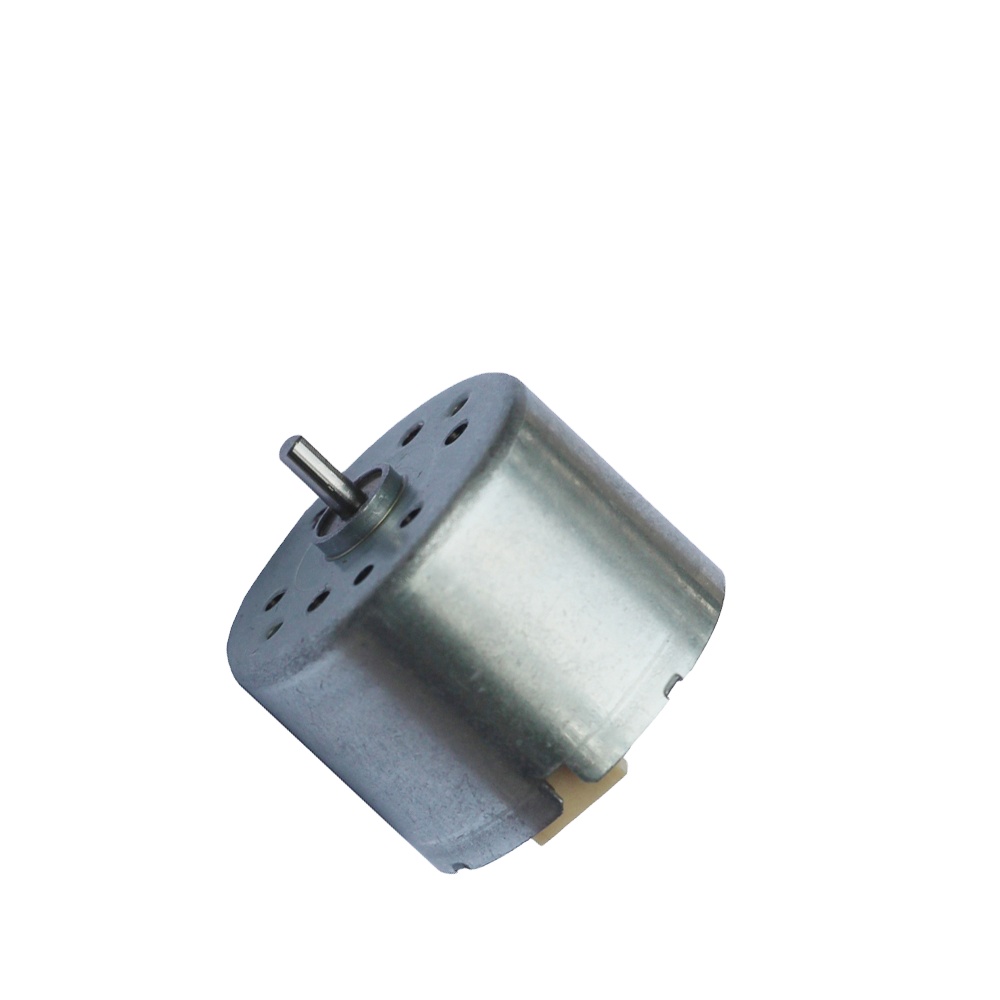

Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor

1 / 5

Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor

Send Inquiry

Product Description

Specification

Item	Mini Brushless Motor
Size	Diameter 24mm, Length 18mm, 30mm
Voltage	3.7V~26V
Unload Speed	2000-11000rpm
Output torque	≤350g.cm
Wattage	≤8watt
Driver	Built-in design or Customized
Bearing	Ball bearing or normal bearing
Lifetime	3000hours~20000hours
Function	FG, CW/CCW, PWM
Protection	Over current protection, Over heating protection
Feature	long lifetime, low noise, high efficiency, stable and reliable
Application	Fan, Car Vacuum Cleaner, Food Processor, Pump, Toy and Model, Power tool, Drill

Product Description

The following motor's voltage, speed, current, wattage, torque, shaft length, and type can be customized.

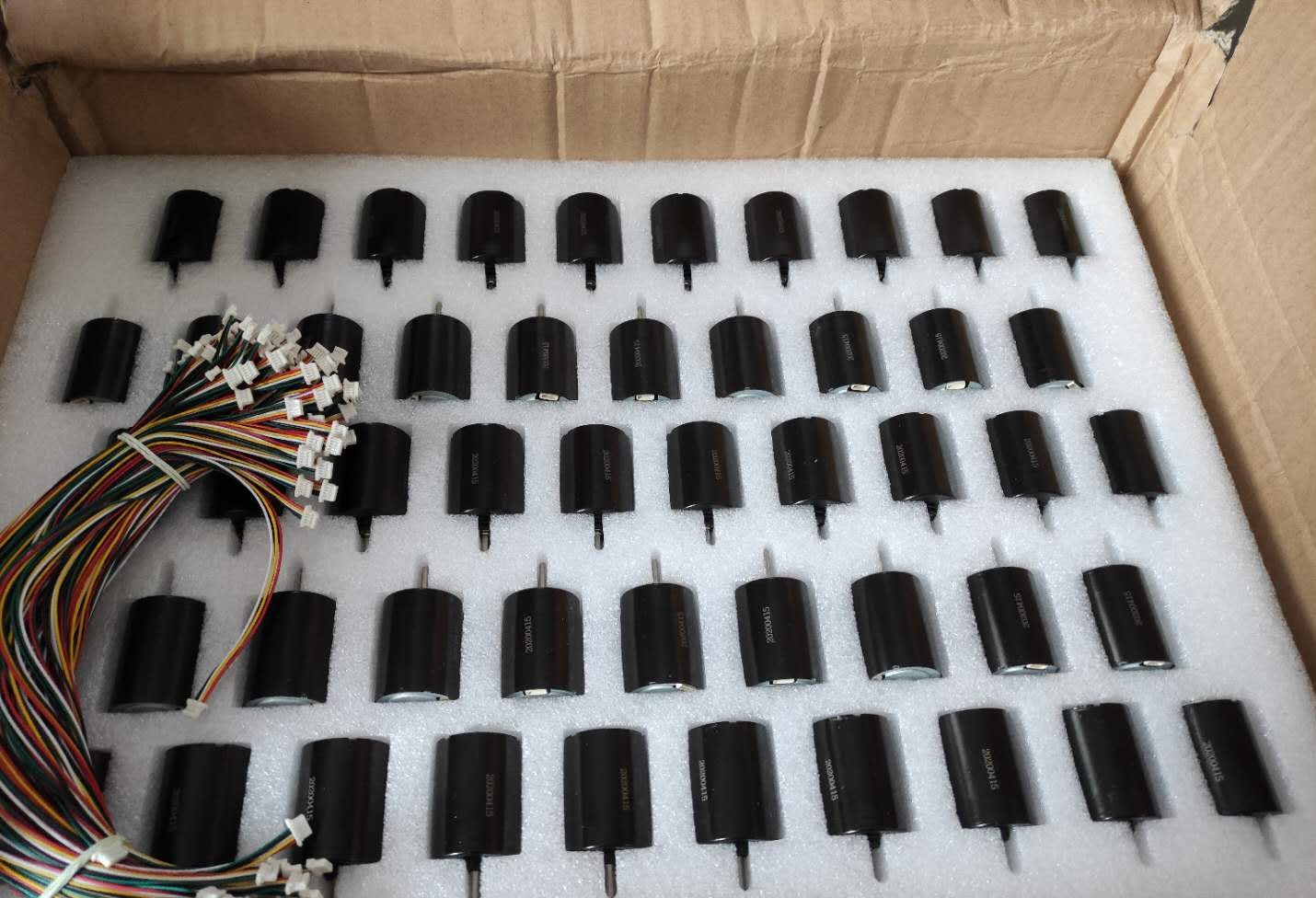

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Capacity & Capability

Professional micro motor manufacturer for 10 years.

Brush Dc Motor: Φ6mm—Φ60mm

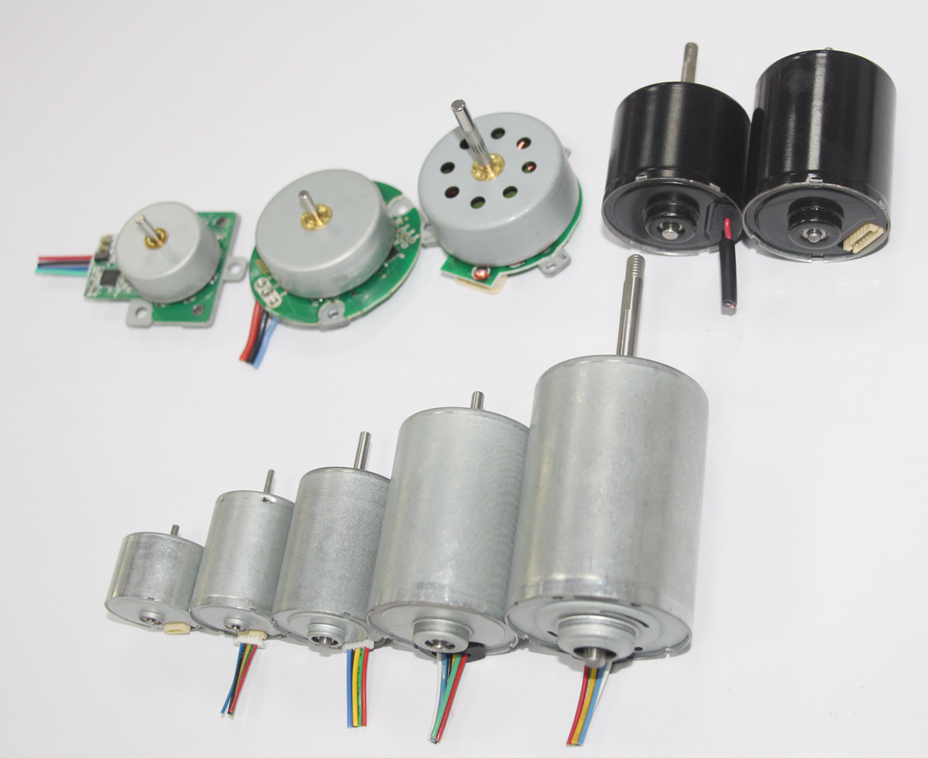

Brushless Dc Motor: Φ12mm-Φ42mm

Coreless Brush/Brushless DC Motor: Φ4mm—Φ45mm

Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm

Stepper Dc Motor: Φ6mm—Φ24mm

Vibration Dc Motor: Φ4mm—Φ45mm

Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V

Speed Range: 0.1-80,000RPM

Output Torque: 0.01-500Kg.cm

Shaft Length: 0.1-150mm

Gearbox Ratio: 1:4---1:5000

Frequently Asked Questions

What's your main products? Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.

What's the main usage of the micro dc gear motor? Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipment, payment equipment, vending machines, power door lock, electric door lock.

Do you accept customize? Sure, as we have a strong design team, any problems will get our technical answer.

What kind of data do i need to provide if i want to order? Please kindly tell us your voltage, speed, torque and overall dimension.

What if i don't know the above data? Please contact our salesman, tell us your requirement, we will recommend the best fit model.

Is technical support available? Yes, our engineering team is available to assist with motor selection and technical specifications to ensure the best performance for your application.

Please feel free contact get an quotation and recommend!
