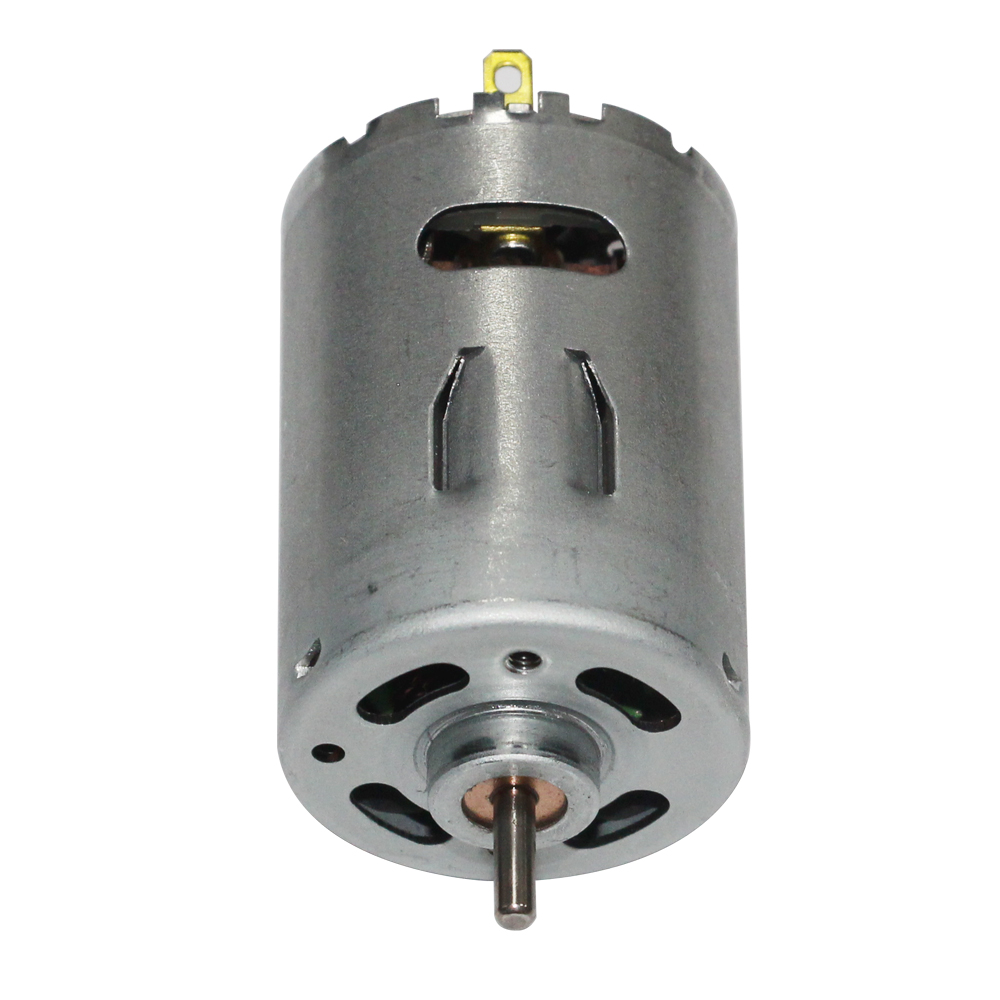

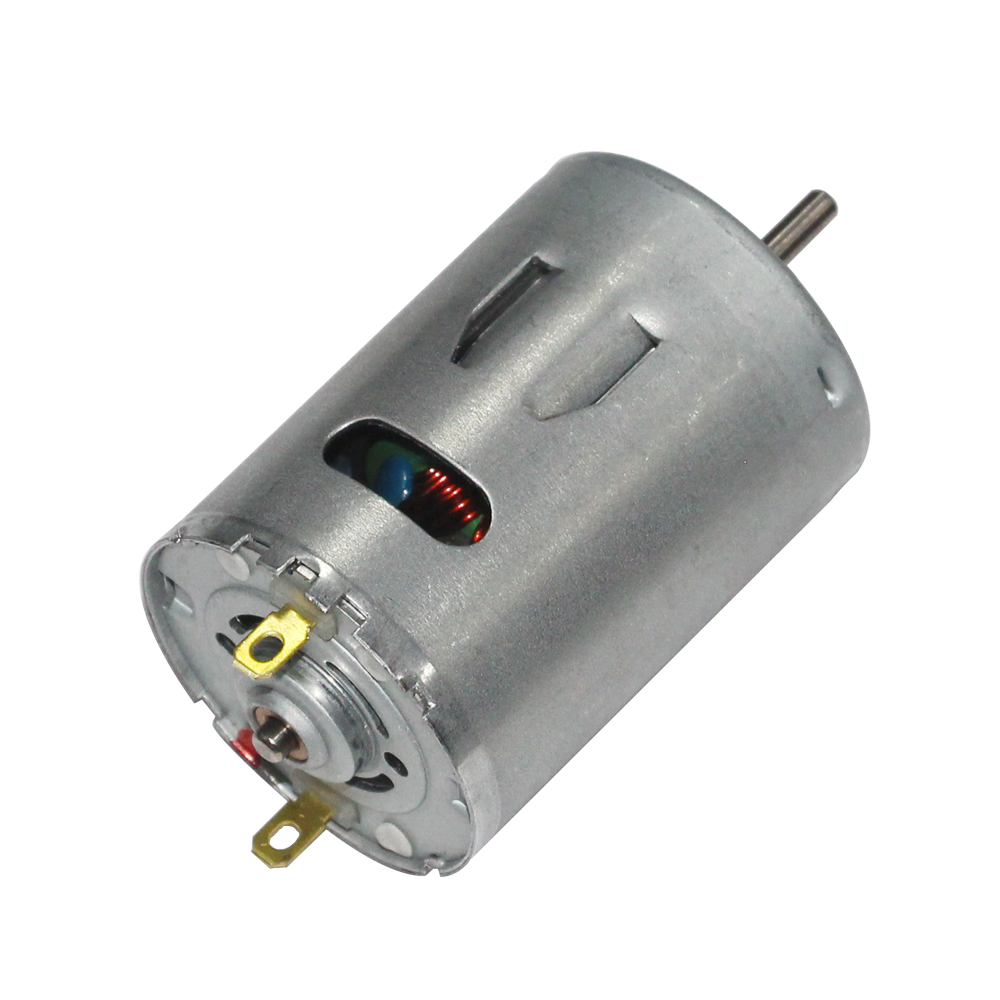

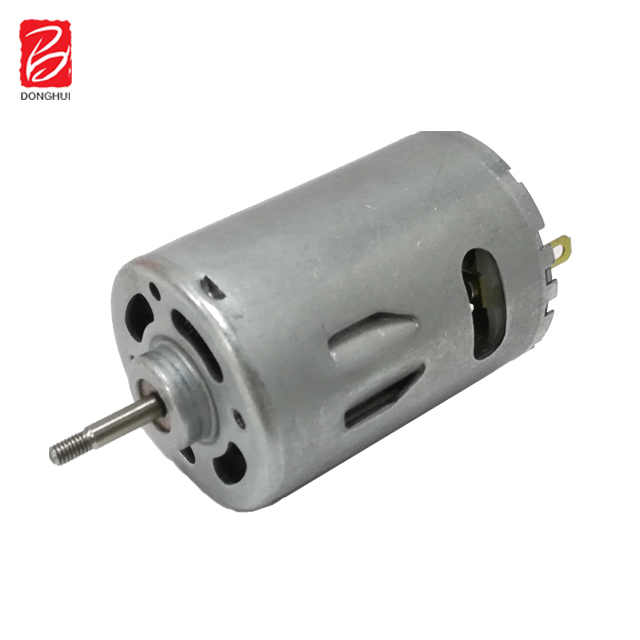

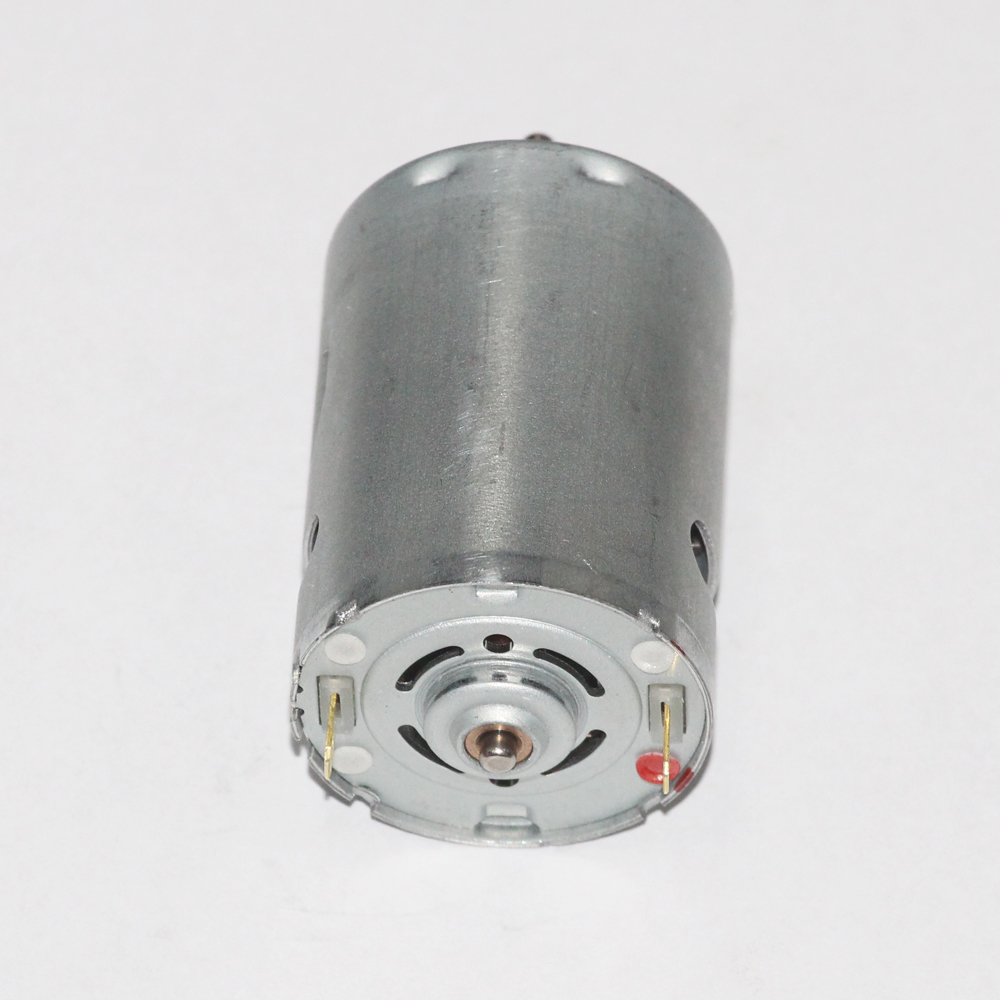

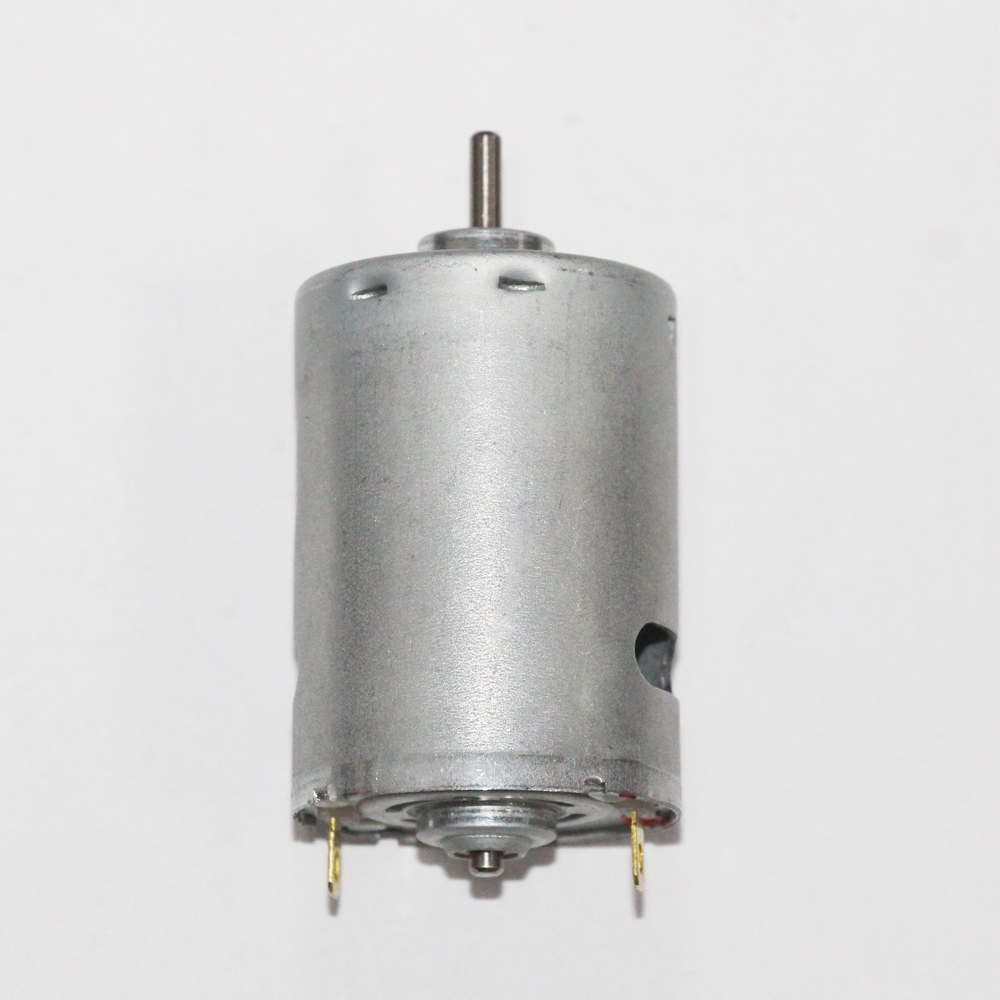

rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
1 / 5
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque

rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque

Send Inquiry

Product Description

⚙️ Product Description
Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance Certification: ROHS, ISO9001 Type: Micro Motor
Torque: 1988 G.cm Construction: Permanent Magnet Commutation: Brush
Protect Feature: Drip-proof Speed(RPM): 19600 rpm Current(A): 4.1A
Output Power: 60W Voltage(V): 6-24V Efficiency: IE 1
Shaft: 3.175 MM Weight: 150g No Load Speed: 23400 rpm
📋 Technical Specifications
RS 540 DC Motor: High speed 7.2V DC micro brush motor for RC cars with high torque and low noise.
✅Low noise, high torque, and long-life performance.
✅Motor Voltage: 3V-24V RS 540 DC Motor.
✅Shaft Diameter: 3.175 mm.
✅Motor Dimensions: Diameter 35.8mm, Length 50mm (Tube shape).
✅Output Power: Approx 1W ~ 35W.
✅Direction of Rotation: CW & CCW (Clockwise and Counter-Clockwise).
✅Typical Applications: Household appliances, massagers, vibrators, and air compressors.
✅Customization: Specifications and shaft length can be tailored to requirements.
📦 Packaging & Shipping
Packaging Detail: International standard packaging or customized customer standard packaging.
Delivery Detail: Less than 30 days.
🖼️ Product Visuals & Services

RS540 Micro DC Motor, DC Gear Motor, and Brushless Motor options:

RS 540 DC Motor

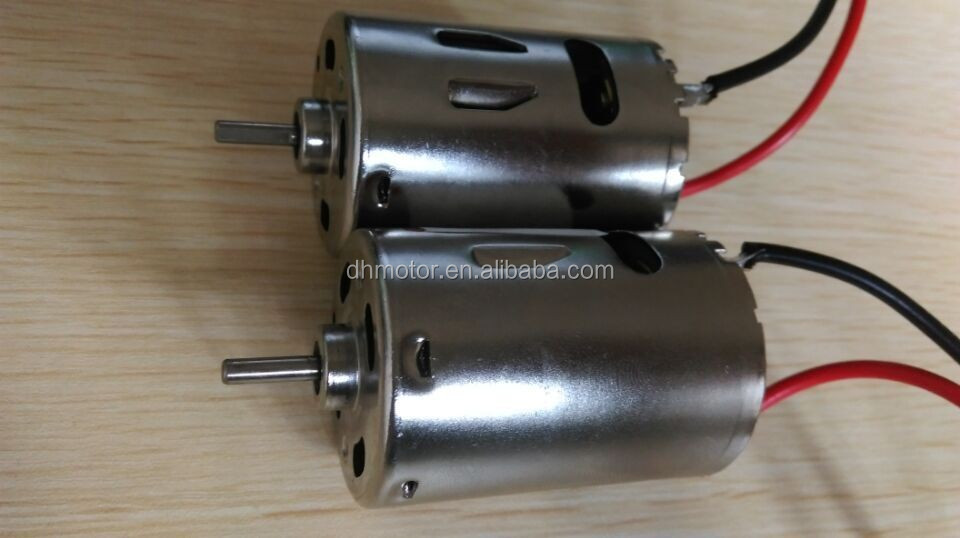

RS 540 Motor View 1

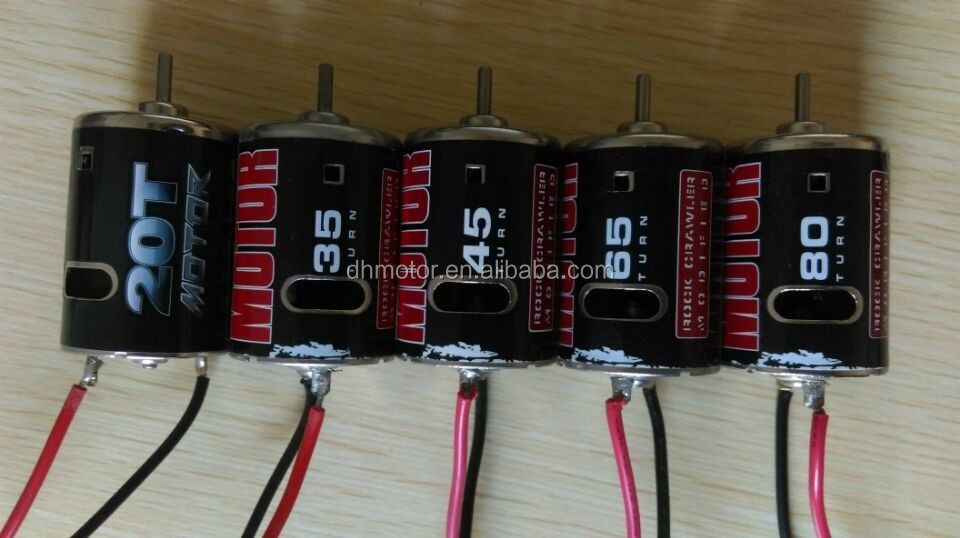

RS 540 Motor View 2

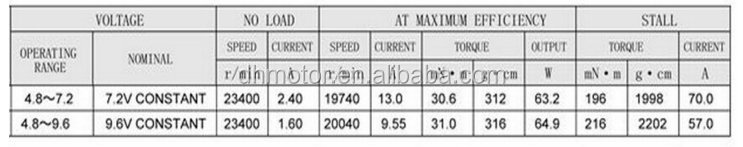

Motor Specifications Diagram
Technical Drawing
🏭 Manufacturing Capabilities
Factory Line 1
Factory Line 2
Factory Line 3

Committed to the development and production of micro motors since 2003, including four major series: Micro DC motors, DC gear motors, coreless motors, and brushless motors.

🔹Product Range: Diameter 4mm - 100mm.
🔹Voltage Range: DC 1.5V - 42V; AC rectify 100V - 240V.
🔹Speed Range: 1 RPM - 30,000 RPM.
🔹Stall Torque: 1g.cm - 30kg.cm.
❓ Frequently Asked Questions
Q1: What is the operating voltage range for the RS-540 motor?
A1: The standard operating voltage range is between 6V and 24V, though variants can support 3V up to 42V depending on specific requirements.
Q2: Can the motor shaft be customized?
A2: Yes, the shaft length and specifications can be tailormade according to customer requirements. The standard diameter is 3.175mm.
Q3: What are the typical applications for this micro motor?
A3: It is widely used in RC cars, household appliances (like massagers and kitchen utensils), power tools, and office automation equipment.
Q4: What certifications do your motors hold?
A4: Our products are certified under ROHS, CE, and ISO9001:2000 standards to ensure high quality and environmental compliance.
Q5: What is the lead time for a standard order?
A5: Delivery typically takes less than 30 days depending on the order volume and customization needs.
Q6: Does the motor support reversible rotation?
A6: Yes, the RS-540 motor supports both Clockwise (CW) and Counter-Clockwise (CCW) rotation.
