20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model
20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model
20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model
20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model
20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model
1 / 5
20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model
20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model
20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model
20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model
20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model

20150 FC-280SC 12V DC Electric Car Door Lock Motor Permanent Magnet Construction with Brush Commutation 20150 Model

Send Inquiry

Product Description

■ Product Description
Quick Details
Place of Origin: Guangdong China (Mainland) Model Number: FC-280SC-20150
Usage: Car, Scanner Certification: ROHS
Type: Micro Motor Torque: 335G.CM AT STALL
Construction: Permanent Magnet Commutation: Brush
Protect Feature: Closed Speed(RPM): 11800rpm (No load)
Voltage(V): 12V Output Power: 4.5W
Brush Type: Carbon brushes Efficiency: IE 1
Bearing Type: Oil-impregnated bearing Rotation: Reversible
■ Packaging & Shipping
Packaging Details: 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail: Within 30 days
■ Specifications & Visuals
Electric Car Door Lock Motor
12V DC Electric Car Lock Motor Features:
  • ROHS Certification
  • Permanent Magnet Construction
  • Plastic End Cap
  • Low Noise & Long Life
  • High Efficiency 11800rpm
  • Application: Door lock Actuator
Product Photos

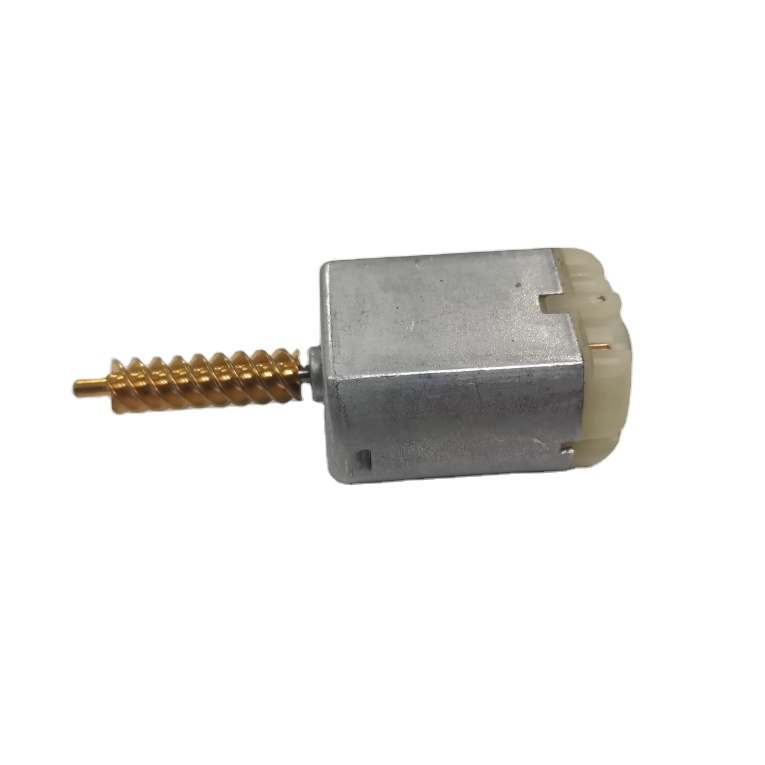

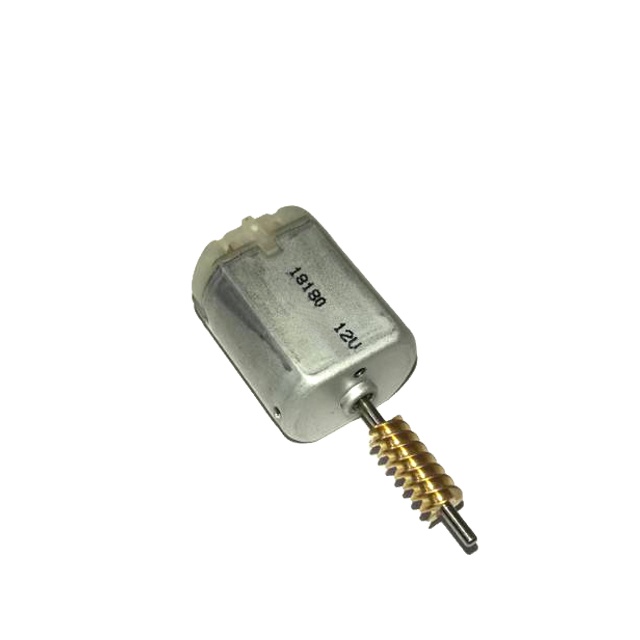

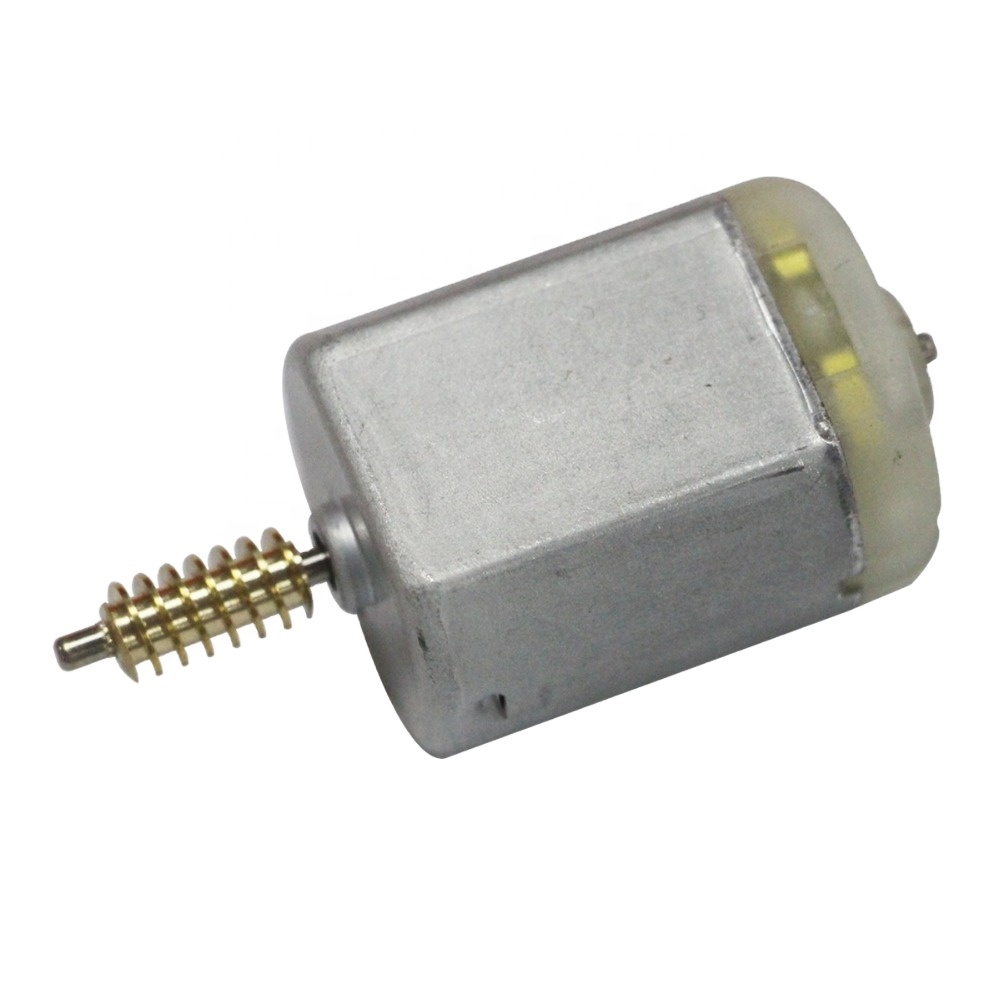

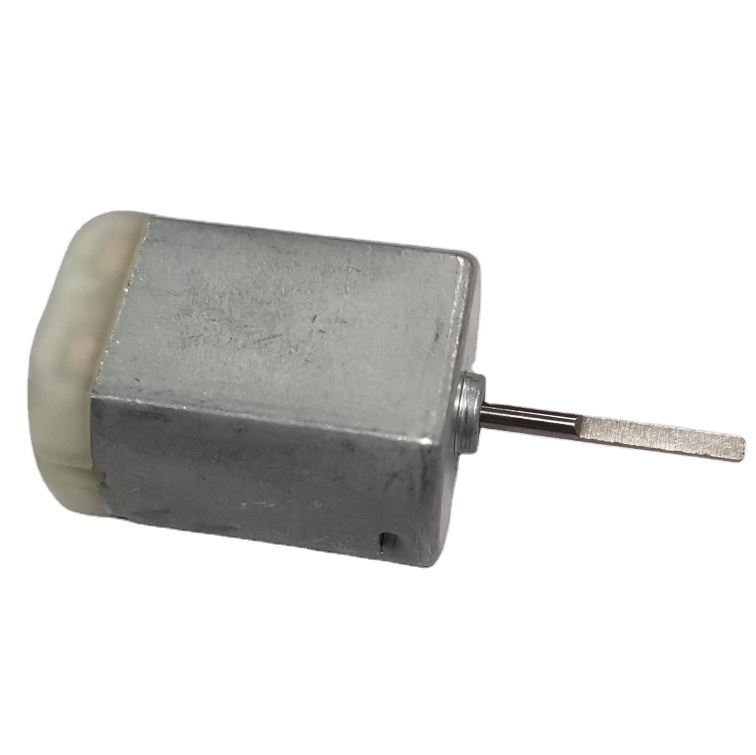

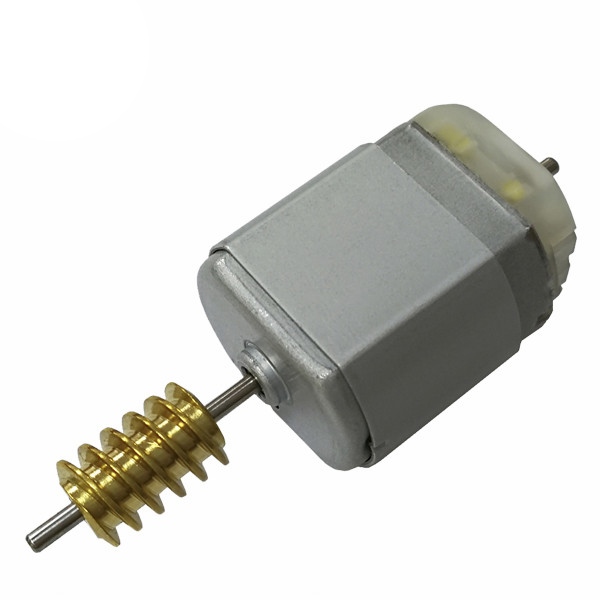

Motor Photo 1
Motor Photo 2
Motor Photo 3
Production Detail 1
Production Detail 2
Production Detail 3
Production Detail 4
Production Detail 5
Production Detail 6

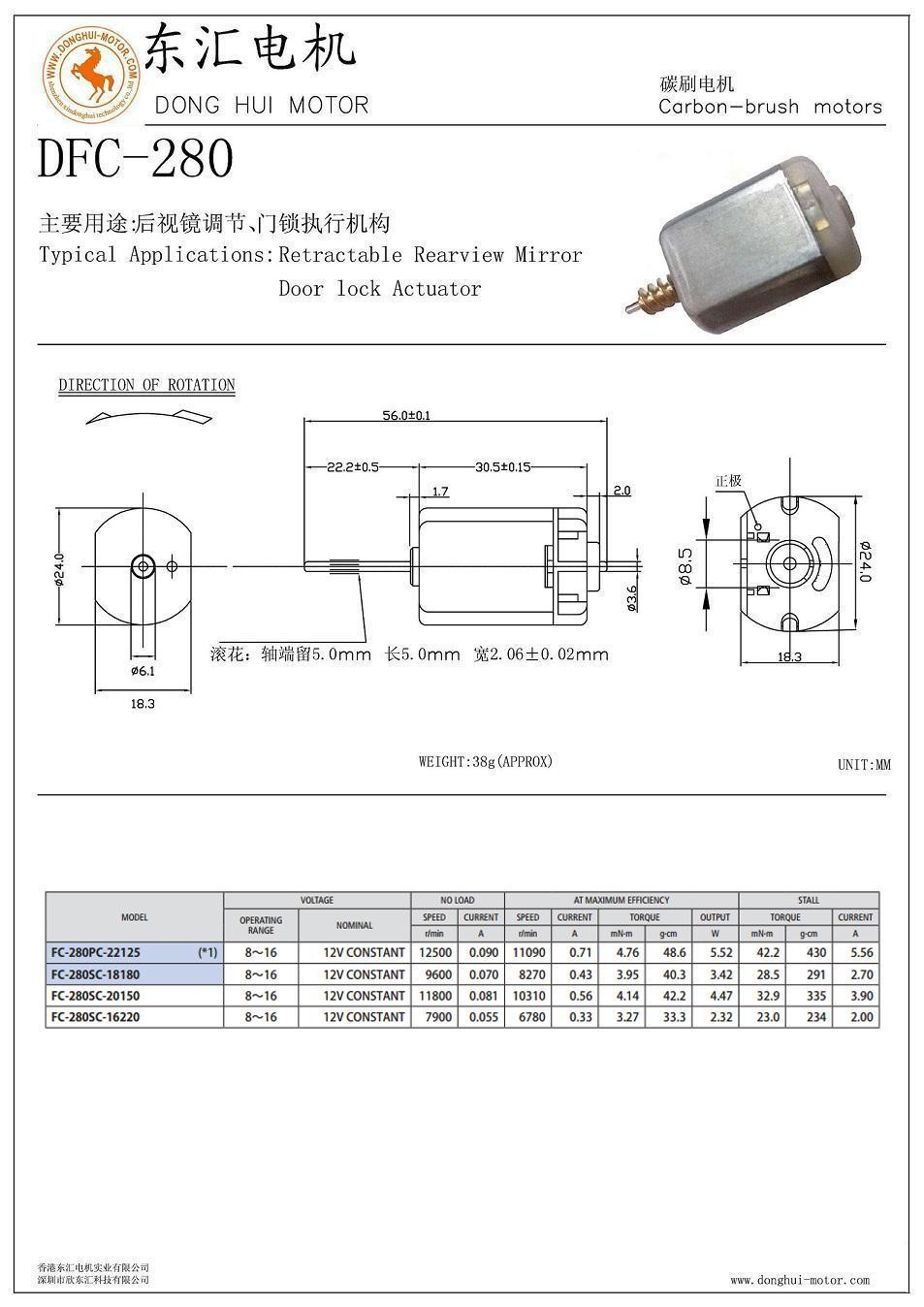

Outline Drawing and Basic Parameters
Technical Drawing
■ Professional Capabilities
Workshop
Production Line

A specialized manufacturer committed to the development and production of micro motors since 2003. The product range includes four major series: Micro DC motors, DC gear motors, coreless motors, and brushless motors. These are widely utilized in consumer electronics, automotive products, medical equipment, and office automation.

  • Diameter Range: 4mm - 100mm
  • DC Voltage Range: 1.5V - 42V
  • AC Rectify: 100V - 240V
  • Speed Range: 1 RPM - 30,000RPM
  • Stall Torque: 1g.cm - 30kg.cm
Frequently Asked Questions (FAQ)
Q1: What is the primary application for the FC-280SC-20150 motor? A1: This motor is primarily designed for automotive door lock actuators, scanners, and other automotive products requiring high-precision movement.
Q2: Can the rotation of this motor be reversed? A2: Yes, the motor features a reversible rotation design, making it suitable for two-way mechanical actions like locking and unlocking.
Q3: Is the motor compliant with international safety standards? A3: Yes, it is fully ROHS certified, ensuring it meets strict environmental and safety requirements for electronic components.
Q4: What are the main materials used in its construction? A4: It utilizes a permanent magnet construction with carbon brushes and a high-quality plastic end cap for durability and low noise.
Q5: What is the lead time for mass production orders? A5: Typically, delivery is handled within 30 days after order confirmation, depending on the quantity and specific requirements.
Q6: Does the motor come with specialized bearings? A6: Yes, it is equipped with oil-impregnated bearings to ensure smooth operation and a long service life.
