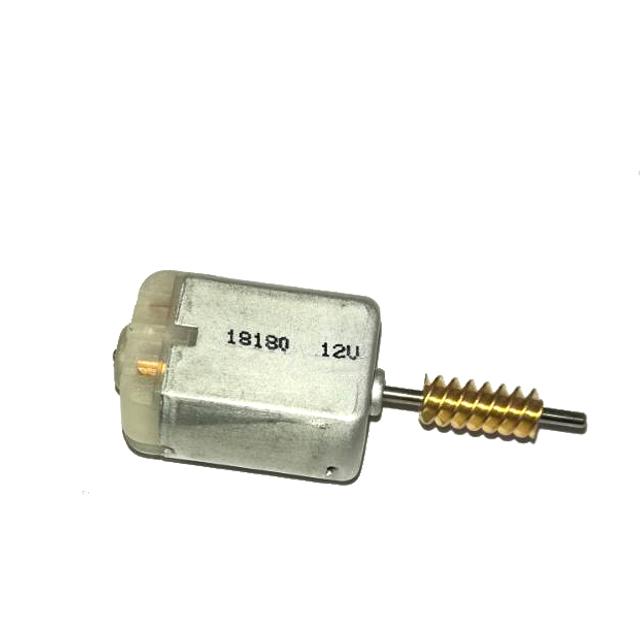

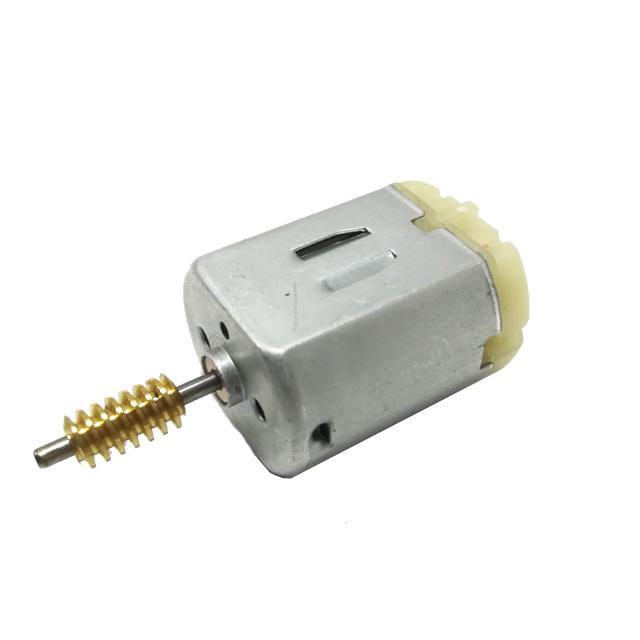

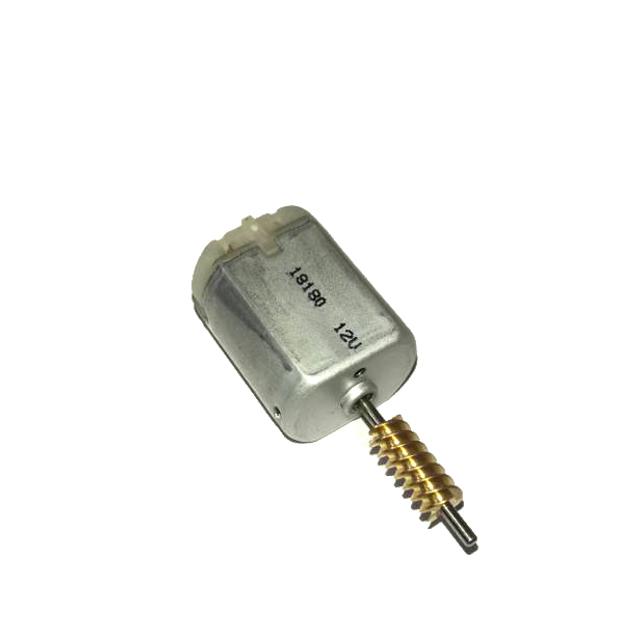

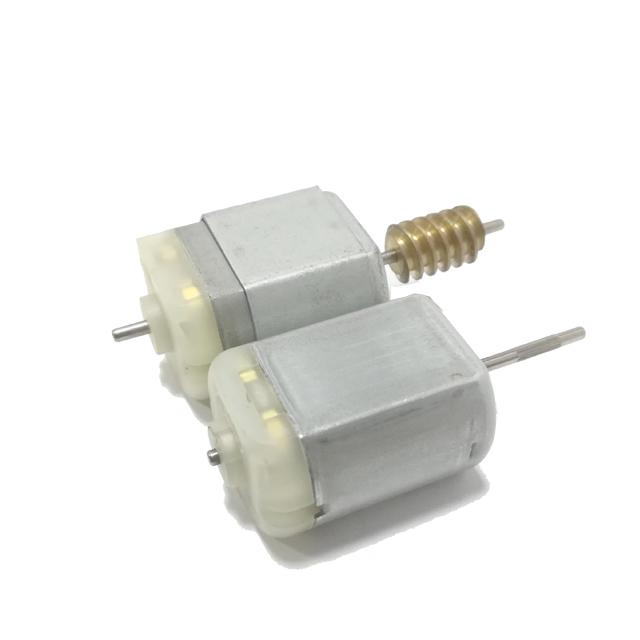

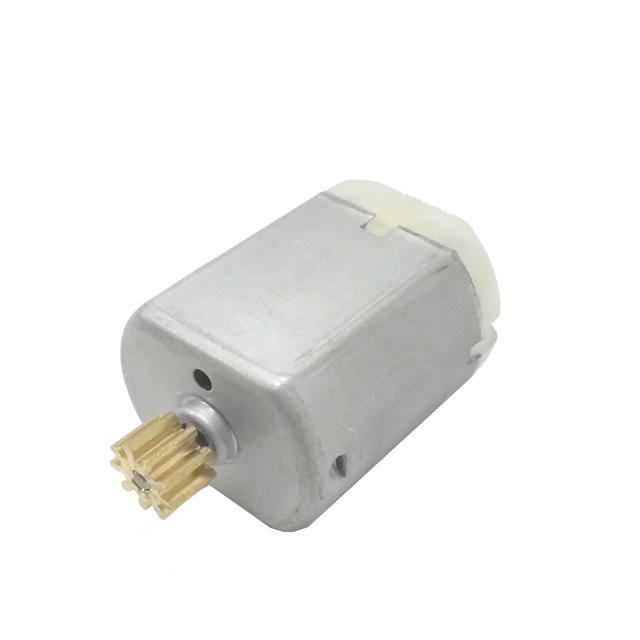

FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
1 / 5
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor

FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor

Send Inquiry

Product Description

Product Description
Place of Origin Guangdong, China Model Number FC 280SC 18180
Usage Car, Scanner Certification ROHS
Type Micro Motor Torque 291G.CM
Construction Permanent Magnet Commutation Brush
Protect Feature Closed Speed (RPM) 9600rpm (No load)
Continuous Current 0.1-5A Output Power 1-6W
Voltage (V) 12V Efficiency IE 1
End Cap Plastic End Cap Rotation Reversible
Brush Type Carbon brushes Bearing Type Oil-impregnated bearing
Packaging & Shipping
Packaging Details 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail Within 30 days
Technical Specifications
FC-280 12v Dc Motor
12V DC Motor for Car Door Lock Actuator
  • High Speed: 9600rpm at 12V
  • ROHS Certified quality standards
  • Permanent Magnet Construction for stable performance
  • Durable Plastic End Cap and Carbon Brushes
  • Engineered for Low noise and long service life
  • Application: Specifically for Door lock Actuators and Automotive Products
Product Gallery

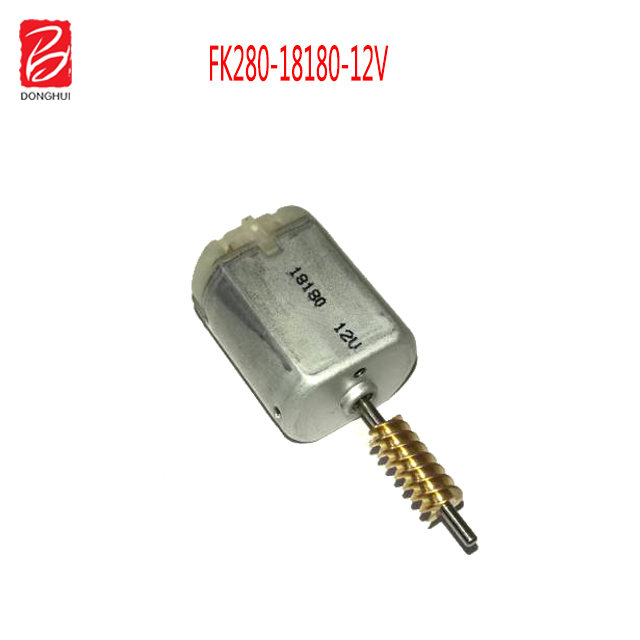

Motor Photo 1

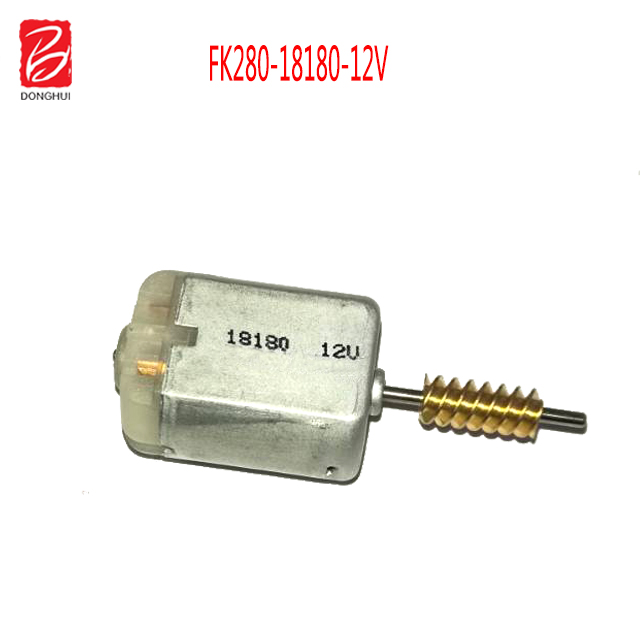

Motor Photo 2

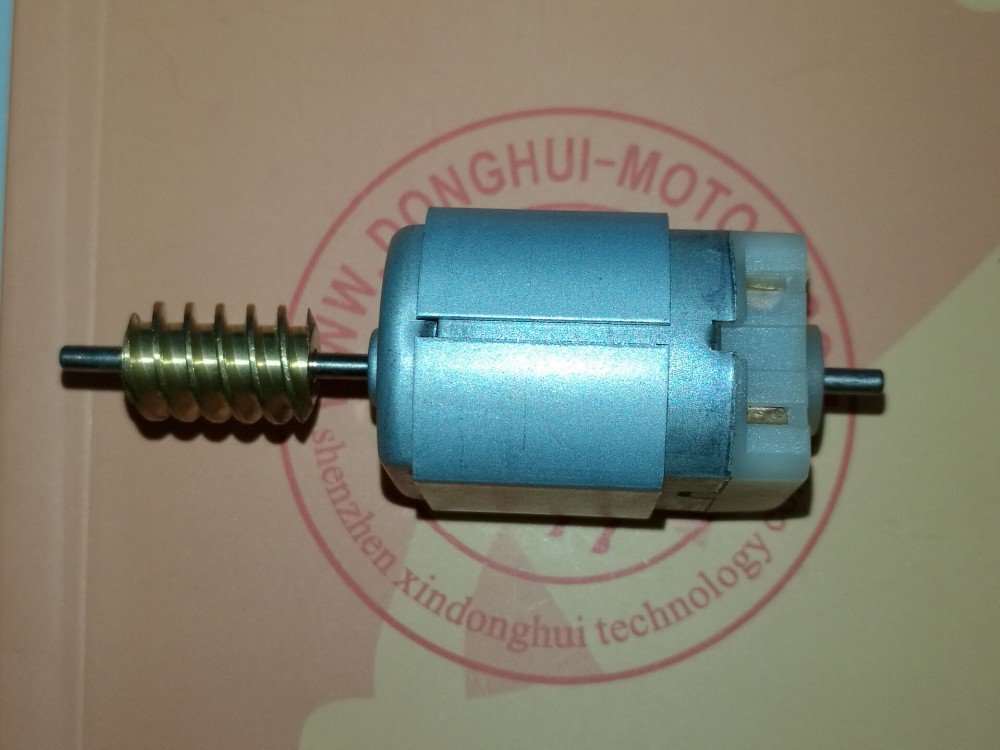

Motor Photo 3

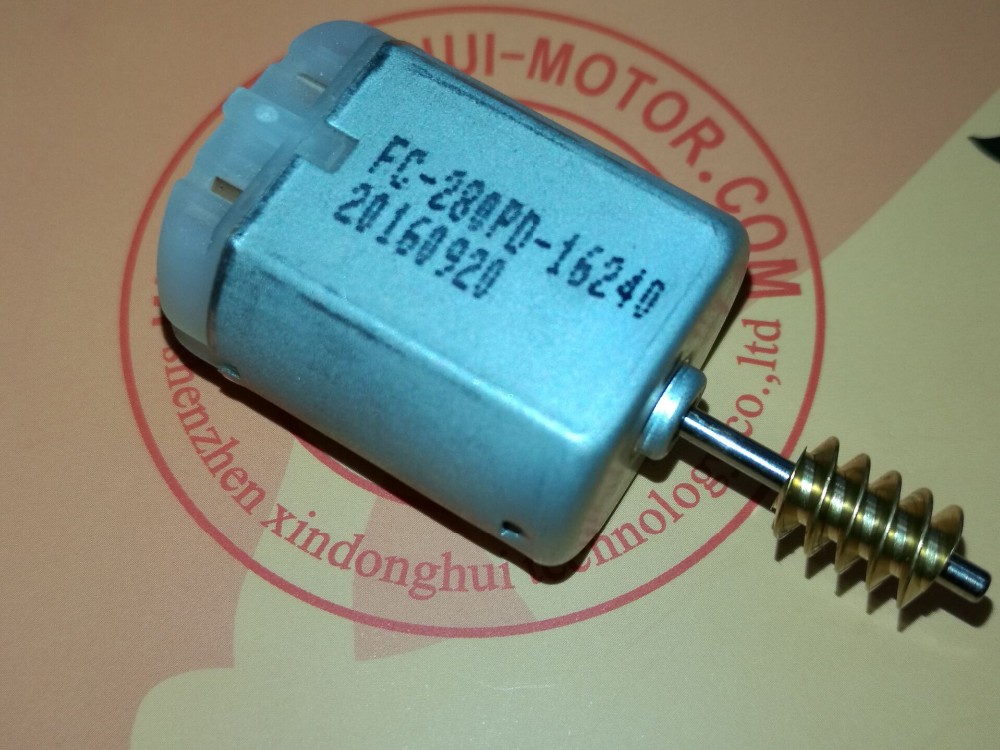

Motor Photo 4

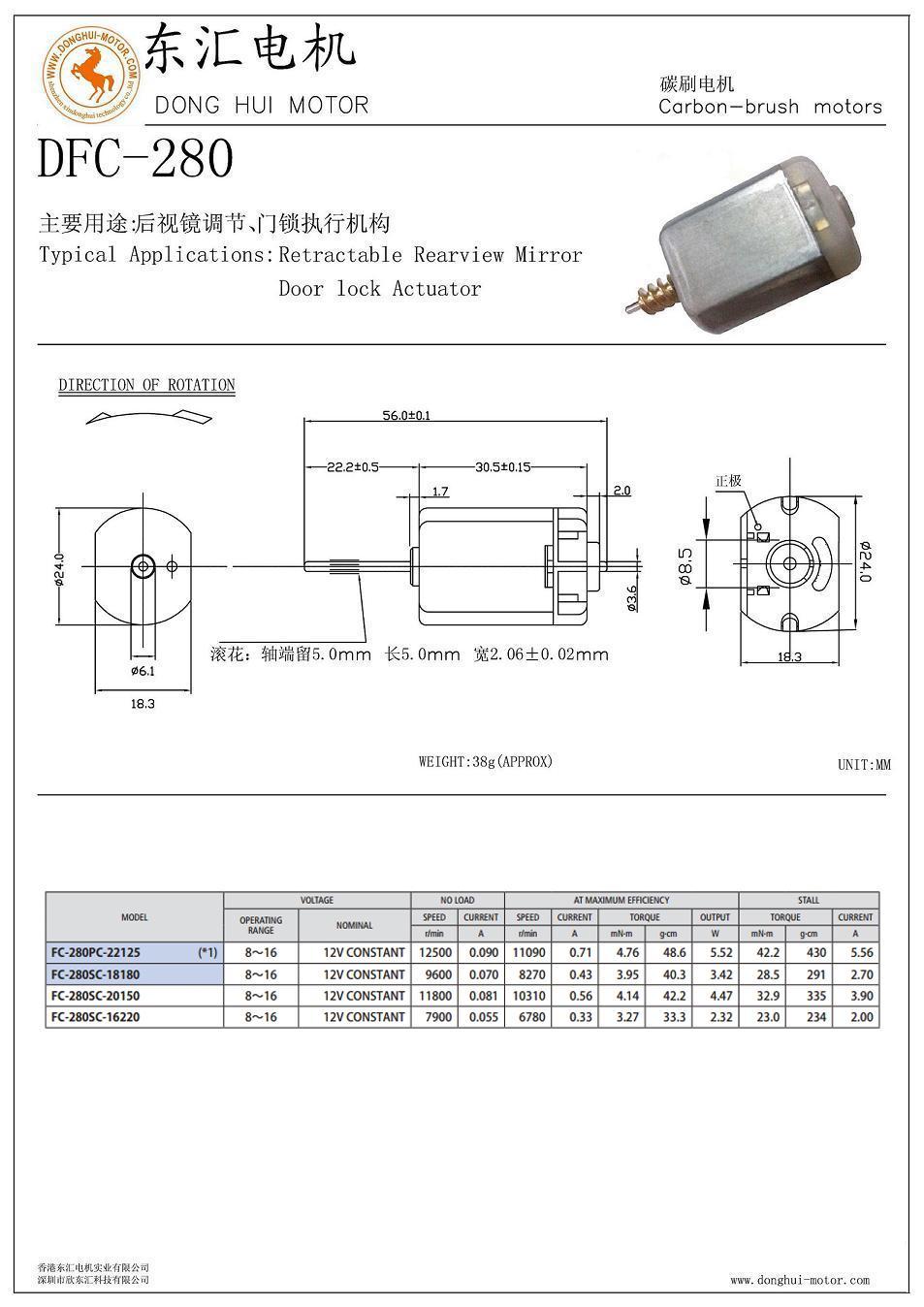

Outline Drawing & Parameters
Technical Drawing
Manufacturing Capabilities

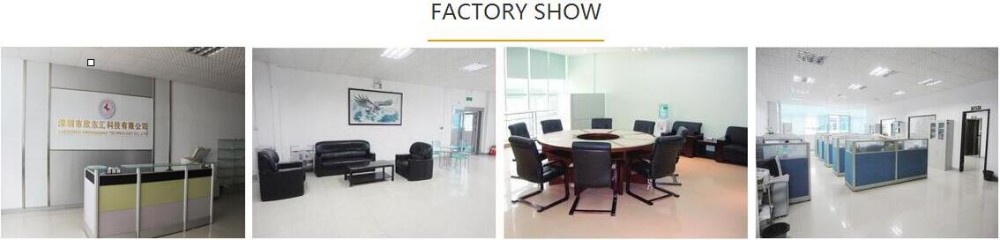

Factory Overview
Production Line

Dedicated to the development and production of micro motors since 2003, our expertise covers four major product series: Micro DC motors, DC gear motors, coreless motors, and brushless motors. Our components are essential in consumer electronics, automotive fields, medical equipment, and office automation.

  • Main Products: Dia4~100mm DC Micro Motors, Vibration motors, and Gear motors.
  • Voltage Versatility: DC Range 1.5V - 42V; AC Rectify options (100V-240V).
  • Performance: Speed range from 1 RPM up to 30,000 RPM.
  • Torque Range: 1g.cm to 30kg.cm.
Frequently Asked Questions
Q1: What is the primary application for the FC-280SC-18180 motor? A: This motor is specifically designed for automotive applications, primarily used in car door lock actuators and central locking systems.
Q2: Can the rotation of this motor be reversed? A: Yes, the motor features a reversible rotation design, making it suitable for mechanical movements that require bidirectional operation.
Q3: What are the key certifications for this product? A: The motor is ROHS certified, ensuring it meets international environmental and safety standards for electronic components.
Q4: What materials are used for the motor's internal components? A: It utilizes a permanent magnet construction, carbon brushes for reliable commutation, and oil-impregnated bearings for smooth operation.
Q5: What is the standard lead time for bulk orders? A: Our standard delivery time is generally within 30 days, depending on the specific order quantity and customization requirements.
Q6: Is this motor suitable for high-speed applications? A: Yes, it reaches a no-load speed of 9600rpm at 12V, providing efficient performance for micro-motor needs.
