Motor's voltage, speed, ratio, torque, shaft length can be customized.
| Model |
Size (mm) |
Voltage (V) |
Resistance (Ω) |
Unload Speed (rpm) |
Unload Current (mA) |
Load Torque (mNm) |
Load Speed (rpm) |
Load Current (mA) |
| DCL-8520-20 | Φ8.5*20 | 3 | 0.7 | 31000 | 70 | 1 | 22900 | 1100 |
| DCL-8520-34 | Φ8.5*20 | 3 | 1.6 | 20500 | 40 | 1 | 12500 | 760 |
| DCL-8520-42 | Φ8.5*20 | 3 | 0.48 | 41000 | 150 | 1 | 31800 | 1550 |
| DCL-8520-45 | Φ8.5*20 | 3 | 0.4 | 42500 | 170 | 1 | 33700 | 1680 |
| DCL-8520-17 | Φ8.5*20 | 3 | 0.55 | 36500 | 130 | 1 | 27500 | 1280 |
| DCL-8520-55 | Φ8.5*20 | 3.7 | 0.75 | 36000 | 75 | 1 | 26000 | 4400 |
| DCL-8520-65 | Φ8.5*20 | 3.7 | 0.65 | 42000 | 280 | 1 | 25000 | 3400 |
| DCL-8520-75 | Φ8.5*20 | 7.4 | 0.65 | 56000 | 460 | 1 | 49000 | 5600 |

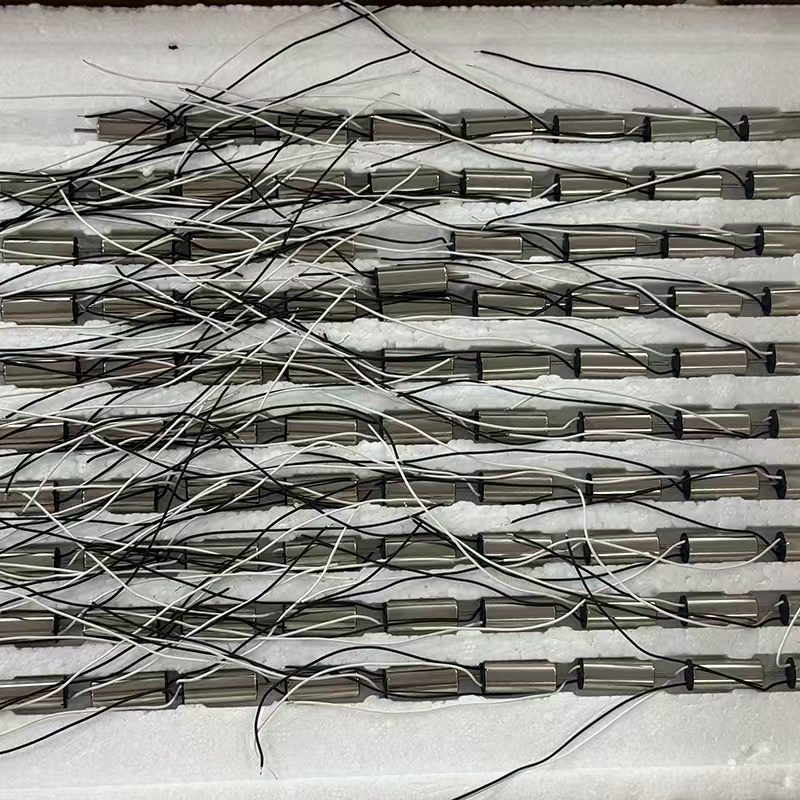

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Frequently Asked Questions
What are the main applications for the 8520 coreless motor?
The 8520 coreless motor is primarily designed for high-speed applications such as remote control toys, aircraft, and mini drones.
Can I customize the motor shaft and connectors?

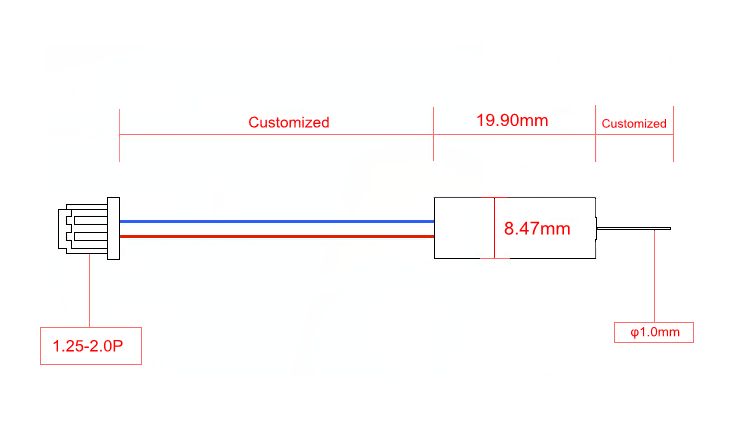

Yes, we offer customization for shaft diameters (0.8mm, 1.0mm, 1.2mm), shaft lengths, and specific wire connectors to meet your project requirements.
What is the voltage range supported by these motors?
Our 8520 motors support a DC voltage range from 3V to 9V, with specific models optimized for 3.7V and 7.4V.
What type of bearings do these motors use?
These motors utilize high-quality oil bearings to ensure smooth rotation and durability for mini drone applications.
What is the maximum speed these motors can reach?
The speed can be customized between 15,000 and 80,000 rpm depending on the specific model and voltage input.
Are the materials environmentally friendly?
Yes, we provide professional and environmentally friendly packaging and utilize high-quality components for all motor builds.
