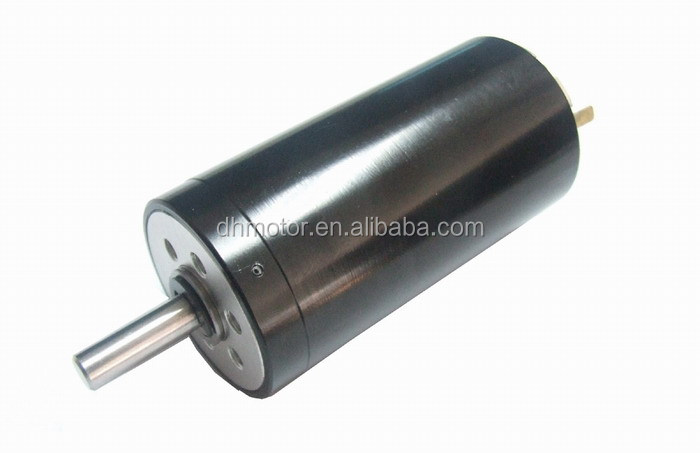

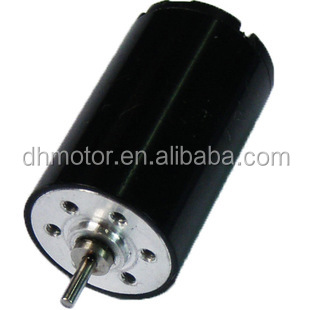

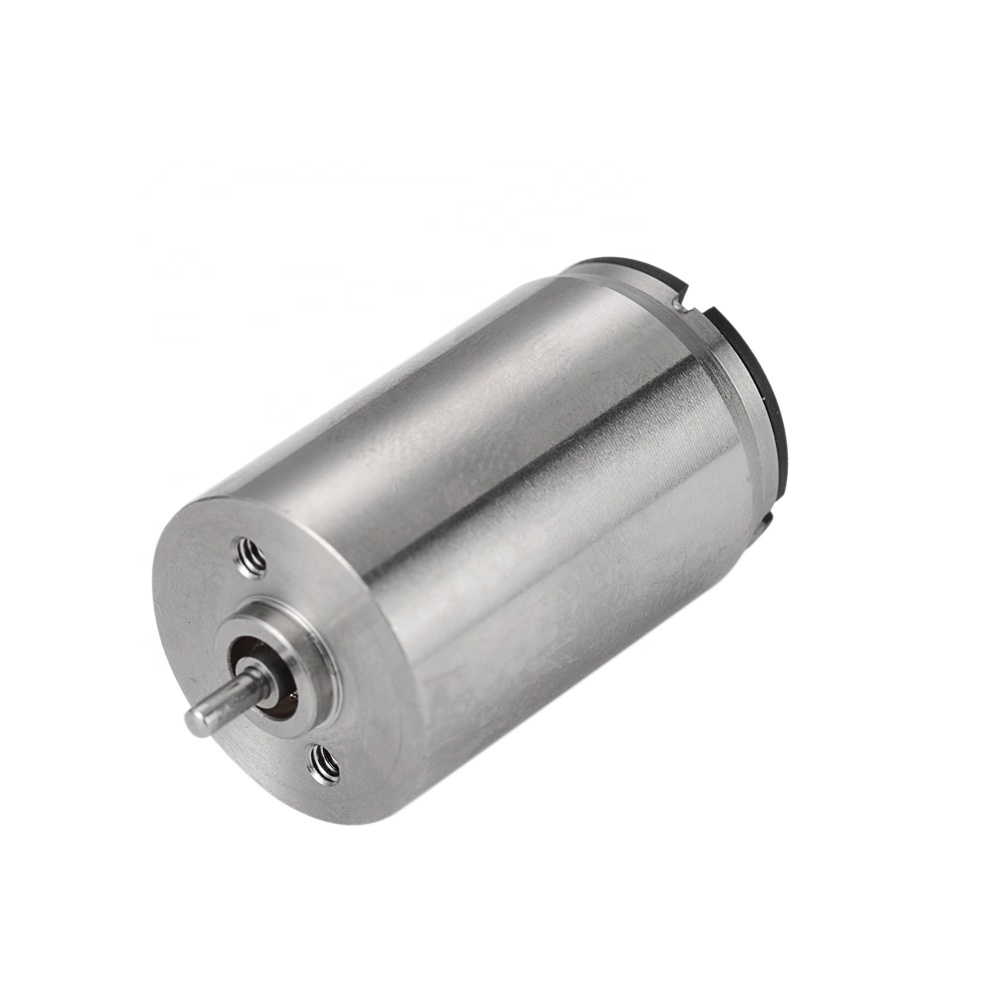

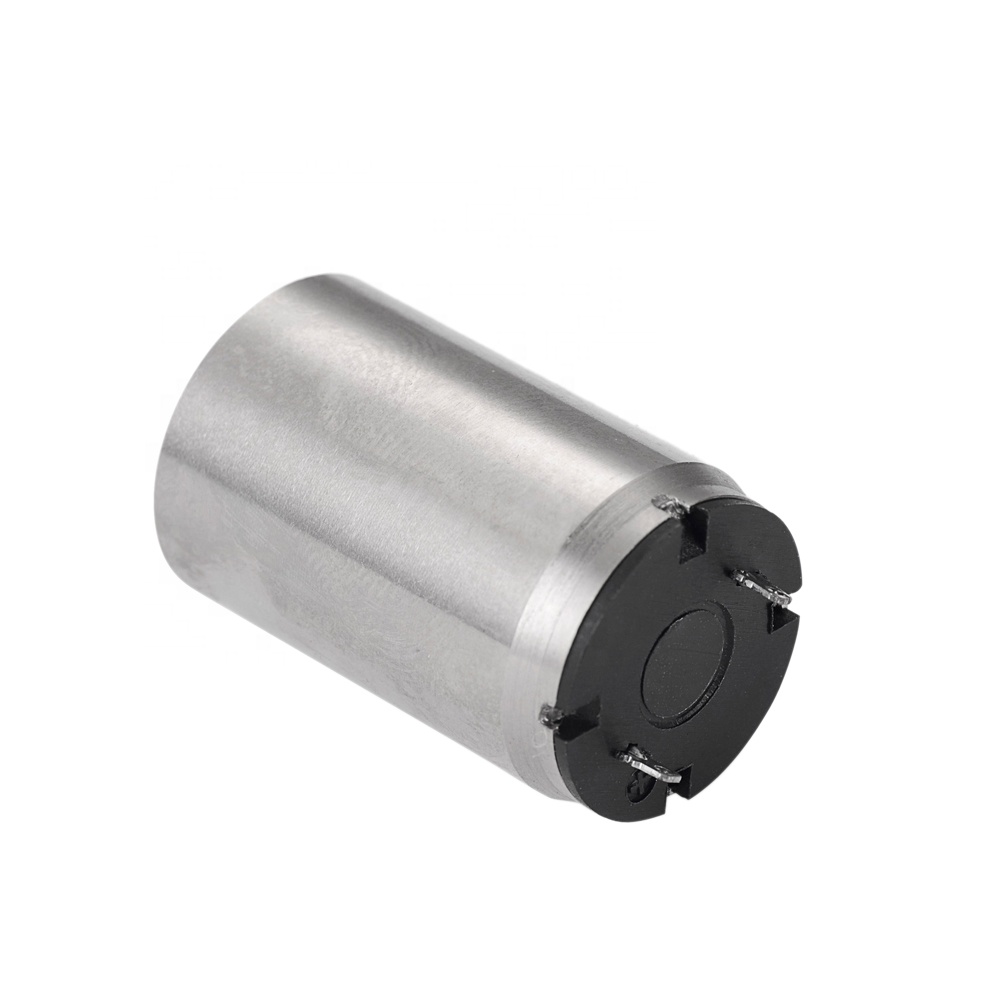

12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
1 / 4
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor

12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor

Send Inquiry

Product Description

Coreless Motor Overview
Product Specifications

This high-speed series includes 12mm, 16mm, 17mm, 20mm, 22mm, 24mm, and 30mm BLDC coreless motors (6V/12V) designed for high-performance applications.

  • NMB Ball Bearing
  • Nd-Fe-B Magnet
  • High Efficiency
  • High Power Density

16mm Coreless DC Motor Technical Data:

Product nameCoreless motor
UsageFan, Home Appliance
TypeMicro Motor
Torque23mNm
ConstructionPermanent Magnet
CommutationBrushless
Protect FeatureDrip-proof
Speed (RPM)22000rpm no load
Continuous Current (A)0.64A no load
Output Power13W
Voltage (V)12V
EfficiencyIE 1
Rated load speed19500rpm
Rated load torque2.6 mNm
Starting torque23 mNm
Motor Length36±0.5mm
Shaft Dia2.0mm
ApplicationToys, Medical Equipment

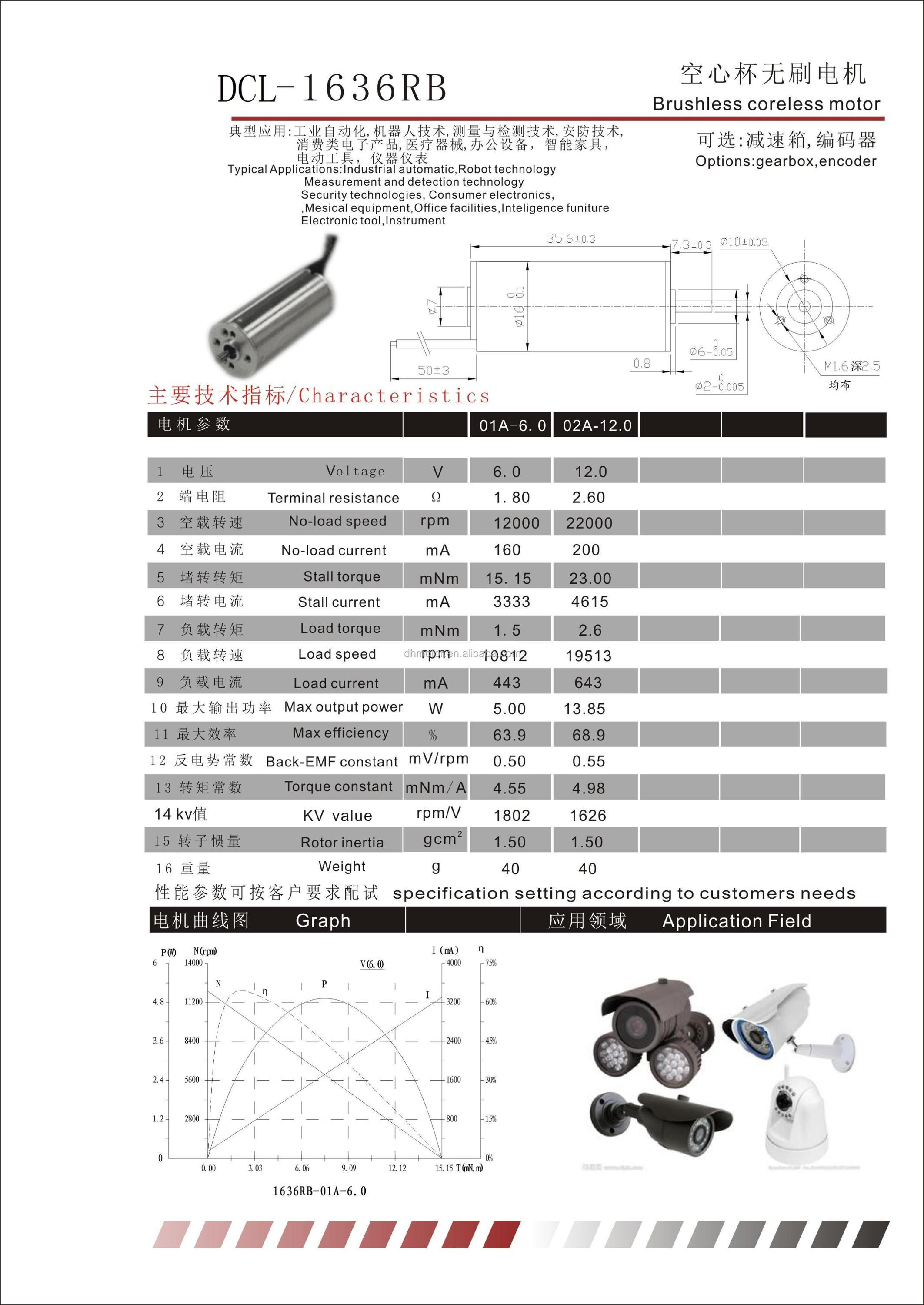

Detailed Dimensions

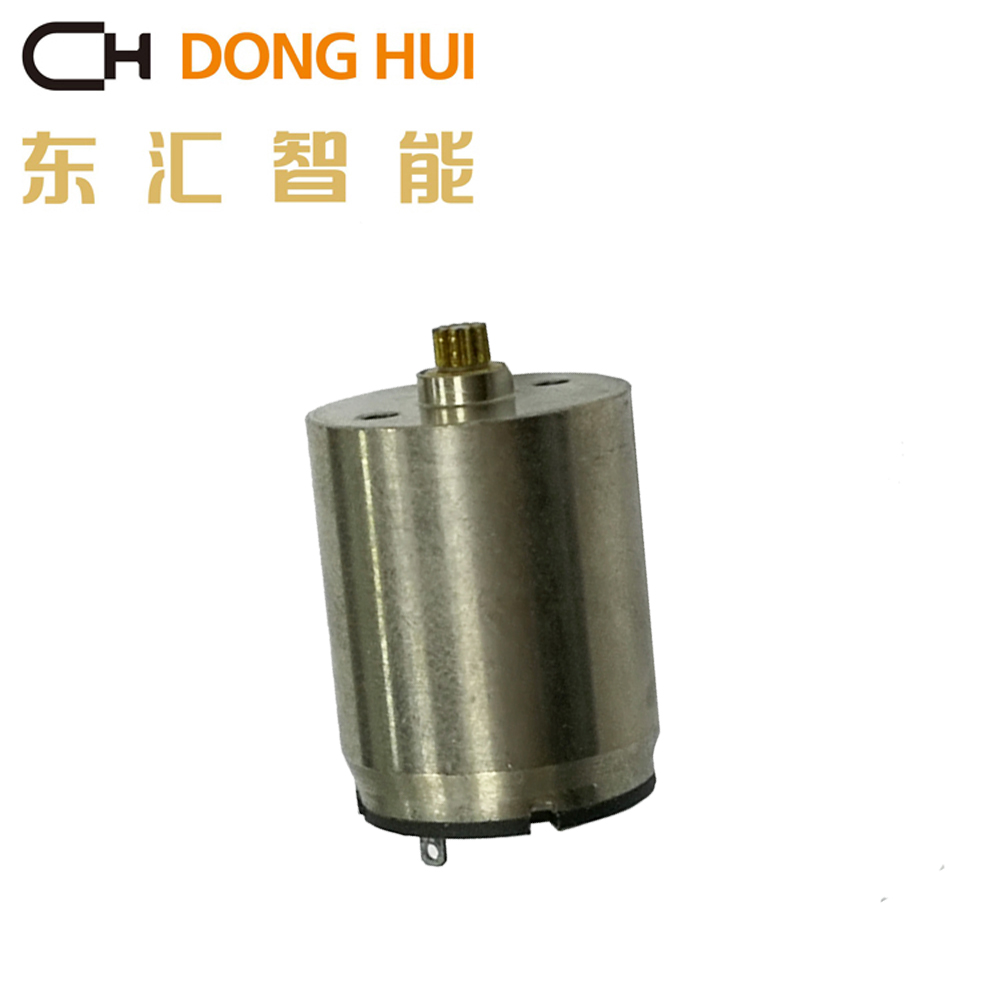

Coreless Motor View 1

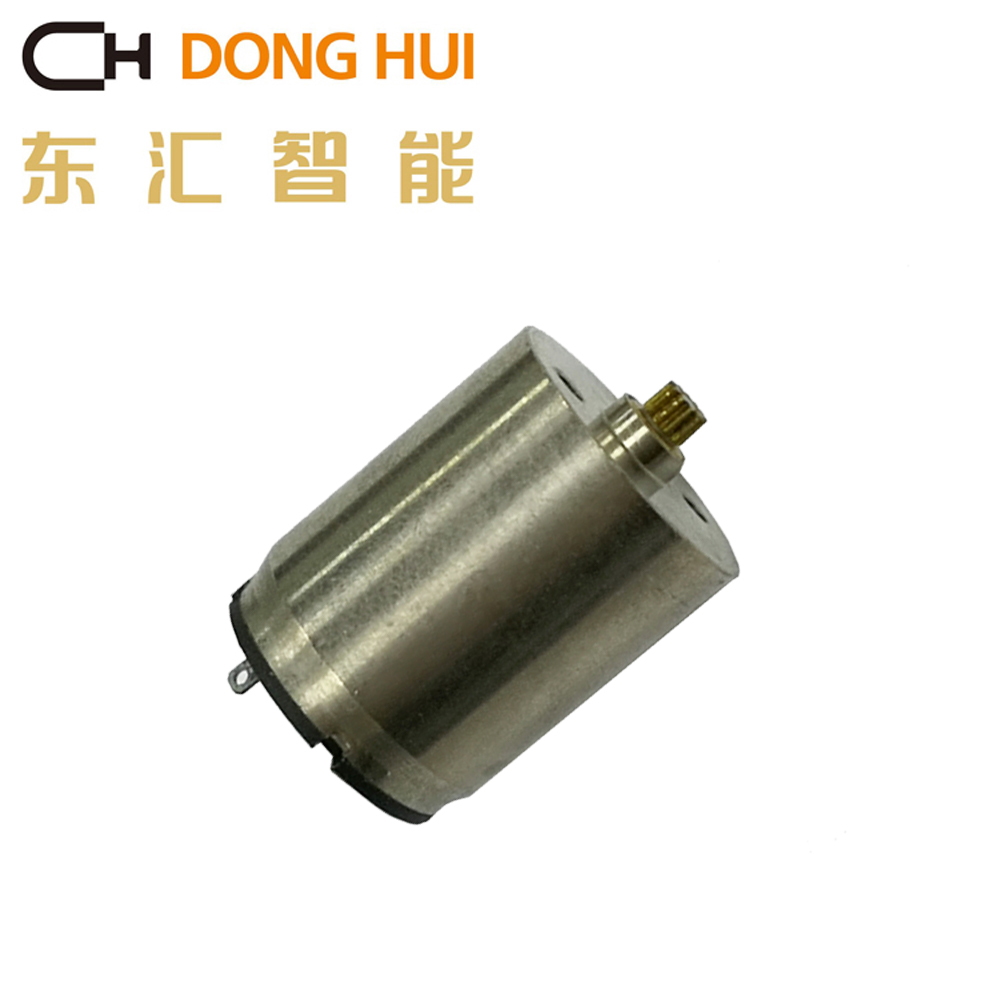

Coreless Motor View 2

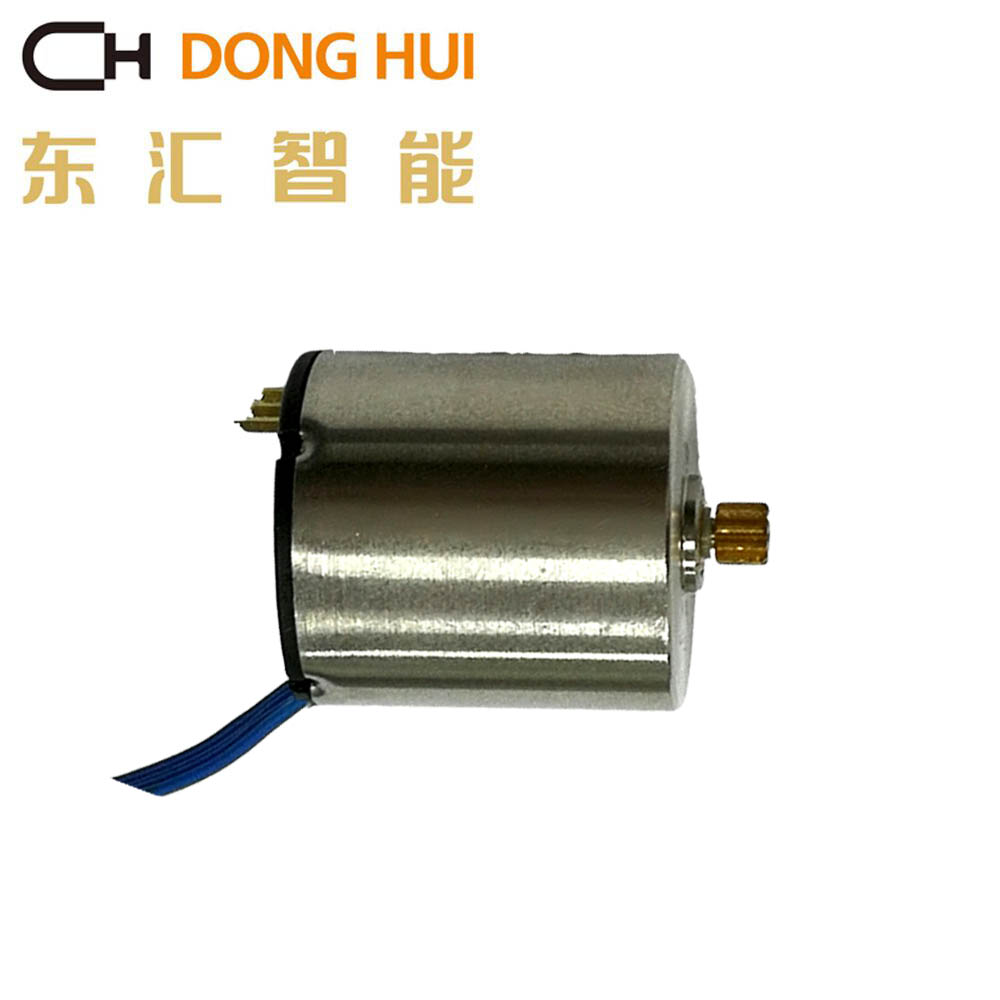

Coreless Motor View 3

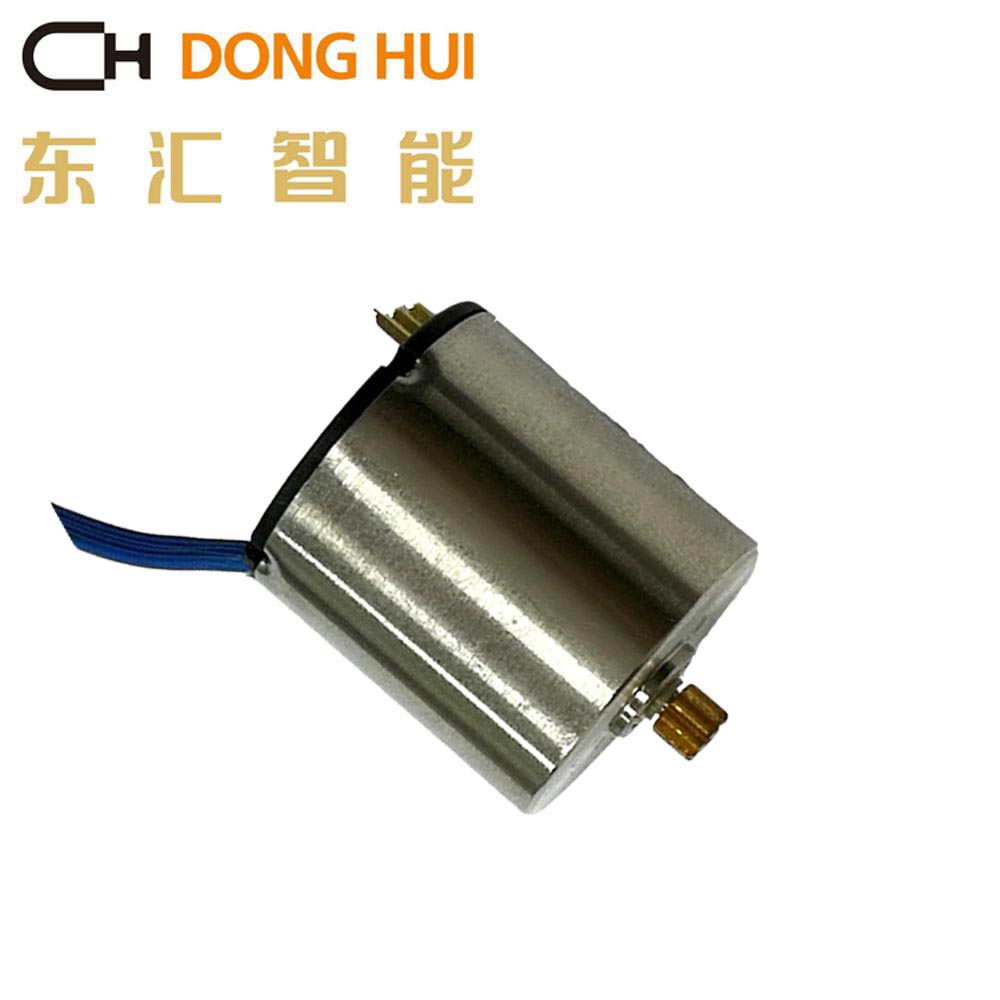

Coreless Motor View 4
Packaging & Shipping
Packaging: Export standard packing; customizable according to customer's request.
Delivery: 15 days for samples, 25-30 days for batch orders.
Our Services
Our Professional Services
Production Facility
Production Line 1
Production Line 2
Production Line 3
Frequently Asked Questions
Q1: What are your main products?
Answer: We specialize in Dia 10~52mm DC Micro Motors, Gear Motors, Auto DC motors, Brush and Brushless DC motors, Vibration motors, and more.
Q2: What are the main applications of your micro DC motors?
Answer: Our motors are widely used in Home Appliances, Office Equipment, Health-care devices, Automation industry, Banking systems (ATMs/Vending), and Electronic tools.
Q3: Do you offer customization for motor specifications?
Answer: Yes, we have a strong engineering team that can customize shafts, voltage, speed, and other technical parameters to meet your requirements.
Q4: What information is needed to place an order?
Answer: Please provide the required voltage, speed, torque, and overall physical dimension constraints for your application.
Q5: What is the typical lead time for orders?
Answer: Generally, samples take about 15 days, while batch production typically requires 25-30 days depending on the quantity.
Q6: What if I am unsure about the specific motor data I need?
Answer: Simply contact our sales team. We will guide you through the selection process and help find the best solution for your project.
