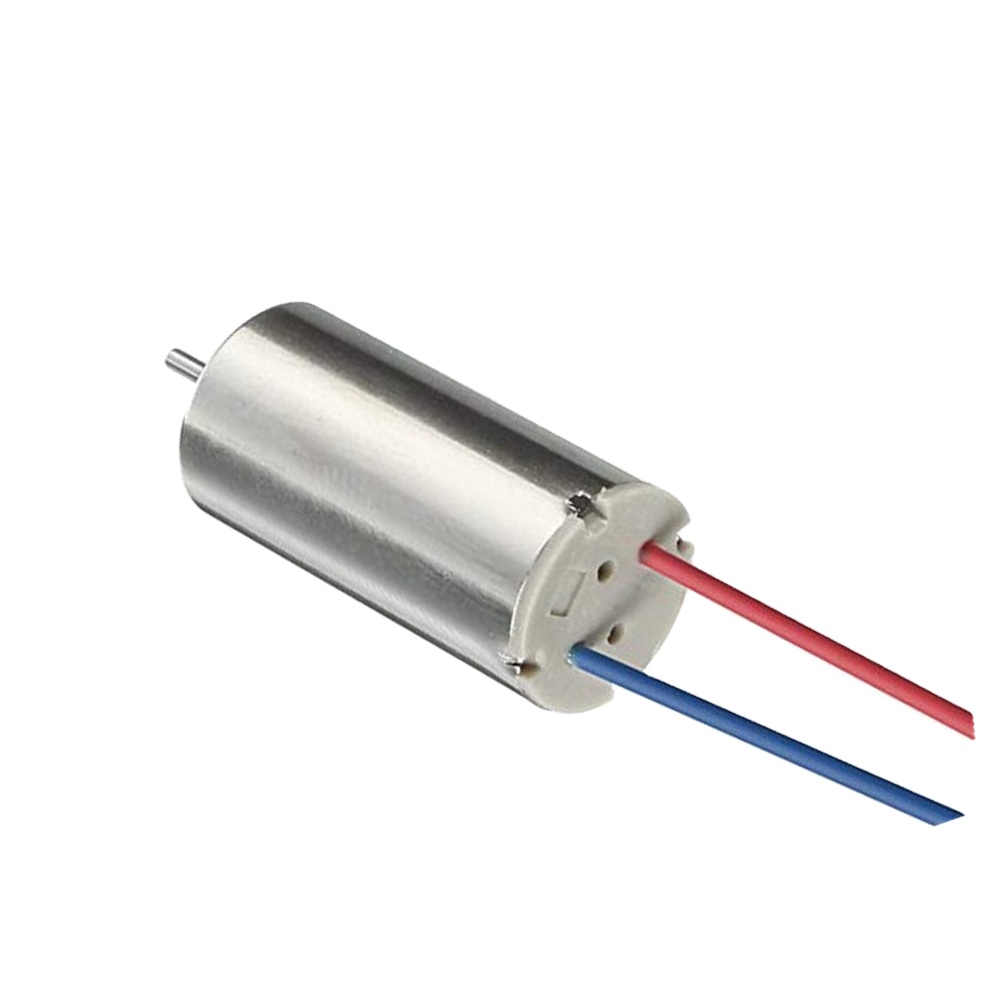

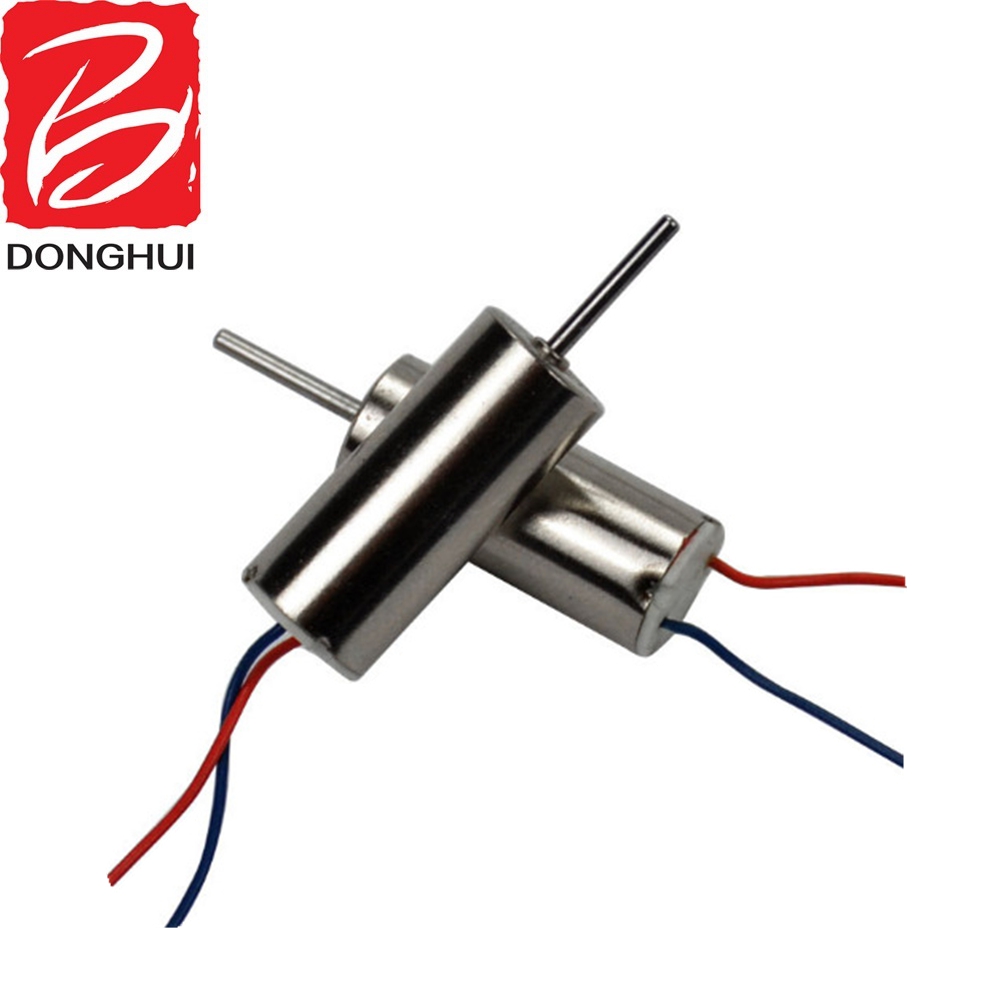

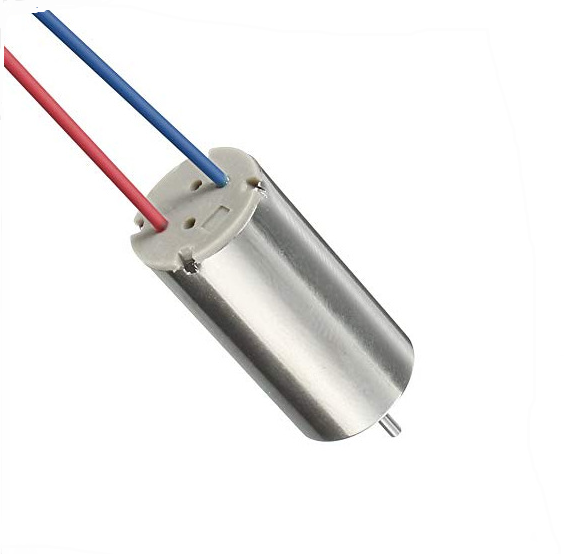

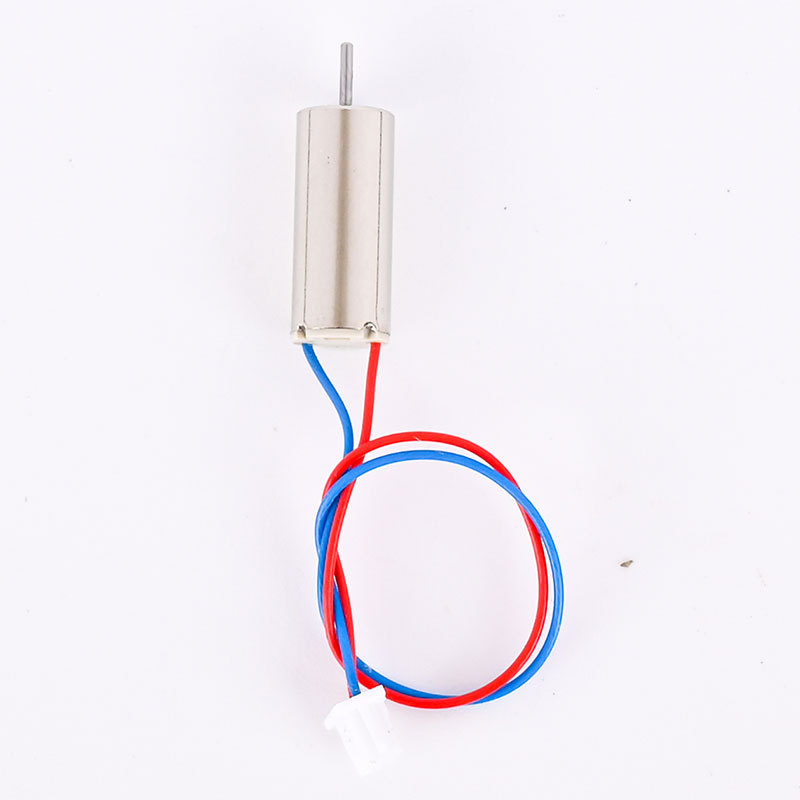

DCL-0716 7mm 3.7v Mini Drone Motor
⚙️ Product Specifications

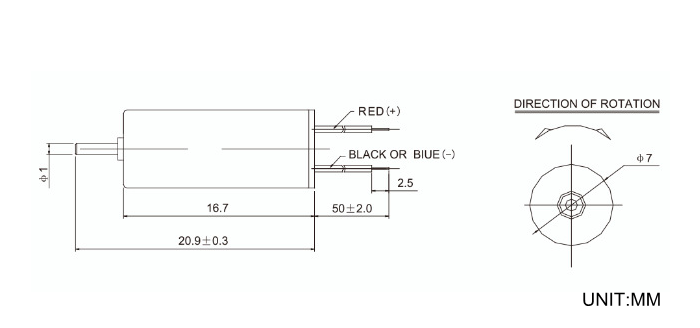

| Size |
D7mm * L16mm |
| Voltage Options |
1.5V, 3V, 3.7V, 4.5V |
| Unload Speed |
8,000 - 50,000 rpm |
| Torque |
≤ 0.8 mNm |
| Stall Current |
≤ 1 A |
| Efficiency |
85% |
| Applications |
Aeromodel, Personal Care, Massager, Beauty Equipment |
🛠️ Customization Available: Motor voltage, speed, current, torque, screw length, and shaft length can be fully customized to your requirements.
| Model |
Voltage |
No-load |
At Max Efficiency |
Stall |
| Range(V) |
Nominal(V) |
Speed(RPM) |
Current(A) |
Speed(RPM) |
Current(A) |
Torque(g.cm) |
Output(W) |
Current(A) |
Torque(g.cm) |
| DCL-0716-13230 |
1.2-2.4 |
1.5 |
21000 |
0.056 |
15430 |
0.15 |
0.7 |
0.11 |
0.43 |
2.53 |
| DCL-0716-11340 |
2.4-4.5 |
3 |
23000 |
0.027 |
17390 |
0.08 |
0.7 |
0.38 |
0.26 |
2.96 |
| DCL-0716-09450 |
1.5-4.2 |
3.7 |
50000 |
0.075 |
40000 |
1.5 |
13 |
2 |
4.4 |
36 |
❓ Frequently Asked Questions
What are the primary uses for the DCL-0716 motor?
This 7mm mini motor is designed for high-performance applications including aeromodels (drones), personal care products, massagers, and beauty equipment.
Can I customize the motor's technical parameters?
Yes, we offer customization for voltage, speed, current, torque, and even physical dimensions like screw and shaft length.
What is the maximum speed this motor can reach?
Depending on the model and voltage configuration, the DCL-0716 can achieve an unload speed of up to 50,000 RPM.
What is the efficiency rating of this mini motor?
The motor is highly efficient, with a maximum efficiency rating of approximately 85%.
What voltages are supported?
The standard operating range covers 1.5V, 3V, 3.7V, and 4.5V, making it compatible with various battery-powered systems.
Is the stall current safe for small electronics?
The stall current is kept at or below 1A for standard models, ensuring it is suitable for miniature electronic circuits.
