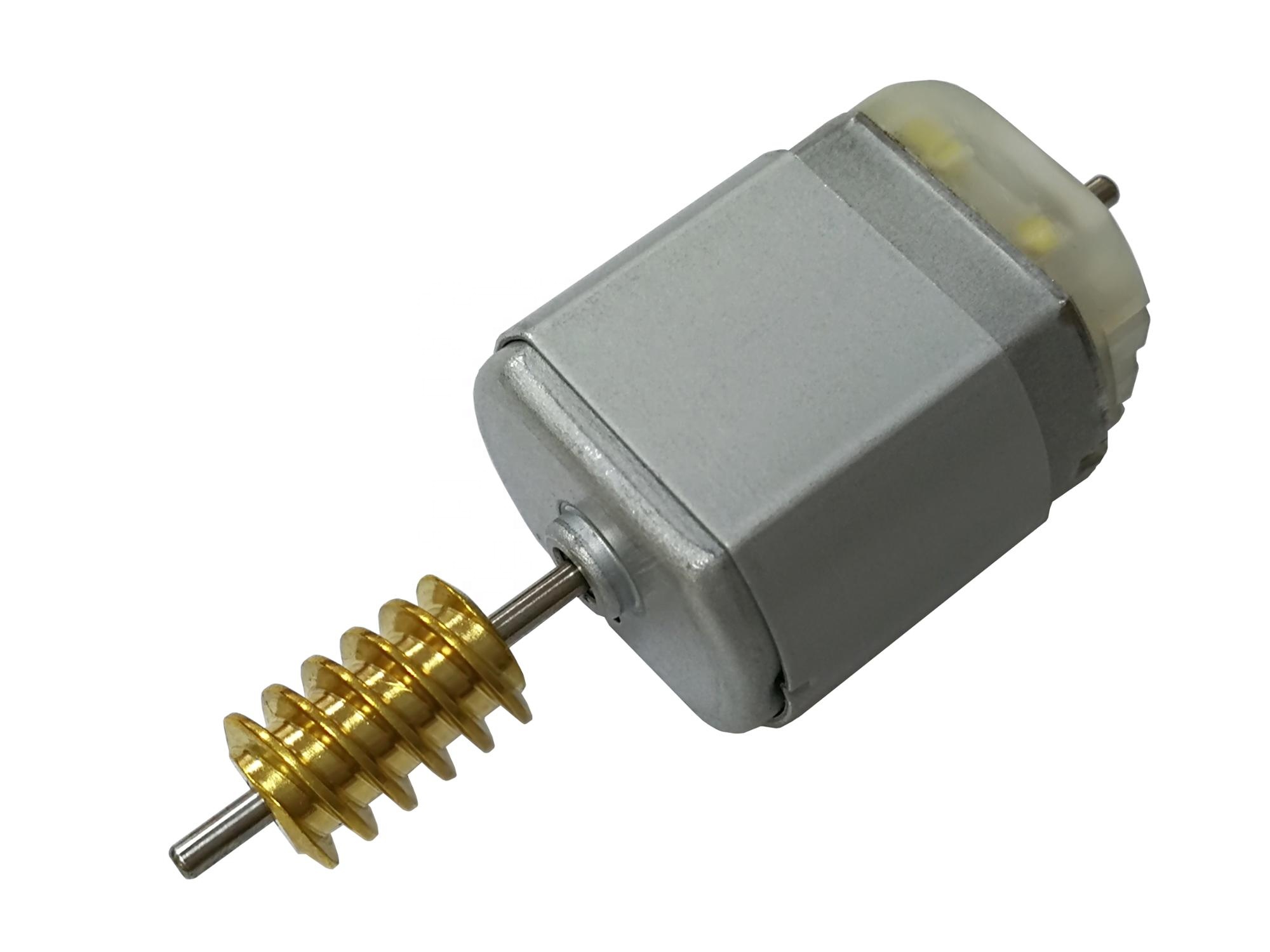

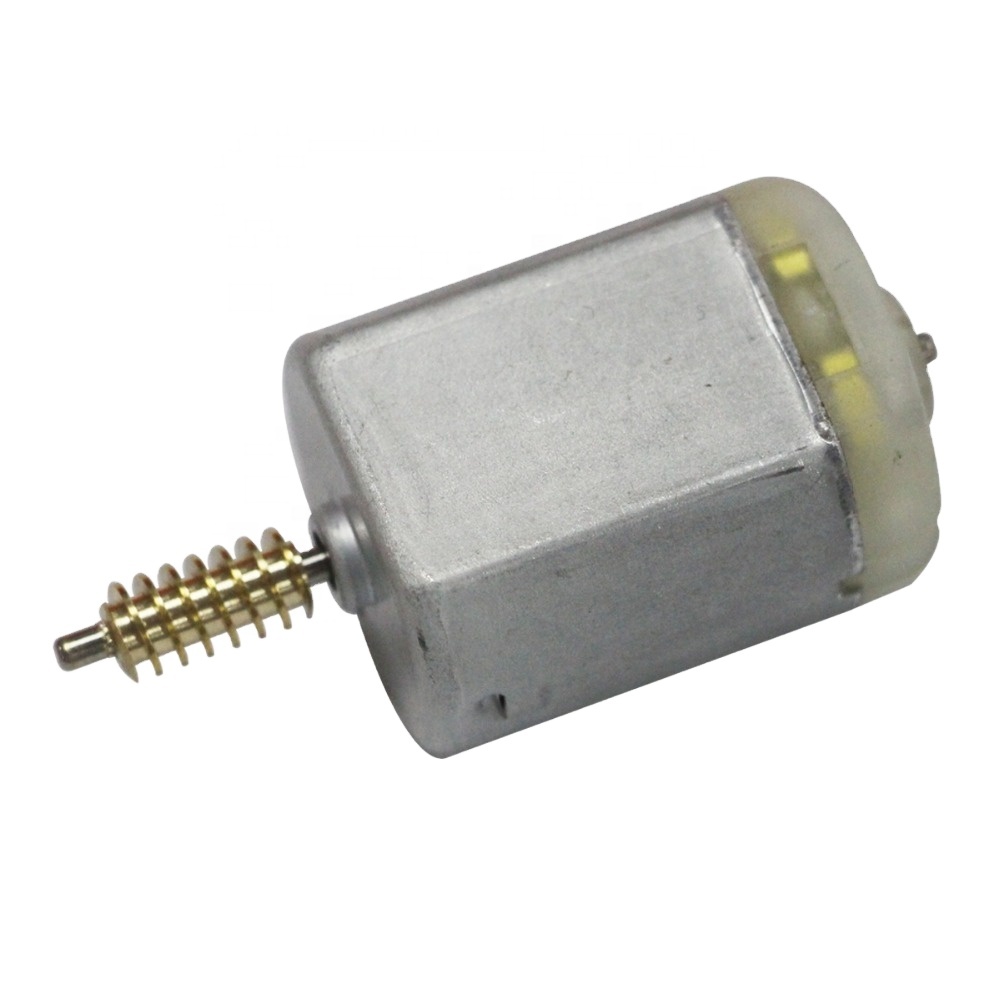

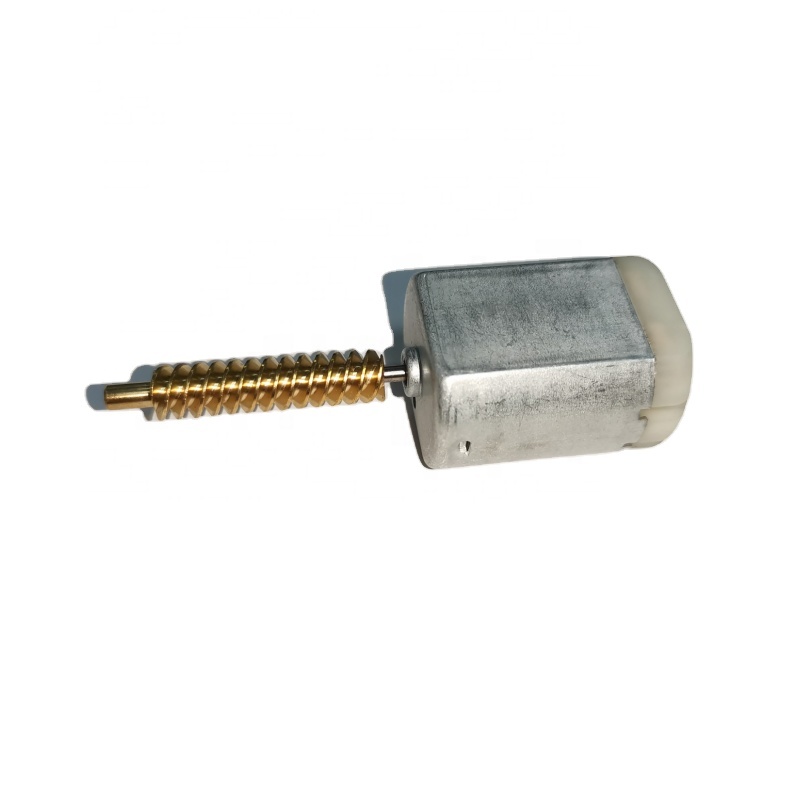

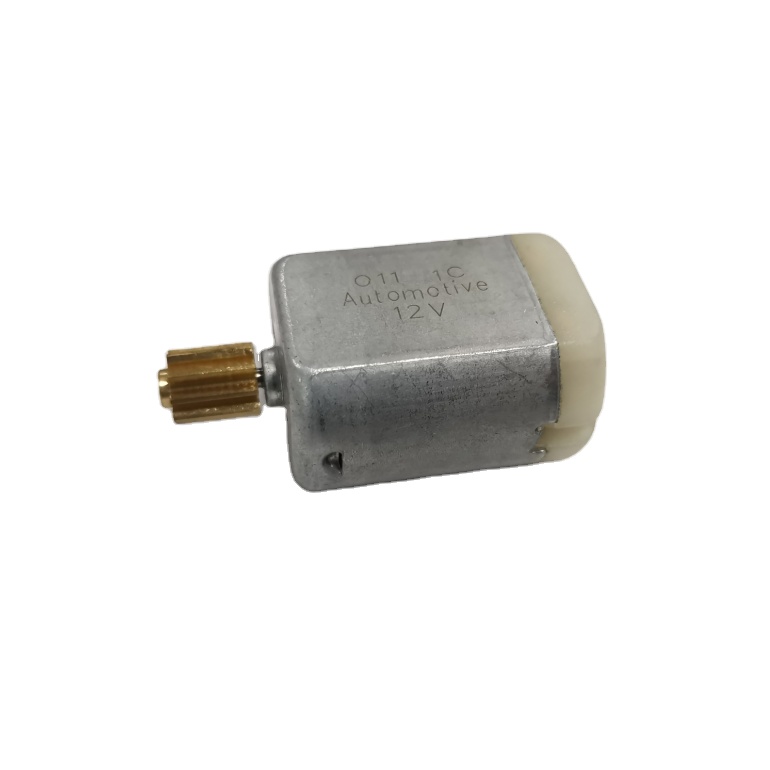

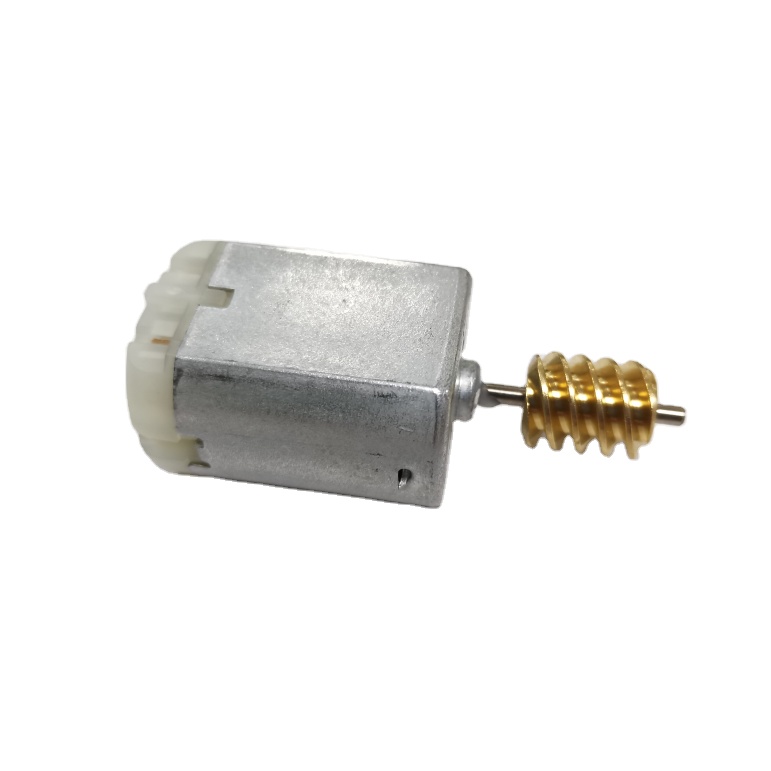

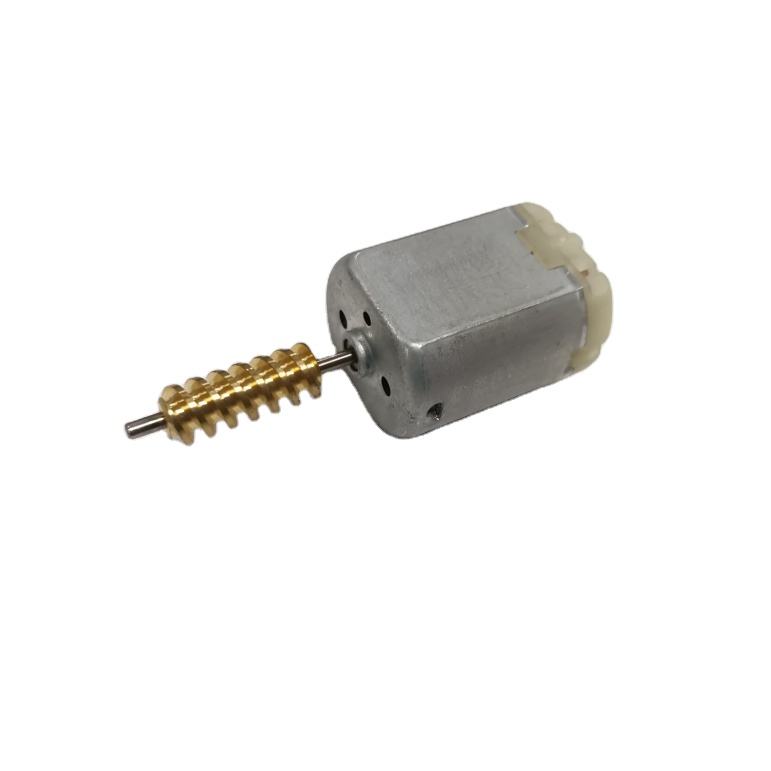

FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile
FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile
FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile
FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile
FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile
1 / 5
FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile
FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile
FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile
FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile
FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile

FC-280SC-20150 12V 12500RPM Car Door Lock DC Motor Custom Worm Gear Motor FC-280SC Motor for Automibile

Send Inquiry

Product Description

■ Product Description
■ Technical Specifications
Product Name 12V Worm Gear DC Motor For Door Lock Actuator
Model Number FC-280SC-20150
Type Worm Gear Motor For Automobile
Construction Permanent Magnet
Commutation Brush

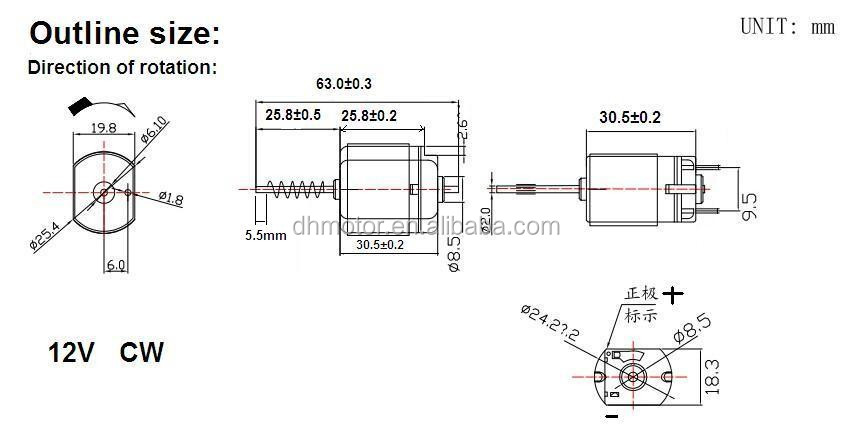

Size Diam 24mm * W 18.3mm * L 30.5
Shaft Length Customized as request
Worm Gear Customized as request
Voltage Nominal 12V
Speed (Max Efficiency) 10310rpm
Current (Max Efficiency) 0.56A
Torque (Max Efficiency) 42.2g.cm
Output Power (Max Efficiency) 4.47W
Stall Torque 335g.cm

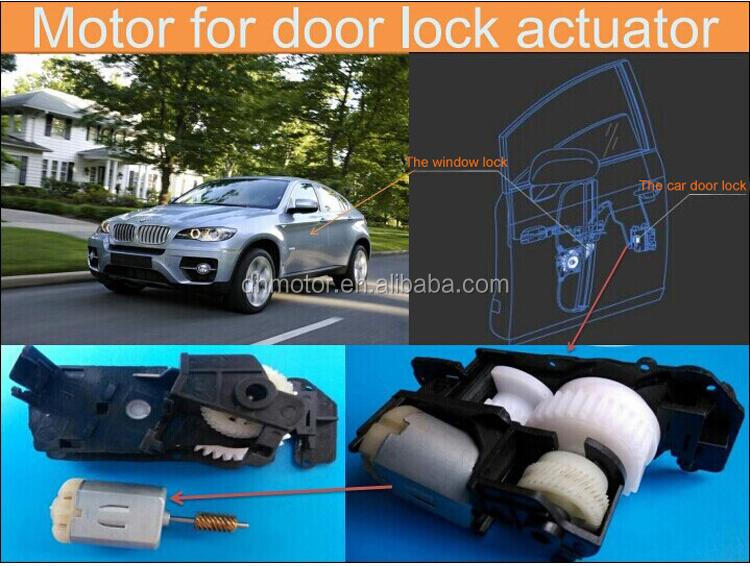

Typical Application For Retractable Rearview Mirror, Door Lock Actuator, etc.
■ Company Profile
■ Frequently Asked Questions
Q1: Are you a trading company or manufacturer? A: We are a manufacturer with over 15 years’ experience in the industry.
Q2: What are your main products? A: Our range includes Dia10-60mm DC motors, DC gear motors, brushless DC motors, planetary gear motors, high voltage DC motors, and coreless motors.
Q3: What are the main applications of your products? A: Our products are widely used in aviation, tools, medical equipment, robotics, automation, security doors, DMS, and various other fields.
Q4: Do you accept OEM/ODM? A: We accept ODM. Our R&D team consists of six experienced engineers who can customize products based on your specific needs.
Q5: What information is needed for a customized order? A: Please provide the required voltage, speed, torque, and overall dimensions for the application.
Q6: How long is the delivery time? A: Sample orders typically take 5-10 working days, while bulk orders take between 15-25 working days.
