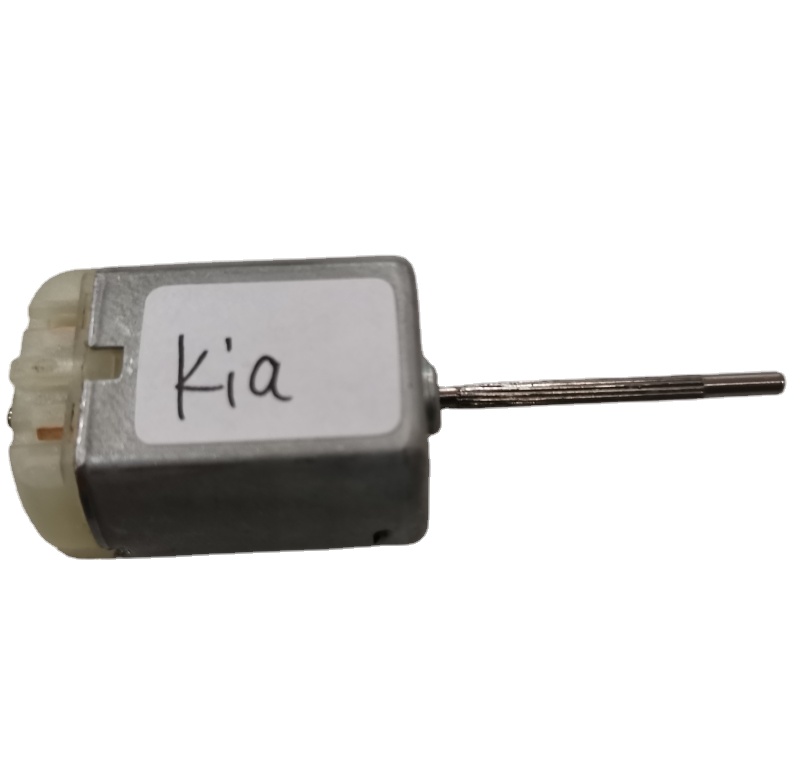

Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
1 / 5
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock

Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock

Send Inquiry

Product Description

Product Description
Quick Details
Place of Origin: Guangdong China (Mainland) Model Number: FC 280
Usage: Car, Scanner Certification: ROHS
Type: Micro Motor Torque: 48G.CM
Construction: Permanent Magnet Commutation: Brush
Protect Feature: Closed Speed(RPM): 12500rpm (At No load Speed)
Continuous Current(A): 0.1-5A Output Power: 1-6W
Voltage(V): 12V Efficiency: IE 1
Bearing: Oil-impregnated bearing End Cap: Plastic End Cap
Stator and Slots: 2-Pole stator and 3-Slot armature Brush Type: Carbon brushes
Rotation: Reversible Status: TBD
Specifications & Features
12v dc mini motor fc 280
12V FC 280 Micro DC Motor
  • ROHS Certification compliance for environmental safety
  • Permanent Magnet construction for reliable performance
  • Durable Plastic End Cap design
  • Low noise operation and long service life
  • Application: Ideal for Door lock Actuators and Automotive Products
Product Gallery

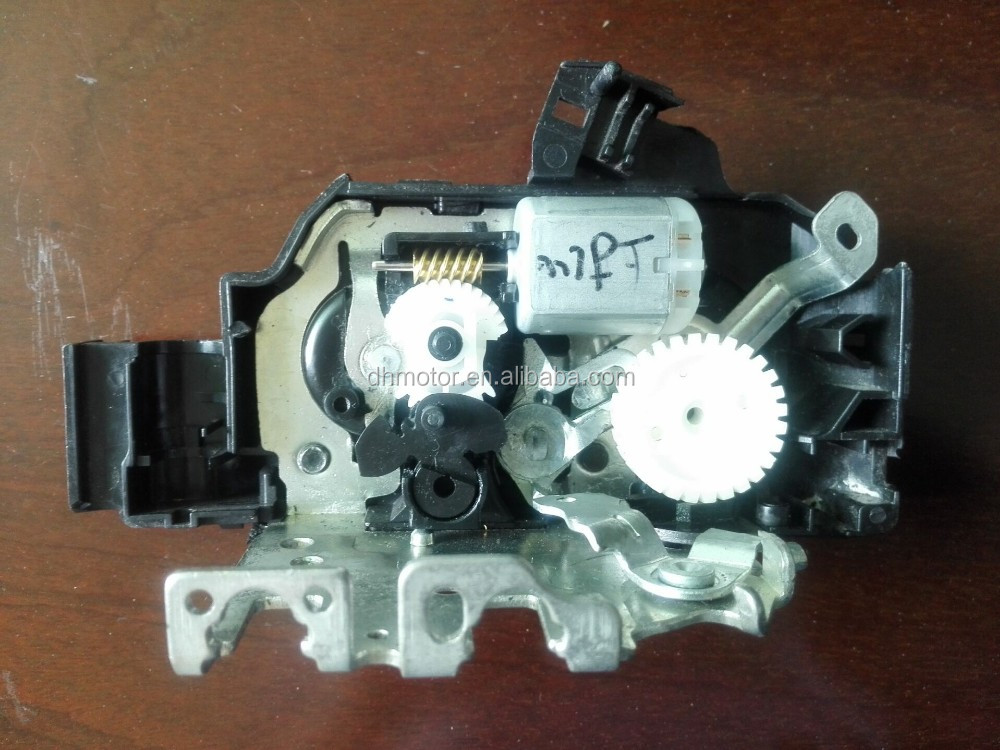

Motor View 1

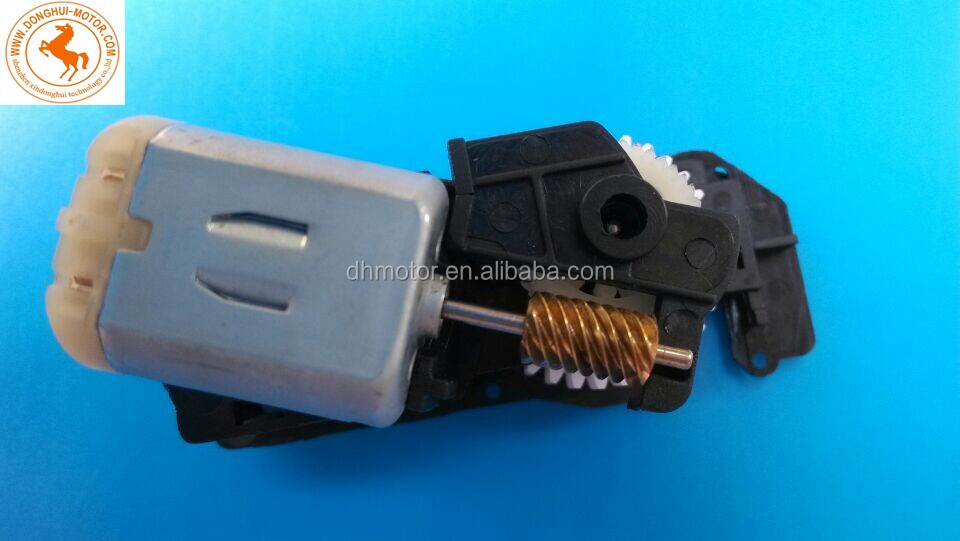

Motor View 2
Technical Outline Drawing
Outline Drawing and basic parameters
Packaging & Shipping
Packaging Details: 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail: Within 30 days
Product Capability
Capability 1
Capability 2

Since being established in 2003, the focus has been on the development and production of micro motors across four major series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. These products are widely utilized in various sectors:

  • Consumer electronics and electric toys
  • Household appliances and office automation
  • Medical equipment and power tools
  • Automotive applications and Audio/Visual equipment
  • DC Voltage range: 1.5V - 42V (AC rectify available for 100V-240V)
  • Speed range: 1 RPM - 30,000 RPM
  • Stall torque: 1g.cm - 30kg.cm
Frequently Asked Questions
Q1: What are the primary applications for the FC 280 motor? A: The FC 280 micro motor is specifically designed for automotive products, most notably as a door lock actuator, but it is also suitable for scanners and other precision instruments.
Q2: What is the standard operating voltage for this motor? A: The standard voltage is 12V DC, making it perfectly compatible with automotive electrical systems.
Q3: Does the motor support reversible rotation? A: Yes, the motor features a reversible rotation design, which is essential for lock/unlock functions in automotive actuators.
Q4: What type of brushes and bearings are used? A: The motor utilizes high-quality carbon brushes and oil-impregnated bearings to ensure low noise and a long operational lifespan.
Q5: Is the product environmentally certified? A: Yes, the FC 280 motor holds ROHS certification, ensuring it meets international environmental standards.
Q6: What is the typical lead time for a bulk order? A: Typical delivery for bulk orders (e.g., 500PCS per carton) is within 30 days after order confirmation.
